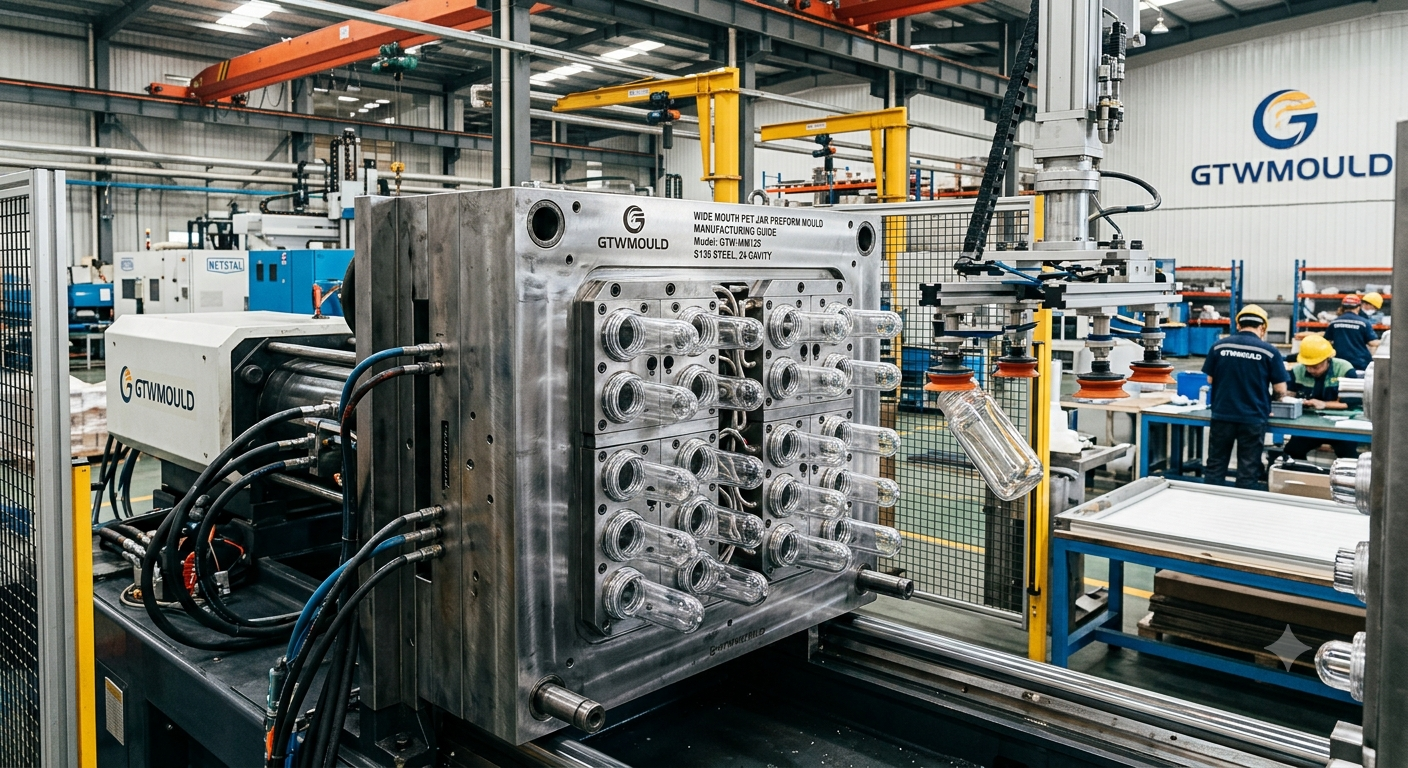

Wide Mouth PET Jar Preform Mould Manufacturing Guide
A Deep Technical Engineering Analysis on High-Precision Wide-Mouth Tooling Solutions by GTWMOULD
Introduction: The Engineering Shift to Wide-Mouth PET Packaging
The global packaging industry is experiencing a significant shift as food, personal care, and pharmaceutical brands replace traditional glass jars with wide-mouth PET (Polyethylene Terephthalate) containers. Jars with neck diameters ranging from 38mm to over 120mm offer clear advantages: they are lightweight, shatterproof, highly transparent, and fully recyclable. However, manufacturing wide-mouth preforms introduces distinct thermodynamic and rheological challenges that differ substantially from standard narrow-neck beverage preform production.
As a premier global specialist in high-precision PET injection tooling, GTWMOULD has engineered advanced mold solutions specifically for these demanding applications. This technical guide delivers a deep dive into the engineering principles, material selection, thermal dynamics, and mechanical configurations required to manufacture high-yield, premium-quality wide-mouth PET jar preforms.
1. Rheological Design Challenges: Managing Massive Melt Volume
Wide-mouth preforms typically possess large diameters, thin walls, and high shot weights. Distributing the highly viscous PET melt uniformly into a large-circumference cavity requires precise hot runner configuration and gate design.
Large-Flow Hot Runner Manifold Optimization
Standard runner diameters can restrict the massive volume of melt needed for large jars, causing excessive shear stress and material degradation. GTWMOULD resolves this through custom-engineered, large-bore hot runner manifolds:
- Balanced Flow Paths: Utilizing advanced finite element analysis (FEA) and mold flow simulation, we optimize the runner diameters and branching geometries. This ensures that the shear rate is kept within safe limits, preventing thermal degradation and keeping Acetaldehyde (AA) levels minimal.
- Heavy-Duty Pneumatic Valve Gates: To handle large injection volumes without leaving cosmetic defects, we integrate oversized, pneumatically controlled valve gates. The valve pin mechanically seals the gate flush with the preform base, delivering a clean gate profile that prevents downstream blow-molding failures.
2. Thermal Dynamics: Advanced Cooling for Wide-Diameter Profiles
The cooling phase dictates over 65% of the injection molding cycle time. Because wide-mouth preforms have a significantly larger surface area and often vary in thickness between the heavy neck thread and the thin body wall, maintaining a uniform cooling rate is highly complex.
| Critical Cooling Zone | Thermal Challenge | GTWMOULD Engineering Solution | Resulting Performance Benefit |
|---|---|---|---|
| Oversized Thread (Neck Ring) | Massive steel mass traps heat, leading to thread shrinkage and warp. | Press-fitted Beryllium-Copper (BeCu) inserts with direct-contact cooling channels. | Instantaneous thread solidification; strict thread dimensional stability. |
| Large-Diameter Core | Heat builds up inside the core tip, causing internal preform crystallization. | High-velocity, multi-stage internal water bubbler/baffler system. | Uniform heat extraction from the bottom up; eliminates hazing/crystallization. |
| Outer Cavity Insert | Uneven thermal dissipation across large cylindrical surface area. | High-pitch spiral-wound cooling channels wrapping around the entire cavity. | Consistent cooling profile, enabling fast cycle times and low molded-in stress. |
3. Mechanical Precision: Preventing Eccentricity in Large Spans
With large-diameter preforms, even a fraction of a millimeter of core misalignment can cause severe wall-thickness eccentricity. This uneven thickness causes catastrophic blow-outs during the subsequent stretch blow molding process.
Multi-Stage Self-Locking Alignment System
To secure absolute concentricity across all cavities, GTWMOULD utilizes an advanced **triple-taper centering and self-locking mechanism**:
- Independent Core-to-Cavity Locking: Instead of relying solely on the main mold base alignment, each cavity stack features its own independent taper lock. This restricts lateral movement of the core during high-pressure injection phases.
- Sub-Micron Tolerances: All critical locking surfaces are ground to tolerances within:
$$\Delta \le 0.02 \text{ mm}$$
This guarantees that wall-thickness eccentricity is kept strictly under 0.05mm, providing an exceptionally stable preform for high-speed stretch blowing.
4. Material Science and Durability for High-Volume Run Cycles
Wide-mouth jar molds operate under high pressures and clamping forces. Component longevity is paramount to achieving a low Total Cost of Ownership (TCO).
- High-Wear Tool Steel Selection: We utilize premium Swedish S136 stainless steel for the core, cavity, and neck ring inserts. Through vacuum heat treatment, these components reach a hardness of $48\text{--}52 \text{ HRC}$, offering outstanding corrosion resistance against PET off-gassing and mechanical wear.
- Friction-Reducing Surface Coatings: Sliding components, such as guide pillars, wear plates, and neck split slides, are treated with Diamond-Like Carbon (DLC) or Titanium Nitride (TiN) coatings. These coatings permit reliable high-speed operation with minimal or no lubrication, eliminating any risk of preform contamination.
- Corrosion-Proof Mold Frame: The main mold plates are manufactured from pre-hardened AISI 420 stainless steel. This prevents corrosion in the cooling channels and on the plate faces, which is especially critical when running high-volume chilled water in humid production halls.
Conclusion: Partnering with GTWMOULD for Advanced Jar Solutions
Manufacturing high-quality wide-mouth PET jar preforms demands robust structural alignment, specialized large-flow hot runner technology, and aggressive, highly targeted thermal management. **GTWMOULD** translates decades of specialized PET tooling experience into reliable, high-output production assets that minimize cycle times and maximize yield.
Contact the engineering experts at GTWMOULD to optimize your wide-mouth PET packaging lines with custom-tailored preform mold solutions built for longevity, speed, and absolute precision.
