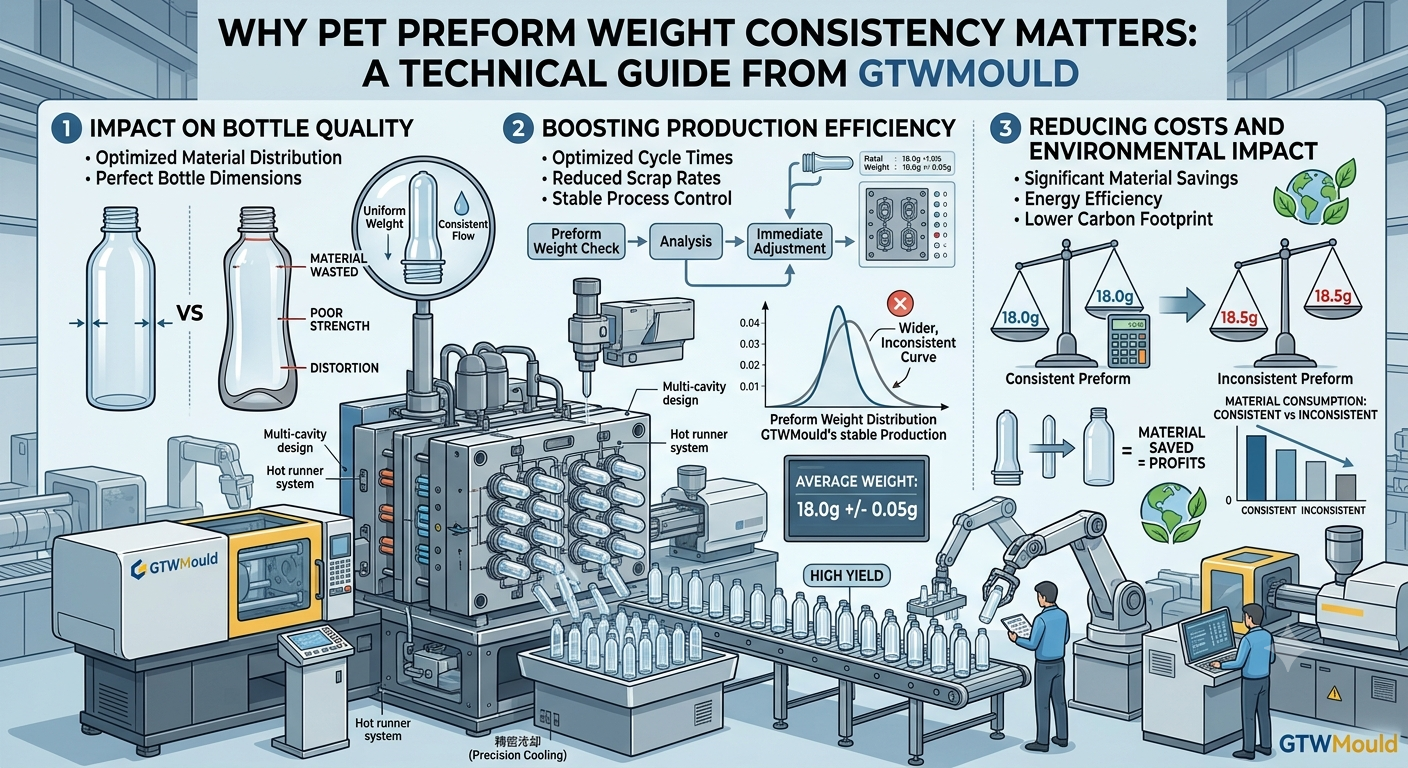

Introduction: The Financial and Structural Impact of Preform Weight Variance

In high-speed, multi-cavitation PET injection molding, weight consistency across every single drop is the true benchmark of tooling precision. Even a minute shot-to-shot or cavity-to-cavity variance of $\pm 0.1 \text{ grams}$ translates into massive financial losses and operational instabilities when scaled over millions of annual cycles. Uncontrolled weight fluctuations directly destabilize downstream stretch blow molding, causing uneven material distribution, wall thinning, and structural container failures.

As a leading global specialist in high-precision injection mold engineering, GTWMOULD manufactures advanced preform tooling engineered to deliver absolute volumetric repeatability. This technical analysis explores the thermodynamic, mechanical, and rheological principles behind Why PET Preform Weight Consistency Matters and how high-precision mold engineering guarantees long-term process stability.

1. Downstream Impact: How Weight Fluctuation Ruins Stretch Blow Molding

A PET preform is a precisely engineered thermal performative precursor. During the stretch blow molding process, the preform is reheated in infrared ovens where its wall thickness dictates thermal absorption rates. When preform weights vary across cavities, the reheating and stretching behavior becomes unpredictable.

The Ripple Effect of Volumetric Instability

• Thermal Inconsistency: Heavier preforms absorb less core heat across their thicker cross-sections, resulting in cold spots that resist stretching and cause base blowouts or un-stretched material accumulation.
• Lightweighting Failures: In modern lightweight beverage containers, structural rigidity depends on precise resin distribution. Weight variations strip away safety margins, leading to top-load failure, paneling, or bursting during carbonated filling.
• Material Waste and Cost Escalation: To compensate for tooling instability, converters often over-engineer preform weights, wasting tons of raw PET resin annually across continuous high-cavitation production lines.

2. Rheological Control: Hot Runner Manifold Balancing for Uniform Filling

Weight discrepancies across cavities stem primarily from unequal melt distribution, thermal gradients, and shear stress variations within the hot runner manifold. Achieving absolute shot consistency requires identical pressure drop and thermal exposure across every injection drop.

3. Sub-Micron Mechanical Alignment: Preventing Volumetric Core Shift

Even with a perfectly balanced hot runner system, weight consistency is compromised if the core shifts relative to the cavity insert under high injection pressures ($1000\text{--}1500 \text{ bar}$). Core movement creates uneven wall thickness, altering the internal volume and mass distribution of the preform.

Triple-Taper Self-Locking Component Stacks

To eliminate mechanical deflection and core displacement, GTWMOULD utilizes a proprietary triple-taper self-locking alignment design across every individual cavity stack:

• Independent Cavity Interlocking: Each cavity is isolated and locked mechanically with its own precision taper interface, preventing cumulative plate deflection from affecting core concentricity.
• Sub-Micron Machining Tolerances: Critical alignment surfaces are ground to tolerances within:
  $$\Delta \le 0.015 \text{ mm}$$
  This keeps total preform wall-thickness variation strictly under 0.03mm, locking in exact volumetric capacity and weight consistency across all cavities.

4. Advanced Metallurgy and Thermal Stability for Million-Cycle Precision

Maintaining weight consistency over years of continuous operation requires tooling components that resist thermal expansion fatigue, abrasive polymer wear, and structural oxidation.

• Swedish S136 Stainless Steel: All active molding parts (cores, cavities, neck splits) are crafted from vacuum-hardened Swedish S136 tool steel ($48\text{--}52 \text{ HRC}$), providing extreme wear resistance and dimensional stability under high cycle fatigue.
• Beryllium-Copper (BeCu) Thermal Cooling: High-conductivity BeCu inserts in the neck splits and gate zones rapidly dissipate heat up to ten times faster than steel, eliminating localized thermal expansion that alters preform volume during continuous high-speed cycles.
• Corrosion-Proof AISI 420 Frame: Stainless steel mold base plates prevent rust formation inside internal chilled water lines, ensuring consistent cooling performance and shot-to-shot weight stability year after year.

Conclusion: Partnering with China's Premier Preform Tooling Expert

Understanding **Why PET Preform Weight Consistency Matters** highlights the necessity of investing in high-precision, robust injection tooling. **GTWMOULD** merges sub-micron mechanical centering, FEA-balanced valve gate hot runners, and hyper-conductive thermal management to deliver preform molds that guarantee absolute volumetric repeatability, minimal scrap rates, and maximized resin economy.

Partner with GTWMOULD to optimize your high-speed bottling and packaging lines with preform tooling engineered for supreme precision, durability, and processing efficiency.
