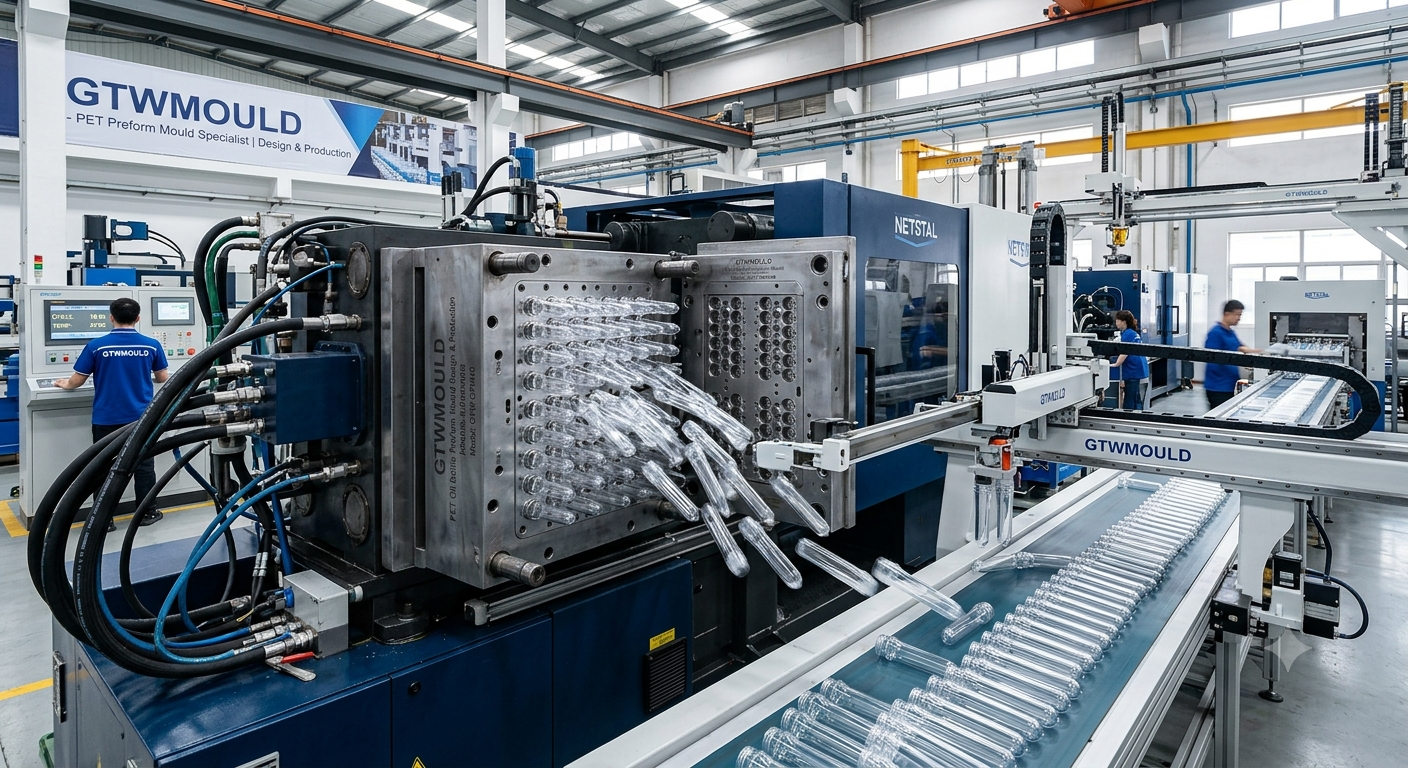

PET Oil Bottle Preform Mould Design and Production
A Deep Technical Engineering Analysis on Heavy-Weight, High-Clarity Tooling Solutions by GTWMOULD
Introduction: The Complexities of Edible Oil Packaging
The edible oil packaging sector—spanning cooking oil, olive oil, and industrial lubricants—demands strict structural integrity and flawless aesthetic performance from its packaging containers. Unlike lightweight water bottles, PET oil bottles usually require large volumes (ranging from 1L to 5L or more), heavy structural weights, and integrated handle configurations. These requirements place extreme physical demands on the injection molding process.
As a global specialist in precision injection mold engineering, GTWMOULD manufactures high-performance tooling specifically designed to handle the challenges of thick-walled, heavy-weight preforms. This technical analysis explores the unique engineering principles, thermal balance strategies, and material considerations involved in premium PET Oil Bottle Preform Mould Design and Production.
1. Structural Design Challenges: Managing Thick Walls and Heavy Shot Weights
PET oil bottle preforms are characterized by thick body walls designed to provide the mechanical strength needed to hold dense, viscous oils without buckling. However, heavy walls introduce a high risk of internal core deformation during high-pressure injection cycles.
Advanced Core Concentricity and Anti-Deflection Controls
When injecting large quantities of molten PET into a deep, thick cavity, uneven melt distribution can cause the core pin to shift slightly. This minor deflection results in an uneven preform wall thickness, which leads to structural weak spots during the stretch blow molding process.
- Triple-Taper Self-Locking Mechanism: GTWMOULD utilizes a specialized triple-taper locking assembly for each individual cavity stack. The core, cavity, and neck splits lock tightly together upon mold closure to eliminate lateral movement.
- Sub-Micron Machining Tolerances: Critical alignment surfaces are finished on ultra-precision CNC centers to tolerances within:
$$\Delta \le 0.02 \text{ mm}$$
This keeps total wall-thickness eccentricity strictly under 0.05mm, guaranteeing uniform material distribution when the preform is blown into a 5-liter oil handle-container.
2. Thermal Dynamics: Preventing Thermal Crystallization and Hazing
Because PET is an amorphous polymer, slow cooling rates allow the material to organize into a crystal structure, which causes a milky white, brittle defect known as crystallization. Due to the thickness of oil preforms, rapidly extracting heat from the center of the plastic wall is a significant engineering challenge.
| Thermal Zone | Engineering Challenge | GTWMOULD Tooling Solution | Production Benefit |
|---|---|---|---|
| Thick Base / Injection Gate | Massive heat concentration at the injection point leads to gate crystallization. | Integrated Beryllium-Copper (BeCu) gate inserts coupled with localized high-velocity water circuits. | Rapid gate freezing, allowing clean mechanical cut-off and zero hazing. |
| Internal Core Body | Deep core structures retain heat, delaying cycle times and causing internal wall hazing. | Multi-stage internal cooling tubes with continuous high-volume turbulent water flow. | Rapid internal cooling that maintains absolute glass-like clarity across heavy preform walls. |
| External Cavity Wall | Large surface area requires continuous heat extraction to maintain fast cycle profiles. | Custom-profiled, spiral-wound cooling channels machined directly around the cavity insert. | Uniform external cooling profile that minimizes molded-in residual stresses. |
3. Advanced Hot Runner Configuration for Heavy Flow Volumes
Moving a large volume of molten PET resin into multiple heavy cavities requires a hot runner system that manages high volume without overheating the resin, which can generate harmful Acetaldehyde (AA).
Pneumatic Valve Gate Systems with High-Flow Manifolds
GTWMOULD integrates custom-engineered, large-bore **pneumatic valve gate hot runner systems** into our oil preform molds:
- Balanced Flow Channel Sizing: Natural balanced flow path geometries ensure identical pressure drops and transit times for the polymer melt moving to every single cavity, preventing short shots or flash.
- Clean Mechanical Cut-Off: The valve pins physically shut off the gate at the conclusion of the injection cycle. This prevents tailing or stringing, creating a flat, clean bottom profile that accommodates the base cups or ribs of large edible oil bottles.
- Low-Shear Geometry: Highly polished internal runner walls minimize shear stress, keeping AA generation safely within strict food-contact safety standards.
4. Premium Material Selection for High Clamping Durability
Heavy-duty oil preform molds operate under intense injection pressures and long cooling cycles, requiring ultra-stable, robust mold bases and inserts.
- Swedish S136 Tool Steel: All core, cavity, and neck ring inserts are manufactured from genuine, vacuum-heat-treated Swedish S136 stainless steel ($48\text{--}52 \text{ HRC}$). This provides extreme resistance against wear and the corrosive off-gases generated by PET resins.
- Corrosion-Proof Mold Frame: The main structural plates are machined from premium pre-hardened AISI 420 stainless steel to prevent rust formation inside the complex chilled water cooling channels.
- Low-Friction Wear Coatings: Sliding elements are treated with Titanium Nitride (TiN) or Diamond-Like Carbon (DLC) coatings, ensuring smooth mechanical movements without requiring external oil lubrication, keeping the production area contaminant-free.
Conclusion: Partnering with China's Premier Preform Mold Experts
Efficiently managing PET Oil Bottle Preform Mould Design and Production requires balancing thick-walled cooling dynamics with high-precision core alignment. **GTWMOULD** delivers rugged, high-performance tooling solutions that resolve these challenges, helping packaging manufacturers achieve fast cycle times, absolute preform clarity, and long operational lifespans.
Partner with GTWMOULD to optimize your heavy-duty edible oil and industrial packaging lines with custom-tailored injection mold designs engineered for maximum yield and reliability.
