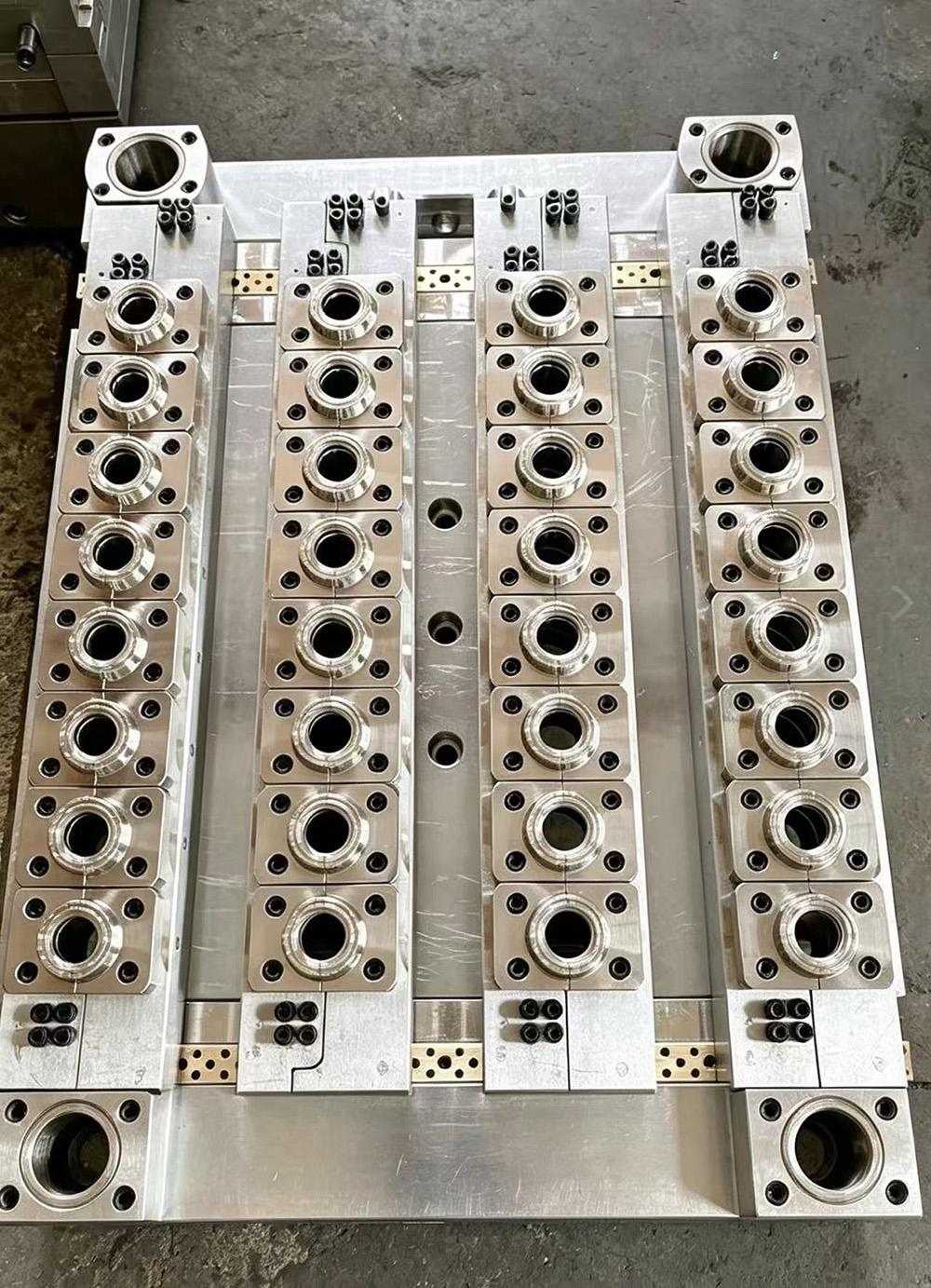

Not all PET bottles are lightweight water bottles. Large containers — from 5L table water jugs to 20L water cooler bottles, bulk edible oil containers, and industrial chemical drums — require preforms that are significantly heavier, thicker, and more robust. These heavy wall preforms present unique molding challenges: longer cooling times, higher injection pressures, greater material shrinkage, and increased clamp force requirements. That is why Gutewei designs large PET preform molds for 5L to 20L containers — providing a bulk bottle preform solution with specialized heavy wall tooling engineered for large container production.
Large Container Preform Overview
| Container Volume | Typical Preform Weight | Preform Wall Thickness | Typical Application |
|---|---|---|---|
| 5L | 80–110g | 5.0–7.0mm | Table water, edible oil |
| 8L | 110–140g | 5.5–7.5mm | Bulk water, juice |
| 10L | 140–180g | 6.0–8.0mm | Water cooler, industrial |
| 15L | 180–230g | 6.5–9.0mm | Water cooler, bulk oil |
| 20L | 220–280g | 7.0–10.0mm | Industrial, water cooler |
Challenges of Large Container Preform Molding
| Challenge | Cause | Gutewei Solution |
|---|---|---|
| Longer cooling time | Thick walls retain heat | Enhanced cooling, pin cooling |
| Higher injection pressure | More material, longer flow path | Larger gates, optimized runner |
| Greater shrinkage | More material, higher mass | Increased compensation |
| Higher clamp force | Larger mold size, more pressure | Heavy duty construction |
| Thick wall uniformity | Harder to cool evenly | Conformal cooling, multi-zone |
| Gate area integrity | Thickest section, stress risk | Reinforced gate design |
| Machine compatibility | Larger molds require bigger presses | Custom interface design |
Gutewei Bulk Bottle Preform Solution: Technical Features
1. Heavy Wall Preform Design
| Design Feature | Gutewei Implementation | Benefit |
|---|---|---|
| Wall thickness distribution | Optimized for uniform cooling | Consistent bottle quality |
| Gate area reinforcement | Gradual transition, thick base | No stress cracking |
| Neck design | Reinforced for heavy contents | Prevents creep under load |
| Length/diameter ratio | Optimized for blow ratio | Proper material distribution |
| Shrinkage compensation | Increased (0.8–1.3%) | Dimensional accuracy |
2. Enhanced Cooling System
Heavy wall preforms retain heat — cooling is the biggest challenge:
| Feature | Gutewei Implementation | Benefit |
|---|---|---|
| Pin cooling | Direct at gate area (thickest) | Fastest heat removal at thickest point |
| Conformal cooling | Follows preform contour | Uniform cooling |
| Extended cooling channels | Longer circuit length | More heat removal |
| High turbulence | > 10,000 Reynolds | Maximum heat transfer |
| Extended cooling time | 20–30 seconds (for 20L preforms) | Proper solidification |
3. Heavy Duty Mold Construction
| Feature | Gutewei Heavy Duty Specification | Benefit |
|---|---|---|
| Plate thickness | Increased (30–50% thicker) | Prevents deflection |
| Guide posts | Oversized diameter, hardened | Maintains alignment |
| Core rods | Reinforced, larger diameter | Resists bending |
| Cavity blocks | Thicker wall sections | Prevents deformation |
| Ejector system | Heavy duty pins, more pins | Handles heavier preforms |
| Wear plates | Hardened, replaceable | Long service life |
4. Hot Runner Design for Large Preforms
| Feature | Gutewei Specification | Benefit |
|---|---|---|
| Channel diameter | Larger for thick flow | Reduces pressure drop |
| Gate diameter | 3.5–5.0mm (weight dependent) | Proper flow for heavy wall |
| Valve gate (option) | For clean gate finish | Zero gate vestige |
| Nozzle design | Higher flow capacity | Delivers sufficient melt |
| Shear reduction | Smooth transitions | Prevents degradation |
5. Increased Shrinkage Compensation
| Preform Weight | Typical Shrinkage | Gutewei Compensation |
|---|---|---|
| 5L (80–110g) | 0.8–1.0% | +15–20% over standard |
| 8L (110–140g) | 0.9–1.1% | +20–25% over standard |
| 10L (140–180g) | 1.0–1.2% | +25–30% over standard |
| 15L (180–230g) | 1.1–1.3% | +30–35% over standard |
| 20L (220–280g) | 1.2–1.4% | +35–40% over standard |
Heavy Wall Tooling: Performance Specifications
| Parameter | Gutewei Standard |
|---|---|
| Preform weight range | 80g – 300g |
| Container volume range | 5L – 20L |
| Wall thickness | 5.0mm – 10.0mm |
| Cavity count | 1, 2, 4, 8 (size dependent) |
| Cycle time (5L) | 18–25 seconds |
| Cycle time (20L) | 35–50 seconds |
| Weight variation | ≤ 0.30–0.40% |
| Mold life | 12–15 million cycles |
| Injection pressure capability | Up to 2,000 bar |
Cavity Count by Container Size
| Container Size | Recommended Cavities | Machine Tonnage |
|---|---|---|
| 5L | 4–8 cavities | 500–800 tons |
| 8L | 2–4 cavities | 600–900 tons |
| 10L | 2–4 cavities | 800–1,200 tons |
| 15L | 1–2 cavities | 1,000–1,500 tons |
| 20L | 1–2 cavities | 1,200–1,800 tons |
Applications for Large PET Preform Molds
| Application | Typical Volume | Preform Weight | Gutewai Feature |
|---|---|---|---|
| Table water | 5L | 80–100g | Food grade, clarity |
| Water cooler | 15L–19L | 180–220g | Handleware capability |
| Bulk edible oil | 5L–10L | 100–160g | Barrier properties |
| Bulk juice | 5L–10L | 100–150g | Hot fill capability |
| Industrial chemical | 10L–20L | 150–250g | Chemical resistance |
| Agricultural liquids | 10L–20L | 150–250g | Durability |
Why Global Manufacturers Choose Gutewei for Large Molds
| Buyer Requirement | Gutewei Solution |
|---|---|
| Mold for large containers | Specialized design for 5L–20L |
| Thick wall processing | Enhanced cooling, heavy duty construction |
| Uniform wall thickness | Conformal cooling, balanced flow |
| Long mold life in heavy service | Hardened materials, reinforced design |
| Machine compatibility | Custom interface for large presses |
| Dimensional accuracy | Increased shrinkage compensation |
Real-World Performance: 15L Water Cooler Preform Mold
| Parameter | Generic Large Mold | Gutewei Heavy Wall Mold |
|---|---|---|
| Preform weight | 195g | 195g |
| Container: 15L water cooler | Same | Same |
| Wall thickness | 6.5mm | 6.5mm |
| Cycle time | 45 seconds | 38 seconds |
| Weight variation | 0.8% | 0.35% |
| Cooling uniformity | ±4°C | ±1.5°C |
| Shrinkage compensation | Standard | Optimized (+35%) |
| Mold life | 8 million cycles | 14 million cycles |
Material and Shrinkage Considerations
PET Grade for Large Preforms
| Property | Recommendation | Why |
|---|---|---|
| IV | 0.80–0.84 dL/g | Higher strength for heavy wall |
| Crystallization rate | Standard | Process dependent |
| AA level | < 5 ppm (if beverage) | Taste protection |
Shrinkage Compensation Table
| Dimension | 5L | 10L | 15L | 20L |
|---|---|---|---|---|
| Length (axial) | +0.8% | +1.0% | +1.2% | +1.4% |
| Diameter | +0.6% | +0.8% | +1.0% | +1.2% |
| Neck OD | +0.4% | +0.5% | +0.5% | +0.6% |
| Wall thickness | +1.0% | +1.2% | +1.4% | +1.6% |
Maintenance for Large Preform Molds
| Task | Frequency | Why |
|---|---|---|
| Cooling channel inspection | Monthly | Heavy wall = more scale |
| Gate area inspection | Weekly | Thickest area, most stress |
| Guide/lube check | Weekly | Heavier mold = more wear |
| Ejector system check | Monthly | Heavier preforms = more force |
| Full inspection | Quarterly | Maintain dimensional accuracy |
Large Mold Installation Considerations
| Factor | Gutewei Recommendation |
|---|---|
| Crane/lifting equipment | Required for mold handling |
| Safety interlocks | Must be tested |
| Cooling connections | Heavy-duty hoses required |
| Clamp force verification | Ensure machine capacity |
| Alignment check | Critical for heavy molds |
Ready for Large Container Preform Tooling?
If you produce 5L to 20L containers — whether for water, edible oil, beverages, or industrial applications — you need a large PET preform mold designed specifically for heavy wall preforms. Gutewei provides bulk bottle preform solutions with specialized heavy wall tooling engineered for large container production.
Contact Gutewei today with your container specifications — volume, target preform weight, application type, and injection machine model. We will design a large preform mold optimized for your bulk container production.
