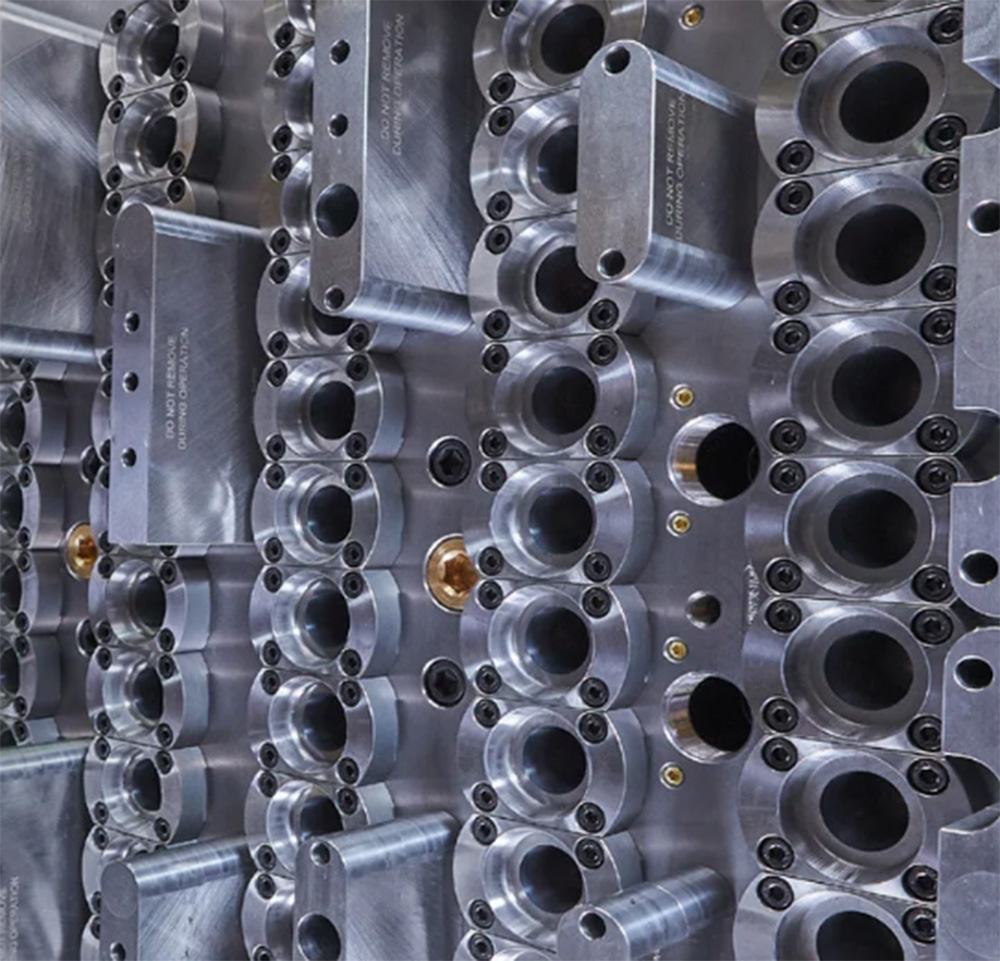

In PET preform injection molding, cooling is the bottleneck. It typically accounts for 60–70% of the total cycle time — making it the single most important factor in production efficiency. A mold with poor cooling produces preforms that take too long to solidify, waste energy, and may even have inconsistent quality. That is why Gutewei specializes in preform mold cooling system optimization — delivering cycle time reduction through efficient heat transfer mold design that maximizes your output while maintaining quality.
Why Cooling Defines Your Cycle Time
| Cycle Phase | Typical Duration | % of Total Cycle |
|---|---|---|
| Mold close + clamp | 1.0 – 1.5 sec | 10–12% |
| Injection + packing | 1.5 – 3.0 sec | 15–20% |
| Cooling (heat removal) | 5.0 – 8.0 sec | 60–70% |
| Mold open + ejection | 1.0 – 1.5 sec | 10–12% |
Every second saved in cooling adds millions of preforms per year.
How Cooling Works in a Preform Mold
Heat from the molten PET (approx. 270–290°C at injection) must be removed through three paths:
| Cooling Path | % of Heat Removed | Gutewei Optimization |
|---|---|---|
| Core pin (internal cooling) | 40–50% | Baffle design, turbulence |
| Cavity block (external cooling) | 30–40% | Conformal channels, multi-zone |
| Neck ring (neck finish cooling) | 10–20% | Dedicated circuit, precision control |
Until the preform cools to 60–80°C (ejection temperature), the mold cannot open. Gutewei efficient heat transfer mold design attacks heat removal from all three directions.
Gutewei Cooling System Optimization: Technical Features
1. Conformal Cooling Channels
Traditional preform molds use straight-drilled cooling channels that stay a fixed distance from the cavity wall. Gutewei conformal cooling follows the actual contour of the preform:
| Feature | Straight Drilled | Gutewei Conformal |
|---|---|---|
| Distance from cavity | Varies (10–25mm) | Constant (6–10mm) |
| Hot spot control | Poor | Excellent |
| Cooling uniformity | ±3–5°C | ±1.5°C |
| Cooling time reduction | Baseline | 25–35% faster |
2. High Turbulence Cooling Circuits
Smooth water flow creates an insulating boundary layer. Gutewei designs cooling circuits with:
| Feature | Gutewei Implementation | Benefit |
|---|---|---|
| Turbulence-inducing geometry | Baffles, spiral channels, dimples | Disrupts boundary layer |
| Reynolds number | > 10,000 (fully turbulent) | Maximum heat transfer |
| Heat transfer coefficient | Increased by 40–50% | Faster cooling |
| Pressure drop | Optimized for pump capacity | No excessive energy cost |
3. Multi-Zone Independent Cooling
Different preform areas cool at different rates. Gutewei molds feature independent cooling zones:
| Preform Zone | Cooling Priority | Gutewei Approach |
|---|---|---|
| Neck finish | Highest (critical for capping) | Dedicated neck ring cooling circuit |
| Shoulder | High (transition area) | Concentrated spiral cooling |
| Body | Medium (largest surface area) | Uniform conformal cooling |
| Gate / base | Highest (thickest area) | Enhanced pin cooling + baffle |
Each zone has independently adjustable flow rates and temperatures.
4. High Thermal Conductivity Materials
Gutewei uses cavity materials selected for rapid heat transfer:
| Material | Thermal Conductivity (W/m·K) | Gutewei Application |
|---|---|---|
| Beryllium copper (alloy) | 200–250 | High speed, lightweight preforms |
| S136 stainless steel | 25–30 | Standard applications |
| 2316 stainless steel | 20–25 | Durable, long life molds |
For maximum speed, Gutewei offers beryllium copper inserts in critical cooling areas.
5. Optimized Core Cooling
The core pin removes the most heat because it contacts the inside of the preform directly:
| Feature | Gutewei Implementation | Benefit |
|---|---|---|
| Baffle design | Optimized for turbulence at the tip | Maximum heat removal at thickest area |
| Core material | High thermal conductivity where needed | Faster internal cooling |
| Water flow path | No dead zones, full circulation to tip | Complete cooling coverage |
| Core tip cooling | Direct cooling at thickest section | Eliminates gate area hot spots |
Cycle Time Reduction: Performance Results
| Preform Type | Conventional Cycle | Gutewei Optimized Cycle | Time Saved | Output Increase |
|---|---|---|---|---|
| 12g water (0.33L) | 8.5 sec | 6.2 sec | 2.3 sec (27%) | +37% |
| 16g water (0.5L) | 9.5 sec | 7.0 sec | 2.5 sec (26%) | +36% |
| 24g water (1L) | 11.0 sec | 8.2 sec | 2.8 sec (25%) | +34% |
| 22g CSD (0.5L) | 12.0 sec | 9.0 sec | 3.0 sec (25%) | +33% |
| 38g oil (1.5L) | 16.0 sec | 12.0 sec | 4.0 sec (25%) | +33% |
Efficient Heat Transfer Mold: Beyond Cooling
1. Fast Hot Runner Temperature Recovery
| Feature | Gutewei Specification | Benefit |
|---|---|---|
| High response heaters | Fast ramp-up | Minimal waiting between cycles |
| Thermal insulation | Between hot runner and cooled mold base | No heat loss to cooling system |
| Balanced heat input | Consistent cavity temperature | Uniform cooling demand |
2. Optimized Ejection Temperature
| Parameter | Conventional | Gutewei Optimized |
|---|---|---|
| Ejection temperature | 65–75°C | 60–65°C (lower is better) |
| Cooling time required | Longer | Shorter |
| Post-ejection shrinkage | Higher | Lower (more stable) |
| Handling damage risk | Higher | Lower |
3. Precision Mold Alignment
| Feature | Gutewei Specification | Benefit |
|---|---|---|
| Guide posts | Hardened HRC 58, precision ground | Fast, accurate mold closing |
| Bushings | Bronze with graphite plugs | Self-lubricating, no sticking |
| Parting line | Ground to 0.02mm flatness | No flash, consistent clamping |
Cooling System Design by Preform Type
| Preform Type | Cooling Challenge | Gutewei Solution |
|---|---|---|
| Lightweight water (10–16g) | Over-cooling risk | Zoned cooling, flow reducers |
| Standard water (16–24g) | Balance speed and quality | Conformal cooling + turbulence |
| CSD (20–48g) | More material, more heat | Extended cooling, pin cooling |
| Edible oil (30–80g) | Thick wall, slow cooling | High volume circuits, extended time |
| Hot fill (20–40g) | Heat set requires controlled cooling | Two-stage cooling (hot/cold zones) |
Real-World Performance: 72-Cavity Water Preform Line Upgrade
| Parameter | Before (Standard Cooling) | After (Gutewei Optimized Cooling) |
|---|---|---|
| Preform: 0.5L water (16g) | Same | Same |
| Cavities: 72 | Same | Same |
| Cooling time | 6.5 sec | 4.5 sec |
| Total cycle time | 9.5 sec | 7.0 sec |
| Preforms/hour | 27,284 | 37,029 (+36%) |
| Annual preforms (24/7) | 239M | 324M |
| Additional preforms/year | — | 85 million |
| Energy cost per 1,000 preforms | Baseline | 25% lower |
| Gutewei mold premium payback | — | 6–9 months |
Cooling Water Requirements
| Parameter | Requirement |
|---|---|
| Water temperature | 8–12°C (chilled water recommended) |
| Flow rate per circuit | 15–25 L/min (depending on circuit) |
| Water pressure | 4–6 bar minimum |
| Water quality | Filtered, treated (no scale, no debris) |
| Chiller capacity | Sufficient for mold + machine |
Maintenance for Cooling System Performance
| Frequency | Task | Why |
|---|---|---|
| Daily | Check flow meters, verify return temperature | Ensure design flow |
| Weekly | Monitor cooling water temperature | Detect chiller issues |
| Monthly | Clean water filters | Prevent blockages |
| Quarterly | Deep clean cooling channels | Remove scale |
| Annually | Verify flow rates, check for corrosion | Maintain heat transfer |
Common Cooling Problems and Solutions
| Problem | Likely Cause | Gutewei Solution |
|---|---|---|
| Longer cycle time | Scale buildup in channels | Chemical or mechanical cleaning |
| Uneven preform cooling | Flow imbalance | Balance flow with valves |
| Hot spots on preforms | Blocked channel | Clear blockage, inspect design |
| Water leakage | Worn O-rings | Replace seals |
| Corrosion in channels | Poor water quality | Treat water, use corrosion inhibitors |
Why Global Preform Manufacturers Choose Gutewei
| Buyer Requirement | Gutewei Solution |
|---|---|
| Reduce cycle time | Optimized cooling, 25–35% faster |
| Increase output from existing machines | More preforms/hour without new machine |
| Lower energy cost per preform | Shorter cycle = less energy per part |
| Maintain quality at high speed | Uniform cooling, consistent wall thickness |
| 24/7 reliability | Robust cooling design, easy maintenance |
The Gutewei Cooling Advantage
| Feature | Standard Mold | Gutewei Optimized Cooling Mold |
|---|---|---|
| Cooling channel type | Straight drilled | Conformal + multi-zone + turbulence |
| Cooling time (% of cycle) | 65–70% | 55–60% |
| Cycle time reduction | Baseline | 25–35% faster |
| Cavity temperature variation | ±3–5°C | ±1.5°C |
| Output increase | Baseline | 30–40% more preforms |
| Energy per preform | Baseline | 20–25% lower |
| Payback period | — | Typically 6–12 months |
Ready to Reduce Your Cycle Time?
If your current preform molds are limiting your line speed with long cooling times, it is time to upgrade to preform mold cooling system optimization from Gutewei. Our efficient heat transfer mold designs deliver significant cycle time reduction — typically 25–35% — while maintaining preform quality.
Contact Gutewei today with your preform specifications — target weight, cavity count, current cycle time (if known), and injection machine model. We will provide a cooling-optimized mold solution that boosts your output and lowers your cost per preform.
