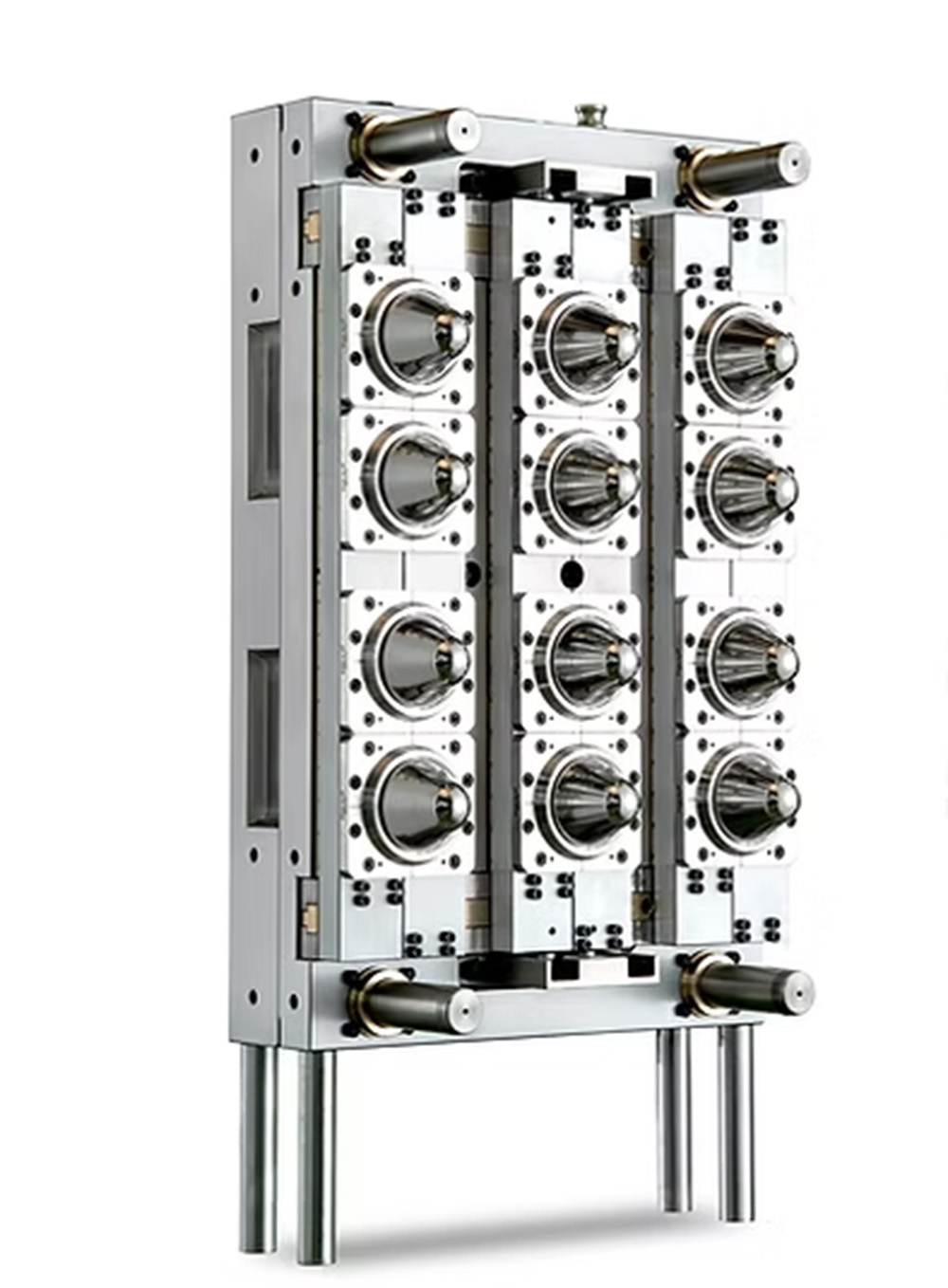

Custom PET Preform Mold, Gutewei Tailored Neck Finish Design, Flexible Preform Tooling Manufacturing
No two bottle applications are exactly the same. A 0.33L water bottle requires a different preform design than a 1.5L carbonated drink bottle. A cosmetic bottle demands a unique neck finish not found in standard catalogs. A specialty container may need an entirely custom preform geometry. That is why Gutewei specializes in custom PET preform molds — featuring tailored neck finish design and flexible preform tooling manufacturing — delivering exactly what you need, not just what is in stock.
Why Custom Preform Molds?
| Requirement | Standard Mold | Custom Mold (Gutewei) |
|---|---|---|
| Neck finish | Limited to standard options (PCO, ALCO, etc.) | Any neck finish — standard, modified, or completely custom |
| Preform weight | Fixed range | Exactly your target weight |
| Preform length | Fixed | Tailored to your bottle design |
| Wall thickness profile | Standard distribution | Optimized for your blow ratio |
| Material | Standard PET | Virgin, rPET, bio-PET, barrier layers |
| Cavity count | Pre-determined | From 1 to 144 cavities |
| Machine compatibility | May require adaptation | Designed for your specific machine |
Gutewei Tailored Neck Finish Design
The neck finish is the most critical feature of any preform — it determines capping compatibility, sealing performance, and customer satisfaction. Gutewei offers complete tailored neck finish design capabilities:
Standard Neck Finishes We Support
| Neck Finish | Typical Application | Gutewei Capability |
|---|---|---|
| PCO 1881 | Water, CSD (0.33L–2L) | Standard and reinforced versions |
| ALCO | Beverage, juice | High precision |
| 38mm / 48mm | Edible oil, wide mouth | Heavy duty construction |
| 26mm / 28mm | Small water, personal care | Compact design |
| 55mm / 63mm | Water cooler, bulk containers | Large diameter expertise |
| Custom | Any specification | Engineered to your drawing |
Custom Neck Finish Design Process
| Step | Gutewei Action | Deliverable |
|---|---|---|
| 1. Requirement gathering | Review customer drawing or sample | Design brief |
| 2. CAD modeling | 3D model of neck finish | STEP file for approval |
| 3. Capping compatibility check | Verify with customer’s cap | Compatibility report |
| 4. Mold flow simulation | Optimize filling and cooling | Simulation report |
| 5. Neck ring design | Precision machining | Hardened neck rings |
| 6. Dimensional verification | CMM inspection | Full inspection report |
Custom Neck Features We Can Engineer
| Feature | Gutewei Capability |
|---|---|
| Thread profile | Any standard or custom thread |
| Support ring | Modified thickness, diameter, or shape |
| Sealing surface | Flat, angled, or special geometry |
| Anti-counterfeit features | Custom embossing, logos, or markings |
| Color coding | Colored neck ring options |
| Crystallized neck | For hot fill applications |
Flexible Preform Tooling Manufacturing
Gutewei’s flexible preform tooling manufacturing approach means we can produce molds for virtually any preform specification:
Preform Parameter Range
| Parameter | Gutewei Capability |
|---|---|
| Preform weight | 5g – 200g+ |
| Preform length | 20mm – 250mm |
| Outside diameter | 15mm – 70mm |
| Neck finish | Any standard or custom |
| Wall thickness | 1.5mm – 9.0mm |
| Material | Virgin PET, rPET (any %), bio-PET, barrier |
Cavity Count Flexibility
| Cavity Count | Best For | Lead Time |
|---|---|---|
| 1 – 8 cavities | R&D, pilot runs, large containers | Shortest |
| 16 – 32 cavities | Medium volume, specialty products | Standard |
| 48 – 72 cavities | High volume, standard beverage | Standard |
| 96 – 144 cavities | Industrial scale, water | Extended |
Machine Compatibility Flexibility
| Machine Brand | Gutewei Custom Interface Capability |
|---|---|
| Husky | Full custom interface |
| Netstal | Precision Swiss standards |
| Engel | e-motion, victory platforms |
| Sumitomo | Japanese standards |
| Haitian / Zhafir | Growing platform |
| Any other brand | Engineered on request |
Custom PET Preform Mold: Design Process
Phase 1: Requirements Definition
| Information Needed | Why It Matters |
|---|---|
| Target bottle volume | Determines preform weight range |
| Bottle drawing or sample | Defines preform geometry |
| Neck finish specification | Critical for capping |
| Material type (PET, rPET, etc.) | Affects shrinkage and processing |
| Injection machine make/model | Ensures proper fit |
| Target output (cavities) | Determines mold size |
Phase 2: Engineering and Simulation
| Step | Gutewei Tool | Outcome |
|---|---|---|
| Preform design | 3D CAD | Optimized geometry |
| Flow simulation | Moldflow | Balanced filling, low stress |
| Cooling analysis | Thermal simulation | Uniform cooling, fast cycles |
| Structural analysis | FEA | Rigid, durable mold base |
| Neck finish verification | CMM simulation | Dimensional accuracy |
Phase 3: Manufacturing
| Component | Manufacturing Method | Gutewei Standard |
|---|---|---|
| Cores and cavities | CNC precision machining | ±0.005mm tolerance |
| Neck rings | Wire EDM + polishing | Mirror finish, precise threads |
| Hot runner manifold | 5-axis machining | Balanced flow channels |
| Mold base | Precision grinding | 0.02mm flatness |
| Cooling channels | Deep hole drilling + conformal | Optimized heat transfer |
Phase 4: Testing and Validation
| Test | Acceptance Standard |
|---|---|
| Cavity balance | ≤ 0.30% weight variation |
| Neck finish CMM | ±0.02mm of custom specification |
| Short-shot test | Uniform fill progression |
| 24-hour production run | Stable quality |
| Blow test (sample bottles) | Bottle meets specifications |
Tailored Neck Finish Design: Case Examples
Case 1: Custom Sport Cap Neck Finish
Customer requirement: A sports drink brand wanted a proprietary neck finish compatible with their unique flip-cap design — not available as a standard finish.
Gutewei solution:
Reverse-engineered customer’s cap
Designed custom neck ring geometry
Manufactured precision neck rings
Verified capping torque and sealing
Result: Perfect cap fit, zero leakage, proprietary design protected.
Case 2: Anti-Counterfeit Embossed Neck
Customer requirement: Premium water brand needed a way to distinguish authentic bottles from counterfeits.
Gutewei solution:
Embossed brand logo into neck ring
Added date code ring for production tracking
Maintained full capping compatibility
Result: Visible brand marking, easy authentication, no capping issues.
Case 3: Hot Fill Crystallized Custom Neck
Customer requirement: Juice producer needed a 43mm neck finish (non-standard) with crystallization for 92°C hot fill.
Gutewei solution:
Designed custom 43mm neck geometry
Added heated neck rings for crystallization
Optimized cooling for post-crystallization
Result: 43mm hot fill neck with 40% crystallinity, perfect sealing at temperature.
Flexible Preform Tooling Manufacturing: Examples
| Customer Requirement | Gutewei Custom Solution |
|---|---|
| 11g preform for 250ml premium water | 96-cavity custom design, PCO 1810 neck |
| 55g preform for 5L edible oil jug | 32-cavity, 48mm wide mouth, heavy wall |
| 8g preform for 150ml hotel bottle | 144-cavity, small neck, high speed |
| 180g preform for 15L water cooler | 4-cavity, 55mm neck, reinforced base |
| 28g CSD preform with custom ALCO neck | 72-cavity, reinforced neck, valve gate |
| Multi-layer preform for oxygen barrier | Custom co-injection capability |
Why Global Customers Choose Gutewei for Custom Molds
| Buyer Requirement | Gutewei Solution |
|---|---|
| My neck finish is not standard | Tailored neck finish design — any specification |
| My bottle has unique geometry | Custom preform design optimized for your bottle |
| I have a non-standard machine | Flexible manufacturing for any interface |
| I need a specific cavity count | From 1 to 144 cavities |
| I use special material (rPET, bio-PET) | Process parameters optimized |
| I need confidentiality | Proprietary designs protected |
Custom Mold Documentation Package
Every Gutewei custom mold includes:
| Document | Purpose |
|---|---|
| Custom neck finish drawing | Your exact specification |
| Preform 2D drawing | Dimensional control |
| 3D CAD model (STEP/IGS) | Your records, line integration |
| Balance certificate | Quality verification |
| CMM inspection report | Neck finish validation |
| Material certificates | Hardness, composition |
| Installation manual | Machine-specific instructions |
| Spare parts list | Custom part numbers |
Lead Times for Custom Molds
| Mold Complexity | Typical Lead Time |
|---|---|
| Standard neck finish, standard preform | 6–8 weeks |
| Custom neck finish, standard preform | 8–10 weeks |
| Custom neck finish, custom preform design | 10–12 weeks |
| High cavitation (96+) with custom design | 12–14 weeks |
| Rush order | Available on request |
Investment Considerations
| Factor | Standard Mold | Custom Mold (Gutewei) |
|---|---|---|
| Initial cost | Lower | Higher (engineering, custom components) |
| Fit to your bottle | Approximate | Exact |
| Capping compatibility | May need adjustment | Perfect |
| Proprietary protection | No | Yes (your design only) |
| Long-term value | Good | Excellent (no compromises) |
| ROI | Standard | Higher (no downstream issues) |
Ready for a Custom PET Preform Mold?
If your bottle requires a non-standard neck finish, unique preform geometry, or specific material properties, you need a custom PET preform mold from Gutewei. Our tailored neck finish design and flexible preform tooling manufacturing capabilities ensure you get exactly what you need — not a compromise.
Contact Gutewei today with your custom preform requirements — bottle drawing or sample, neck finish specification, target weight, machine model, and any special requirements. We will design and manufacture a custom mold that fits your bottle perfectly.
