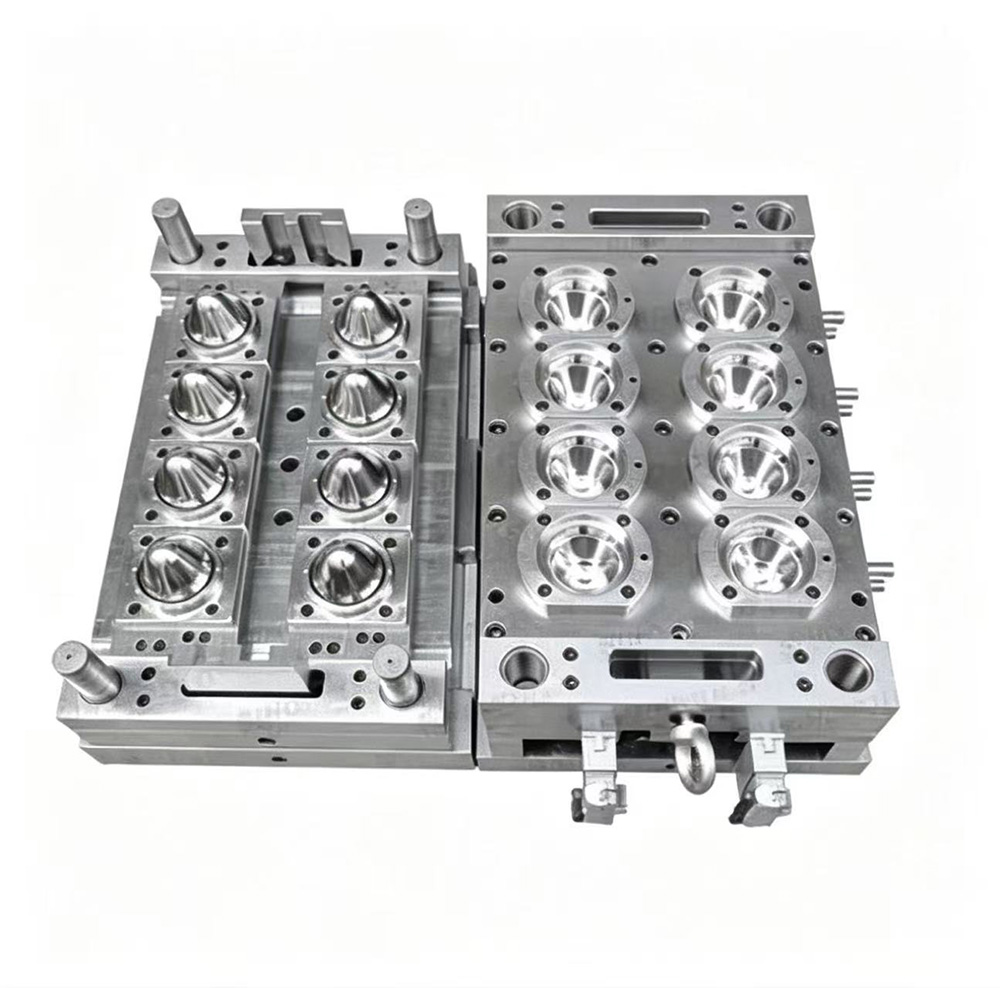

Low Waste Preform Mold, Gutewei Precision Gate Design, High Yield PET Bottle Preform Tool
In PET preform injection molding, waste is the silent profit killer. Every short shot, every flash-affected preform, every gate vestige that requires trimming represents material purchased, melted, and then discarded. For high-volume producers, even a 1% reject rate can mean tens of metric tons of PET waste annually — and thousands of dollars in lost material, labor, and energy. That is why Gutewei engineers low waste preform molds featuring precision gate design — delivering high yield PET bottle preform tools that maximize good parts per cycle and minimize scrap.
The True Cost of Preform Waste
| Production Volume | 1% Reject Rate | 2% Reject Rate | 3% Reject Rate |
|---|---|---|---|
| 100 million preforms | 1M rejects | 2M rejects | 3M rejects |
| Material waste (16g preform) | 16 metric tons | 32 metric tons | 48 metric tons |
| Material cost (@$1,200/ton) | $19,200 | $38,400 | $57,600 |
| Lost production time | Significant | Major | Severe |
| Additional labor (sorting) | High | Very high | Extreme |
Reducing reject rate from 2% to 0.5% saves over 24 metric tons of PET per 100 million preforms — directly improving your bottom line.
What Causes Preform Waste?
| Defect Type | Cause | Gutewei Solution |
|---|---|---|
| Short shots (incomplete filling) | Poor flow balance, insufficient injection | Precision balanced hot runner, optimized gate design |
| Flash (excess material at parting line) | Poor mold alignment, worn venting | Precision ground parting surfaces, optimized vent depths |
| Gate vestige (excess material at base) | Poor gate design, worn valve pin | Precision valve gate system, clean cut-off |
| Weight variation | Unbalanced cavities, temperature variation | Cavity balance technology, individual nozzle control |
| Splay / burns | Material degradation, poor venting | Low shear hot runner, precision venting |
| Voids / bubbles | Improper packing, gate freeze-off | Optimized gate geometry, proper gate sizing |
| Neck finish defects | Worn neck rings, misalignment | Precision neck ring design, hardened components |
Gutewei Precision Gate Design: The Key to Low Waste
The gate is the entry point where molten PET flows from the hot runner nozzle into the cavity. Poor gate design is the #1 cause of preform defects. Gutewei precision gate design addresses every aspect:
1. Valve Gate System (Zero Vestige)
Unlike open gate systems that leave a visible nub, Gutewei’s valve gate system uses a mechanically actuated pin to cleanly cut off melt flow:
| Gate Type | Gate Vestige | Secondary Trimming | Waste Impact |
|---|---|---|---|
| Open gate | Yes (0.5–2.0mm) | Often required | Trimming scrap, labor cost |
| Valve gate | None (flat surface) | Not required | Zero gate-related waste |
Annual waste savings from valve gate vs. open gate (100M preforms): 5–10 metric tons of trimmed material eliminated.
2. Optimized Gate Geometry
| Gate Parameter | Gutewei Optimization | Benefit |
|---|---|---|
| Gate diameter | 2.0–3.5mm (preform weight dependent) | Proper flow, no premature freeze-off |
| Gate angle | Gradual taper, no sharp corners | No stress concentration, no cracking |
| Gate land length | Minimized (0.5–1.0mm) | Clean separation, no stringing |
| Gate surface finish | RA ≤ 0.1μm polished | Smooth flow, no material adhesion |
3. Precision Valve Pin Design
| Feature | Gutewei Specification | Benefit |
|---|---|---|
| Pin material | Hardened H13 / tool steel (HRC 58–60) | Wear resistance, consistent cut-off |
| Pin tip geometry | Conical or flat (application optimized) | Clean shearing, no stringing |
| Pin actuation timing | ±0.01 second precision | Synchronized across all cavities |
| Pin guide bushing | Hardened, precision ground | No wobble, consistent shut-off |
4. Balanced Gate Fill
In multi-cavity molds, all gates must fill simultaneously. Gutewei ensures:
| Parameter | Gutewei Standard |
|---|---|
| Fill time variation across cavities | ≤ 0.05 seconds |
| Pressure drop to each gate | Variation ≤ 2% |
| Gate freeze timing | Consistent cavity to cavity |
Low Waste Preform Mold: Additional Waste-Reducing Features
1. Precision Venting
Trapped air causes burn marks and incomplete filling. Gutewei venting design:
| Feature | Specification | Benefit |
|---|---|---|
| Vent depth | 0.015–0.025mm (optimized for PET) | Air escapes, material does not |
| Vent location | At parting line, around neck ring | Complete air evacuation |
| Vent cleaning access | Easy access design | Simple maintenance |
| Vent land length | 3–5mm | No flash at vent |
2. Optimized Runner and Manifold Design
| Feature | Gutewei Implementation | Benefit |
|---|---|---|
| No dead zones | Complete flow-through design | No material degradation |
| Balanced flow paths | Equal length to all drops | Consistent fill, no short shots |
| Low shear geometry | Rounded corners, smooth transitions | No IV drop, no splay |
| Fast color change capability | Minimal residence volume | Less purge waste |
3. Precision Mold Alignment
| Feature | Gutewei Specification | Benefit |
|---|---|---|
| Parting line flatness | Ground to 0.02mm | No flash |
| Guide post alignment | Dowel pinned, ±0.005mm | Consistent cavity closure |
| Neck ring concentricity | ±0.01mm | No neck finish defects |
| Ejector pin fit | Precision ground, 0.01–0.02mm clearance | No sticking, no flash |
High Yield PET Bottle Preform Tool: Performance Results
| Defect Type | Industry Average | Gutewei Low Waste Mold | Waste Reduction |
|---|---|---|---|
| Short shots | 0.3–0.8% | < 0.1% | 70–85% |
| Flash | 0.2–0.5% | < 0.05% | 75–90% |
| Gate vestige (open gate) | 0.5–2.0% (if trimmed) | 0% (valve gate) | 100% |
| Weight variation rejects | 0.5–1.5% | < 0.2% | 70–85% |
| Splay / burns | 0.2–0.5% | < 0.05% | 75–90% |
| Neck finish defects | 0.3–0.8% | < 0.1% | 70–85% |
| Total reject rate | 2.0–6.0% | < 0.6% | 70–90% |
Material Savings Calculation
| Parameter | Standard Mold | Gutewei Low Waste Mold | Savings |
|---|---|---|---|
| Annual production | 100M preforms | 100M preforms | — |
| Reject rate | 2.5% | 0.5% | — |
| Rejects per year | 2.5M preforms | 500,000 preforms | 2.0M fewer rejects |
| Preform weight | 16g | 16g | — |
| Material saved | 40 metric tons | — | 32 metric tons |
| Material cost saved (@$1,200/ton) | — | — | $38,400/year |
| Labor saved (sorting/trimming) | — | — | $10,000–20,000/year |
| Total annual savings | — | — | $48,000–58,000 |
Why Global Preform Manufacturers Choose Gutewei
| Buyer Requirement | Gutewei Solution |
|---|---|
| Minimize material waste | Precision gate design, low reject rate (< 0.6%) |
| No secondary trimming needed | Valve gate system, zero gate vestige |
| Consistent quality across all cavities | Cavity balance ≤ 0.3% weight variation |
| Lower cost per good preform | Higher yield, less waste, lower labor |
| Meet customer quality specifications | Consistent defect-free preforms |
| Sustainable / green manufacturing | Reduced material waste, lower carbon footprint |
Real-World Performance: 72-Cavity Water Preform Mold
| Parameter | Before (Generic Mold) | After (Gutewei Low Waste Mold) |
|---|---|---|
| Preform: 0.5L water (16g) | Same preform | Same preform |
| Cavities: 72 | Same 72 cavities | Same 72 cavities |
| Reject rate | 2.8% | 0.45% |
| Good preforms per hour | 25,200 | 28,500 |
| Annual good preforms (24/7) | 221M | 250M |
| Additional good preforms/year | — | 29 million |
| Material waste (annual) | 44.8 metric tons | 7.2 metric tons |
| Material saved | — | 37.6 metric tons ($45,000+) |
| Labor (trimming gate vestige) | Full time operator | None (valve gate) |
| Payback period | — | 4–8 months |
Precision Gate Design by Preform Type
| Preform Type | Gate Type | Gate Diameter | Special Feature |
|---|---|---|---|
| Lightweight water (10–16g) | Valve gate | 2.0–2.5mm | Fast actuation |
| Standard water (16–24g) | Valve gate | 2.5–3.0mm | Balanced flow |
| CSD (20–48g) | Valve gate | 2.5–3.0mm | Reinforced gate area |
| Edible oil (30–80g) | Valve gate | 3.0–3.5mm | Extended gate cooling |
| Hot fill (20–40g) | Valve gate | 2.5–3.0mm | Heat resistant pin design |
Maintenance for Low Waste Performance
To maintain high yield from your Gutewei mold:
| Action | Frequency | Why |
|---|---|---|
| Inspect valve pin tips | 3–5 million cycles | Worn pins cause stringing, vestige |
| Clean gate area | Weekly | Residue affects cut-off |
| Verify actuation timing | Monthly | Consistent cut-off requires precise timing |
| Check vent depth | Every 3–6 months | Worn vents cause flash |
| Monitor cavity weights | Daily | Detect drift early |
| Inspect parting line | Monthly | Nicks cause flash |
The Gutewei Low Waste Advantage
| Feature | Standard Mold | Gutewei Low Waste Mold |
|---|---|---|
| Gate type | Often open gate | Valve gate (zero vestige) |
| Gate vestige | 0.5–2.0mm | None |
| Secondary trimming | Often required | Not required |
| Typical reject rate | 2.0–6.0% | < 0.6% |
| Material waste per 100M preforms (16g) | 32–96 metric tons | < 9.6 metric tons |
| Labor for sorting/trimming | Required | Minimal to none |
| Cost per good preform | Higher | Lower |
Ready for a High Yield Preform Mold?
If your current preform mold produces too many rejects — short shots, flash, gate vestiges, or weight variation — it is time to upgrade to a low waste preform mold from Gutewei. Our precision gate design delivers high yield PET bottle preform tools that maximize good parts per cycle and minimize material waste.
Contact Gutewei today with your preform specifications — target weight, cavity count, current reject rate (if known), and injection machine model. We will design a low waste preform mold that pays for itself through material savings.
