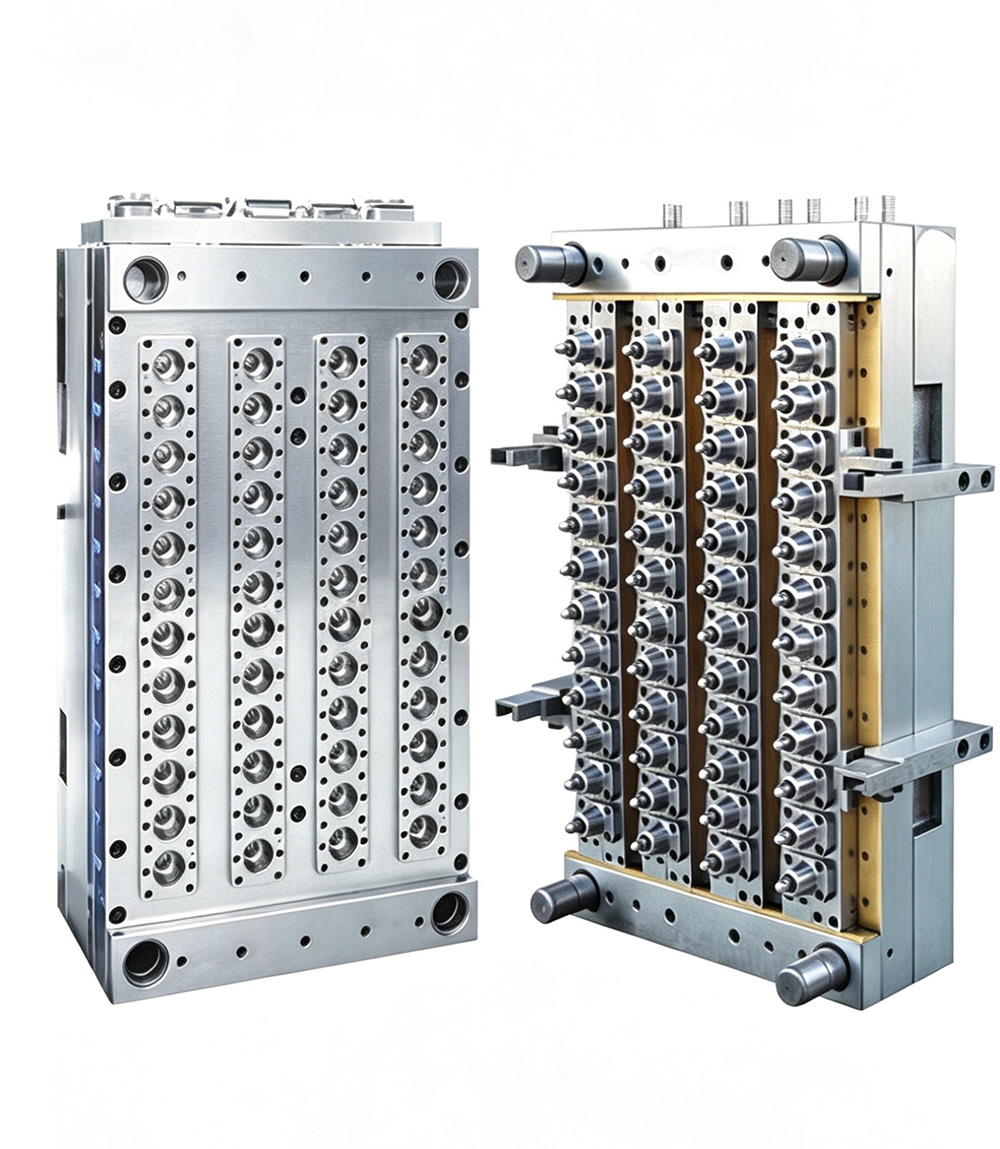

Fast Cycle Preform Mold, Gutewei Optimized Cooling Design, High Output PET Preform Tooling
In PET preform injection molding, time is money. Every second saved in the injection cycle translates directly into more preforms per hour, lower cost per preform, and higher annual output. Cooling typically accounts for 60–70% of the total cycle time — making it the single most important factor in cycle reduction. That is why Gutewei engineers fast cycle preform molds featuring optimized cooling design — delivering high output PET preform tooling that maximizes your production efficiency.
Why Cycle Time Matters
Cycle time is the total time from mold close to mold open for the next shot. It determines your maximum possible output:
| Cycle Time | Preforms per Hour (72-cavity) | Preforms per Year (24/7 operation) |
|---|---|---|
| 12.0 seconds | 21,600 | 189 million |
| 10.0 seconds | 25,920 | 227 million |
| 9.0 seconds | 28,800 | 252 million |
| 8.0 seconds | 32,400 | 284 million |
| 7.0 seconds | 37,029 | 324 million |
Each 1 second reduction adds over 35 million preforms per year on a 72-cavity mold running continuously.
What Limits Preform Cycle Time?
The injection molding cycle consists of several phases, but one phase dominates:
| Cycle Phase | Typical Duration | Is It Optimizable? |
|---|---|---|
| Mold close + clamp | 1.0 – 1.5 sec | Yes (machine dependent) |
| Injection + packing | 1.5 – 3.0 sec | Yes (limited) |
| Cooling (heat removal) | 5.0 – 8.0 sec | Main bottleneck (60–70%) |
| Mold open + ejection | 1.0 – 1.5 sec | Yes (limited) |
Cooling typically accounts for 60–70% of total cycle time. Reducing cooling time is the single most effective way to achieve a fast cycle preform mold.
How Cooling Works in Preform Molds
Heat from the molten PET (approximately 270–290°C at injection) must be removed through:
The core (internal cooling)
The cavity (external cooling)
The neck ring (neck finish cooling)
Until the preform cools enough to maintain its shape without deformation (typically 60–80°C at ejection), the mold cannot open. Gutewei optimized cooling design attacks heat removal from all three directions.
Gutewei Optimized Cooling Design: Technical Features
1. Conformal Cooling Channels
Traditional preform molds use straight-drilled cooling channels that stay a fixed distance from the cavity wall. Gutewei conformal cooling follows the actual contour of the preform:
| Feature | Straight Drilled | Gutewei Conformal |
|---|---|---|
| Distance from cavity | Varies (10–25mm) | Constant (6–10mm) |
| Hot spot control | Poor | Excellent |
| Cooling uniformity | ±3–5°C | ±1.5°C |
| Cooling time reduction | Baseline | 25–35% faster |
2. High Turbulence Cooling Circuits
Smooth water flow creates an insulating boundary layer that slows heat transfer. Gutewei designs cooling circuits with:
| Feature | Gutewei Implementation | Benefit |
|---|---|---|
| Turbulence-inducing geometry | Baffles, spiral channels, or dimples | Disrupts boundary layer |
| Reynolds number | > 10,000 (fully turbulent flow) | Maximum heat transfer |
| Heat transfer coefficient | Increased by 40–50% | Faster cooling |
| Pressure drop | Optimized for pump capacity | No excessive energy cost |
3. Multi-Zone Independent Cooling
Different preform areas cool at different rates. Gutewei molds feature independent cooling zones:
| Preform Zone | Cooling Priority | Gutewei Approach |
|---|---|---|
| Neck finish | Highest (critical for capping) | Dedicated neck ring cooling circuit |
| Shoulder | High (transition area) | Concentrated spiral cooling |
| Body | Medium (largest surface area) | Uniform conformal cooling |
| Gate / base | Highest (thickest area) | Enhanced pin cooling + baffle |
Each zone has independently adjustable flow rates and temperatures, allowing fine-tuning for optimal cooling balance.
4. High Thermal Conductivity Materials
Gutewei uses cavity materials selected for rapid heat transfer:
| Material | Thermal Conductivity (W/m·K) | Gutewei Application |
|---|---|---|
| Beryllium copper (alloy) | 200–250 | High speed, lightweight preforms |
| S136 stainless steel | 25–30 | Standard applications |
| 2316 stainless steel | 20–25 | Durable, long life molds |
For maximum speed applications, Gutewei offers beryllium copper inserts in critical cooling areas (neck ring, gate area) — reducing cooling time by an additional 15–20%.
5. Optimized Core Cooling
The core pin is the most efficient cooling path because it contacts the inside of the preform directly. Gutewei core cooling features:
| Feature | Implementation |
|---|---|
| Baffle design | Optimized for turbulence at the tip (thickest area) |
| Core material | High thermal conductivity where needed |
| Water flow path | No dead zones, full circulation to tip |
| Core tip cooling | Direct cooling at thickest section |
Fast Cycle Preform Mold: Performance Results
| Preform Type | Conventional Mold Cycle | Gutewei Fast Cycle Mold | Time Saved | Output Increase |
|---|---|---|---|---|
| 12g water (0.33L) | 8.5 seconds | 6.2 seconds | 2.3 sec (27%) | +37% |
| 16g water (0.5L) | 9.5 seconds | 7.0 seconds | 2.5 sec (26%) | +36% |
| 24g water (1L) | 11.0 seconds | 8.2 seconds | 2.8 sec (25%) | +34% |
| 22g CSD (0.5L) | 12.0 seconds | 9.0 seconds | 3.0 sec (25%) | +33% |
| 38g oil (1.5L) | 16.0 seconds | 12.0 seconds | 4.0 sec (25%) | +33% |
High Output PET Preform Tooling: Beyond Cooling
While optimized cooling is the centerpiece, Gutewei high output PET preform tooling integrates additional speed-enhancing features:
1. Fast Hot Runner Response
| Feature | Gutewei Specification | Benefit |
|---|---|---|
| Valve gate actuation | High speed pneumatic/hydraulic | Clean cut-off, no delay |
| Nozzle temperature response | < 2 seconds to setpoint | Faster startup, consistent cycle |
| Manifold design | Low volume, balanced | Minimal residence time |
2. Optimized Ejection System
| Feature | Gutewei Implementation | Benefit |
|---|---|---|
| Ejector pin layout | Strategically positioned, balanced | Even preform release |
| Pin surface finish | RA ≤ 0.1μm polished | No sticking, smooth release |
| Ejector plate guidance | Centrally guided, no play | Consistent motion |
| Stripper plate option | For difficult designs | Faster, more reliable ejection |
3. Precision Mold Alignment
| Feature | Gutewei Specification | Benefit |
|---|---|---|
| Guide posts | Hardened HRC 58, precision ground | Fast, accurate mold closing |
| Bushings | Bronze with graphite plugs | Self-lubricating, no sticking |
| Parting line | Ground to 0.02mm flatness | No flash, consistent clamping |
Comparison: Gutewei Fast Cycle Mold vs. Standard Mold
| Parameter | Standard Preform Mold | Gutewei Fast Cycle Preform Mold |
|---|---|---|
| Cooling channel type | Straight drilled | Conformal + multi-zone |
| Cooling time (16g preform) | 6.5 seconds | 4.5 seconds |
| Total cycle time (16g preform) | 9.5 seconds | 7.0 seconds |
| Preforms/hour (72-cavity) | 27,284 | 37,029 (+36%) |
| Annual preforms (24/7, 72-cavity) | 239M | 324M |
| Cost per preform (energy + labor) | Baseline | 20–25% lower |
| Additional preforms/year | — | 85 million |
Why Global Preform Manufacturers Choose Gutewei
| Buyer Requirement | Gutewei Solution |
|---|---|
| Maximize output from existing machines | Fast cycle = more preforms/hour |
| Reduce cost per preform | Spread fixed costs over more preforms |
| Lower energy consumption per preform | Shorter cycle = less energy per part |
| Maintain quality at high speed | Consistent cooling, uniform wall thickness |
| 24/7 reliability | Robust construction, 15–20M cycle life |
| Quick changeover between preform types | Modular design, 2-hour swap |
Real-World Performance: 72-Cavity Water Preform Line Upgrade
| Parameter | Before (Standard Mold) | After (Gutewei Fast Cycle Mold) |
|---|---|---|
| Preform: 0.5L water (16g) | Same preform | Same preform |
| Cavities: 72 | Same 72 cavities | Same 72 cavities |
| Cycle time | 10.0 seconds | 7.2 seconds |
| Preforms/hour | 25,920 | 36,000 (+39%) |
| Annual production (24/7) | 227M preforms | 315M preforms |
| Additional preforms/year | — | 88 million |
| Energy cost per 1,000 preforms | Baseline | 28% lower |
| Gutewei mold premium payback | — | 6–9 months |
Applications Best Suited for Gutewei Fast Cycle Preform Molds
| Application | Why Fast Cycle? | Expected Cycle Time |
|---|---|---|
| High volume water bottling | Millions of preforms, small savings add up | 6–8 seconds |
| Lightweight preforms (10–15g) | Fastest potential cycles | 5.5–7.0 seconds |
| Standard beverage preforms (16–24g) | Balance of speed and quality | 7–9 seconds |
| High cavitation (96–144 cavity) | Maximize output per machine | 8–10 seconds |
| Export preform production | Lower shipping cost per preform | 7–9 seconds |
Cooling Water Requirements for Fast Cycle Molds
To achieve Gutewei’s fast cycle performance, your cooling system must deliver:
| Parameter | Requirement |
|---|---|
| Water temperature | 8–12°C (chilled water recommended) |
| Flow rate per circuit | 15–25 L/min (depending on circuit size) |
| Pressure | 4–6 bar minimum |
| Water quality | Filtered, treated (no scale, no debris) |
| Chiller capacity | Sufficient for mold + machine |
Maintenance for Fast Cycle Preform Molds
To maintain peak speed performance:
| Action | Frequency | Why |
|---|---|---|
| Monitor cooling water flow rates | Weekly | Ensure design flow is maintained |
| Clean cooling channels | Every 3–6 months | Scale buildup reduces heat transfer |
| Check water quality | Monthly | Scale or corrosion slows cooling |
| Inspect baffles and turbulators | Every 6 months | Damage reduces turbulence |
| Verify cycle time consistency | Daily | Detect drift early |
| Document cooling parameters | Each setup | Repeatable performance |
The Gutewei Fast Cycle Advantage
| Feature | Standard Mold | Gutewei Fast Cycle Mold |
|---|---|---|
| Cooling design | Straight drilled | Conformal + multi-zone + turbulence |
| Cooling time (% of cycle) | 65–70% | 55–60% |
| Cycle time reduction | Baseline | 25–35% faster |
| Cavity temperature variation | ±3–5°C | ±1.5°C |
| Output increase | Baseline | 30–40% more preforms |
| Energy per preform | Baseline | 20–25% lower |
| Payback period | — | Typically 6–12 months |
Ready to Accelerate Your Preform Production?
If your current preform molds are limiting your line speed with long cooling times, it is time to upgrade to a fast cycle preform mold from Gutewei. Our optimized cooling design delivers high output PET preform tooling that significantly reduces cycle times — typically by 25–35% — while maintaining preform quality.
Contact Gutewei today with your preform specifications — target weight, cavity count, current cycle time (if known), and injection machine model. We will provide a fast cycle mold solution that boosts your output and lowers your cost per preform.
