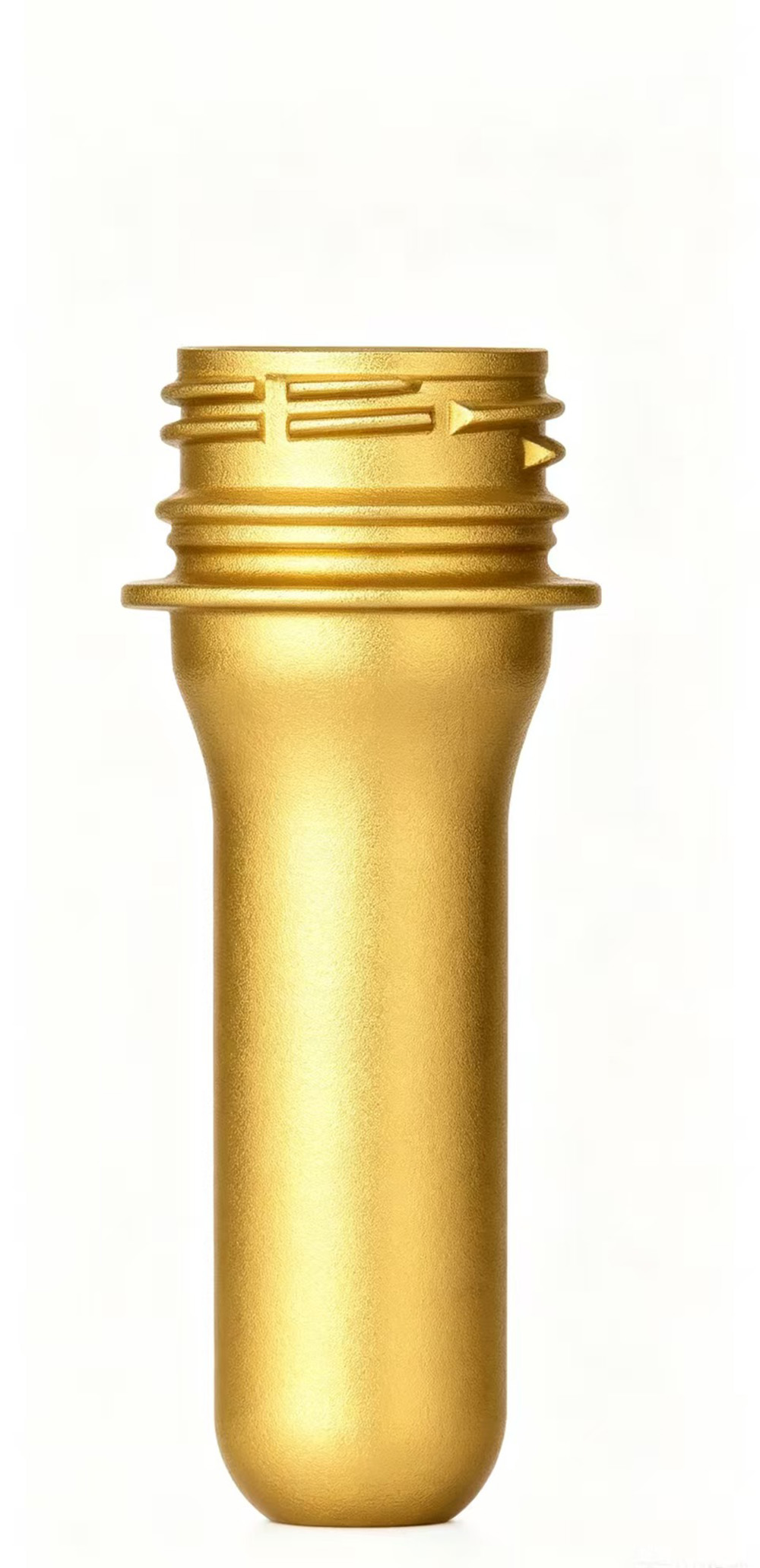

Hot Fill Preform Mold, Gutewei Heat Resistant PET Tool, High Temperature Preform Solution
Hot filling is one of the most demanding applications in PET packaging. Juices, teas, isotonic drinks, and certain sauces are filled at temperatures between 85°C and 95°C — far above the typical 65°C heat deflection temperature of standard PET. Without a specially designed preform, the bottle will shrink, distort, or collapse on the filling line. That is why Gutewei specializes in hot fill preform molds — heat resistant PET tools engineered specifically as high temperature preform solutions for hot fill applications.
What Makes Hot Fill Different from Standard Preforms?
| Parameter | Standard Preform | Hot Fill Preform |
|---|---|---|
| Fill temperature | Ambient (20–30°C) | 85–95°C |
| PET requirement | Standard amorphous PET | Heat-set (crystallized) PET |
| Neck requirement | Amorphous | Crystallized (35–45% crystallinity) |
| Preform design | Standard geometry | Heat-set optimized |
| Bottle characteristic | Flexible | Rigid, heat stable |
| Shrinkage after fill | 0.5–1.0% | < 1.5% (controlled) |
Standard preforms cannot survive hot filling. Gutewei hot fill preform molds are specifically designed for the heat-set process.
The Heat-Set Process: How Hot Fill Preforms Are Made
Heat setting is a proprietary process that increases PET crystallinity in the preform and bottle wall, creating thermal stability. The Gutewei high temperature preform solution supports this process through:
1. High Cavity Temperature During Blow
Unlike standard blow molding where molds are chilled to 8–12°C, hot fill molds operate at 120–140°C during the heat-set cycle. The hot mold holds the blown bottle against the cavity wall for a programmed dwell time, crystallizing the PET.
2. Preform Design for Heat Setting
| Preform Feature | Standard | Hot Fill | Why |
|---|---|---|---|
| Wall thickness | Even distribution | Slightly heavier at stress points | Withstands heat-set process |
| Neck design | Amorphous | Crystallized | Prevents neck distortion |
| Gate area | Standard | Reinforced | Heat-set stresses |
| Length/diameter ratio | Standard | Optimized for heat-set blow ratio | Proper material distribution |
3. Crystallized Neck Ring
The bottle neck is the most critical area. An amorphous (non-crystallized) neck will deform under hot fill conditions. Gutewei hot fill preform molds include:
| Feature | Specification | Benefit |
|---|---|---|
| Heated neck rings | Independent heating circuits | Crystallized neck finish |
| Temperature control | ±3°C accuracy | Consistent crystallinity |
| Neck crystallinity target | 35–45% | Heat deflection > 120°C |
| Cooling after crystallization | Controlled reduction | Dimensional stability |
Gutewei Heat Resistant PET Tool: Technical Features
Preform Mold Design for Hot Fill
| Feature | Gutewei Implementation | Benefit |
|---|---|---|
| Cavity material | High hardness stainless steel (S136, HRC 50–52) | Withstands repeated thermal cycles |
| Neck ring heating | Cartridge heaters or oil circulation | Uniform neck crystallization |
| Insulation layer | Thermal barrier between cavity and mold base | Protects machine platens, reduces energy loss |
| Cooling channels | Two independent circuits (hot/cool zones) | Precise thermal profile control |
| Gate design | Valve gate preferred | Clean gate, no stress concentration |
Neck Crystallization System
| Parameter | Gutewei Standard |
|---|---|
| Neck ring temperature | 120–140°C during heat-set phase |
| Crystallization time | 3–8 seconds (depending on neck design) |
| Cooling time after crystallization | Controlled ramp down |
| Crystallinity achieved | 35–45% |
| Heat deflection temperature | > 120°C |
Preform Material Considerations
| Property | Standard PET | Hot Fill PET | Gutewei Recommendation |
|---|---|---|---|
| Intrinsic viscosity (IV) | 0.74–0.78 dL/g | 0.78–0.82 dL/g | Higher IV for heat stability |
| Crystallization rate | Standard | Faster | Quicker heat-set cycle |
| Acetaldehyde (AA) | < 5 ppm | < 3 ppm | Taste sensitive |
High Temperature Preform Solution: Performance Specifications
| Parameter | Gutewei Standard |
|---|---|
| Maximum fill temperature | Up to 95°C |
| Preform weight range | 20g – 50g (typical hot fill) |
| Bottle volume range | 0.2L – 2.5L |
| Neck finish options | PCO 1881 (heat set), ALCO, custom |
| Neck crystallinity | 35–45% |
| Body crystallinity (after blow) | 30–40% |
| Bottle shrinkage (after filling) | < 1.5% |
| Maximum hot fill output | 8,000–12,000 bottles/hour (depending on cavitation) |
| Expected mold life | 12–15 million cycles |
Hot Fill Preform Design Guidelines
Preform Weight by Bottle Volume
| Bottle Volume | Standard Preform Weight | Hot Fill Preform Weight | Difference |
|---|---|---|---|
| 0.33L | 12–14g | 16–18g | +25–30% |
| 0.5L | 16–18g | 20–24g | +25–33% |
| 1.0L | 24–28g | 32–36g | +25–33% |
| 1.5L | 32–36g | 42–48g | +30–33% |
| 2.0L | 40–46g | 52–60g | +30% |
Neck Finish for Hot Fill
| Neck Type | Crystallization Required | Gutewei Feature |
|---|---|---|
| PCO 1881 | Yes (for fill > 70°C) | Heated neck rings |
| ALCO | Yes | Precise temperature control |
| 38mm wide mouth | Yes | Heavy duty neck ring heating |
| Custom | As specified | Engineered solution |
Why Global Hot Fill Bottlers Choose Gutewei
| Buyer Requirement | Gutewei Solution |
|---|---|
| Bottles must survive 85–95°C filling | Heat-set design, crystallized neck |
| No neck distortion after filling | Heated neck rings, 35–45% crystallinity |
| Consistent bottle dimensions | Precise thermal control ±3°C |
| Low acetaldehyde for taste | Low AA hot runner design, < 3 ppm |
| High volume production | 48–96 cavity configurations |
| Long mold life in high temperature service | Hardened stainless steel, thermal cycle tested |
Real-World Performance: 0.5L Juice Hot Fill Preform
| Parameter | Generic Hot Fill Mold | Gutewei Hot Fill Mold |
|---|---|---|
| Preform weight | 22g | 22g |
| Bottle volume | 0.5L | 0.5L |
| Fill temperature | 88°C | 88°C |
| Neck crystallinity | 28% | 42% |
| Neck distortion after fill | 0.8% ovality | 0.2% ovality |
| Bottle shrinkage | 2.2% | 1.1% |
| Vacuum panel performance | Inconsistent | Consistent |
| Blow molding reject rate | 2.8% | 0.7% |
| Annual output (24/7, 72 cavity) | 240M preforms | 240M preforms |
| Annual reject savings | — | 5M+ bottles |
Hot Fill Preform Mold Configurations
| Cavity Count | Typical Bottle Size | Machine Tonnage | Application |
|---|---|---|---|
| 48 cavities | 0.33L – 1.0L | 500–700 tons | Medium-high volume |
| 72 cavities | 0.33L – 0.75L | 700–900 tons | High volume |
| 96 cavities | 0.2L – 0.5L | 900–1,200 tons | Industrial scale |
Applications Best Suited for Gutewei Hot Fill Preform Molds
| Application | Fill Temperature | Preform Weight | Gutewei Advantage |
|---|---|---|---|
| Fruit juice (not from concentrate) | 88–92°C | 20–36g | High clarity, crystallized neck |
| Tea drinks | 85–90°C | 18–30g | Low AA, taste protection |
| Sports drinks | 85–88°C | 20–28g | Balanced design |
| Isotonic beverages | 85–90°C | 20–32g | Consistent performance |
| Tomato sauce / puree | 90–95°C | 30–50g | Heavy wall, reinforced neck |
| Coffee drinks | 85–90°C | 18–28g | Low AA critical |
Quality Assurance for Hot Fill Preform Molds
Every Gutewei heat resistant PET tool undergoes hot fill-specific testing:
| Test | Method | Acceptance Standard |
|---|---|---|
| Cavity balance | Weigh all cavities | ≤ 0.30% variation |
| Neck crystallinity | Density gradient or DSC | 35–45% |
| Neck dimension after heat cycle | CMM at temperature | Within specification |
| AA level | Gas chromatography | ≤ 3 ppm |
| Blow test (sample bottles) | Hot fill simulation (88°C) | No distortion, shrinkage < 1.5% |
| Thermal cycle test | 1,000 cycles hot/cold | No degradation |
Maintenance for Hot Fill Preform Molds
To maintain performance of your Gutewei high temperature preform solution:
Monitor heating elements – Replace cartridge heaters showing resistance drift
Check insulation layer – Damaged insulation increases energy cost
Inspect neck rings – Crystallized areas should show uniform appearance
Clean gate area regularly – High temperature operation accelerates residue
Follow warm-up procedure – Never start production on a cold hot fill mold
Document temperature profiles – Track for consistency
The Gutewei Hot Fill Advantage
| Feature | Standard Preform Mold | Gutewei Hot Fill Preform Mold |
|---|---|---|
| Neck crystallinity | 0–5% | 35–45% |
| Maximum fill temperature | 65°C | 95°C |
| Neck distortion after fill | Common | < 0.3% ovality |
| Bottle shrinkage | 2–3% | < 1.5% |
| Suitable for hot fill (>70°C) | No | Yes |
| Cycle time | Standard | Slightly longer (heat-set required) |
| Mold life in hot fill service | Reduced (3–5M cycles) | Extended (12–15M cycles) |
Ready for a Hot Fill Preform Mold That Delivers?
If you produce juices, teas, or any beverage filled above 70°C, you need a dedicated hot fill preform mold — not a standard mold pushed beyond its limits. Gutewei heat resistant PET tools are engineered for the unique demands of high temperature preform solutions.
Contact Gutewei today with your hot fill preform specifications — target bottle volume, fill temperature, preform weight, neck finish, and injection machine model. We will design a hot fill preform mold that produces stable, distortion-free preforms — bottle after bottle, at temperature.
