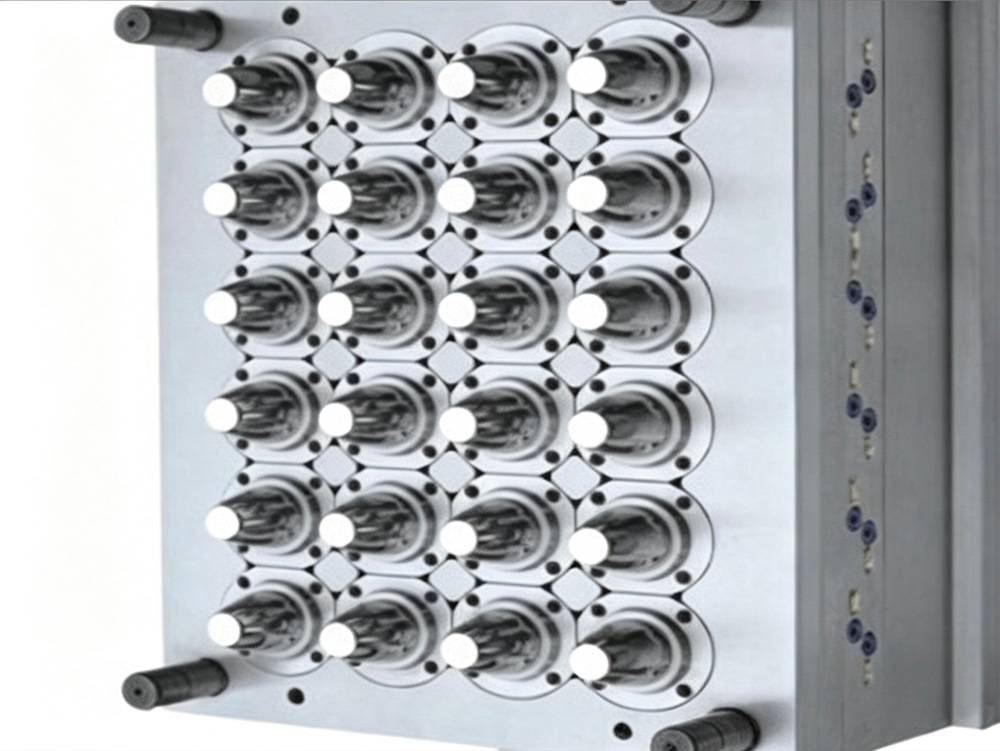

Carbonated Drink Preform Mold, Gutewei High Pressure Neck Design, CSD Bottle Preform Tooling
Carbonated soft drinks (CSD) place unique demands on PET preforms. Unlike still water bottles, CSD bottles must withstand internal pressures of 4–6 bar (60–90 psi) while maintaining perfect sealing at the neck and uniform wall distribution throughout the body. A preform with even minor defects — a weak neck, inconsistent wall thickness, or gate stress — will fail under pressure, causing bottle burst, leakage, or customer complaints. That is why Gutewei engineers carbonated drink preform molds featuring high pressure neck design — delivering CSD bottle preform tooling specifically optimized for carbonated beverage applications.
The Challenge: CSD vs. Still Water Preforms
| Parameter | Still Water Preform | CSD Preform | Why the Difference |
|---|---|---|---|
| Internal bottle pressure | 0 bar (ambient) | 4–6 bar (60–90 psi) | CO₂ expansion creates pressure |
| Neck finish requirement | Standard sealing | Enhanced sealing, creep resistance | Must hold pressure without leaking |
| Wall thickness | Lightweight (0.25–0.35mm bottle wall) | Heavier (0.35–0.50mm bottle wall) | Pressure containment |
| Stress crack resistance | Moderate | Critical | Pressure + environmental stress |
| Gate area | Standard | Reinforced, low stress | Most common failure point |
| AA (acetaldehyde) limit | < 5 ppm | < 3 ppm | Taste sensitivity |
What Makes a CSD Preform Different?
1. Neck Finish Design — The Critical Area
The neck finish is the most stressed area in a CSD bottle. Under pressure, the neck tries to expand. Without proper design, it creeps (permanently deforms), causing cap loosening and gas escape.
| Neck Feature | Standard Preform | Gutewei CSD High Pressure Neck |
|---|---|---|
| Wall thickness at neck | Standard | Reinforced (+15–25%) |
| Support ring | Standard | Beefed up for clamping |
| Thread profile | Standard | Optimized for cap sealing |
| Crystallization | Optional | Often required for hot fill CSD |
| Material | Standard PET | Higher IV PET (0.80–0.84 dL/g) |
2. Preform Weight and Wall Distribution
CSD preforms are typically 20–40% heavier than water preforms for the same bottle volume:
| Bottle Volume | Water Preform Weight | CSD Preform Weight | Difference |
|---|---|---|---|
| 0.5L | 12–14g | 18–22g | +50% |
| 1.0L | 18–22g | 28–34g | +55% |
| 1.5L | 22–28g | 36–44g | +60% |
| 2.0L | 32–38g | 48–58g | +55% |
3. Gate Area Strength
The gate area (base of the preform) is the weakest point in any preform. Under pressure, cracks often initiate at the gate. Gutewei CSD molds feature:
Valve gate system (not open gate) — eliminates gate vestige stress concentration
Optimized gate geometry — gradual transition, no sharp corners
Reinforced base design — thicker material at the gate area
Gutewei High Pressure Neck Design: Technical Features
Reinforced Neck Ring Dimensions
| Feature | Standard PCO 1881 | Gutewei CSD Reinforced |
|---|---|---|
| Neck outside diameter | Standard +0.00/-0.02mm | Standard +0.00/-0.02mm |
| Wall thickness at thread area | 2.0–2.2mm | 2.4–2.7mm |
| Support ring thickness | 2.5mm | 3.0–3.5mm |
| Support ring diameter | Standard | +0.5mm wider |
| Thread profile | Standard V-thread | Optimized for cap retention |
Material Selection for CSD Preforms
| Material Property | Water Grade PET | CSD Grade PET | Gutewei Recommendation |
|---|---|---|---|
| Intrinsic viscosity (IV) | 0.74–0.78 dL/g | 0.80–0.84 dL/g | Higher IV for strength |
| Acetaldehyde (AA) | < 5 ppm | < 3 ppm | Low AA for taste |
| Crystallization rate | Standard | Faster for heat setting | If hot fill CSD |
Neck Crystallization for Hot Fill CSD
For carbonated drinks that are also hot filled (some juices, energy drinks), the neck must be crystallized:
| Parameter | Non-Crystallized Neck | Crystallized Neck |
|---|---|---|
| Heat deflection temperature | ~70°C | ~120°C |
| Suitable for hot fill (>70°C) | No | Yes |
| Pressure resistance at temperature | Reduced | Maintained |
| Gutewei capability | Standard | Heated neck rings |
CSD Bottle Preform Tooling: Complete System Features
Hot Runner System for CSD
| Feature | Gutewei CSD Specification | Benefit |
|---|---|---|
| Valve gate | Standard (not open gate) | No gate vestige, no stress concentration |
| Low shear design | Optimized flow channels | Prevents IV drop, maintains strength |
| Individual nozzle control | ±1°C accuracy | Consistent melt quality per cavity |
| AA control | < 3 ppm design | Meets CSD taste requirements |
Cooling System for CSD Preforms
Heavier CSD preforms require more cooling time. Gutewei cooling features:
| Feature | Implementation |
|---|---|
| Extended cooling channels | Longer circuit length for heat removal |
| Pin cooling at base | Direct cooling at thickest area |
| Independent neck cooling | Dedicated circuit for neck ring |
| Cooling time optimization | Balanced for wall thickness |
Cavity Balance for CSD
Weight variation is even more critical for CSD because material distribution affects pressure resistance:
| Cavity Count | Gutewei CSD Weight Variation Target |
|---|---|
| 48 cavities | ≤ 0.25% |
| 72 cavities | ≤ 0.25% |
| 96 cavities | ≤ 0.30% |
Performance Specifications: Gutewei CSD Preform Mold
| Parameter | Gutewei Standard |
|---|---|
| Preform weight range | 16g – 60g (customizable) |
| Bottle volume range | 0.33L – 2.5L |
| Neck finish options | PCO 1881, ALCO, custom reinforced |
| Pressure rating (finished bottle) | 6 bar (87 psi) minimum |
| Burst pressure safety factor | 2:1 minimum |
| Weight variation | ≤ 0.25% (48-72 cavity) |
| AA level | ≤ 3 ppm (beverage grade) |
| Gate type | Valve gate (zero vestige) |
| Expected mold life | 15–20 million cycles |
Why Global CSD Bottlers Choose Gutewei
| Buyer Requirement | Gutewei Solution |
|---|---|
| Bottle must hold carbonation pressure | High pressure neck design, reinforced walls |
| No neck creep under pressure | Optimized neck geometry, proper material |
| Low taste impact (no AA) | Low AA hot runner design, < 3 ppm |
| Consistent preform quality | Cavity balance ≤ 0.25% weight variation |
| No gate cracks under pressure | Valve gate system, reinforced base |
| High volume production | 48–96 cavity configurations |
Real-World Performance: 2L CSD Preform
| Parameter | Generic CSD Mold | Gutewei CSD Mold |
|---|---|---|
| Preform weight | 52g | 52g |
| Bottle volume | 2L | 2L |
| Neck finish | PCO 1881 | Gutewei reinforced PCO 1881 |
| Weight variation | 0.7% | 0.22% |
| Pressure test (finished bottle) | ||
| – Pass at 4 bar | Yes | Yes |
| – Pass at 6 bar | 92% | 99.5% |
| – Burst pressure | 7.2 bar avg | 8.5 bar avg |
| Creep test (24 hrs at 4 bar) | 1.8% diameter increase | 0.9% diameter increase |
| Blow molding reject rate | 2.1% | 0.5% |
| Annual material savings | — | 18+ metric tons |
CSD Preform Design Guidelines from Gutewei
For optimal carbonated drink preform performance, Gutewei recommends:
1. Preform Weight Calculation
| Bottle Volume | Minimum CSD Preform Weight | Recommended |
|---|---|---|
| 0.33L | 16g | 18g |
| 0.5L | 18g | 20–22g |
| 1.0L | 28g | 30–34g |
| 1.5L | 36g | 40–44g |
| 2.0L | 48g | 52–58g |
2. Neck Finish Selection
| Application | Recommended Neck | Gutewei Feature |
|---|---|---|
| Standard CSD (non-hot fill) | PCO 1881 reinforced | Extra wall thickness at threads |
| Hot fill CSD (juice, energy) | PCO 1881 heat set | Crystallized neck |
| Premium / export CSD | ALCO or custom | Enhanced sealing surface |
3. Material IV Recommendations
| Bottle Pressure | IV Requirement |
|---|---|
| Up to 4 bar (standard CSD) | 0.78–0.80 dL/g |
| 4–5 bar (high carbonation) | 0.80–0.82 dL/g |
| 5–6 bar (max carbonation) | 0.82–0.84 dL/g |
Applications Best Suited for Gutewei CSD Preform Molds
| Application | Typical Preform Weight | Gutewei Advantage |
|---|---|---|
| Cola / lemonade (2L) | 48–58g | High pressure neck, reinforced base |
| Sparkling water (0.5L) | 18–22g | Lightweight CSD design |
| Beer (PET bottle) | 22–30g | Oxygen barrier consideration |
| Carbonated juice (1L) | 30–36g | Hot fill + CSD capability |
| Energy drink (0.33L) | 18–20g | Premium finish, low AA |
Quality Assurance for CSD Preform Molds
Every Gutewei carbonated drink preform mold undergoes CSD-specific testing:
| Test | Method | Acceptance Standard |
|---|---|---|
| Cavity balance | Weigh all cavities | ≤ 0.25% variation |
| Neck finish CMM | 100% inspection | ±0.02mm of drawing |
| Gate area inspection | Microscope | No cracks, no vestige |
| AA level test | Gas chromatography | ≤ 3 ppm |
| Blow test (sample bottles) | Pressure test to 8 bar | No failure at 6 bar |
| Creep test | 24 hrs at 4 bar, 38°C | < 1.5% diameter change |
Maintenance for CSD Preform Molds
To maintain high pressure performance:
Inspect gate area regularly — Check for wear or damage
Monitor valve pin condition — Worn pins cause gate defects
Verify neck ring dimensions monthly — Critical for sealing
Check cooling balance — Uneven cooling affects wall strength
Document weight data weekly — Detect drift early
Ready for a CSD Preform Mold That Holds Pressure?
If your current preform mold produces CSD preforms with neck creep, gate cracks, or inconsistent blow performance, it is time to upgrade to a carbonated drink preform mold from Gutewei. Our high pressure neck design delivers CSD bottle preform tooling that reliably produces bottles capable of holding carbonation pressure — bottle after bottle.
Contact Gutewei today with your CSD preform specifications — target bottle volume, preform weight, neck finish, and injection machine model. We will design a carbonated drink preform mold engineered for pressure.
