Hot Runner Preform Mold, Gutewei Valve Gate System, Zero Scrap Neck Finish Tooling

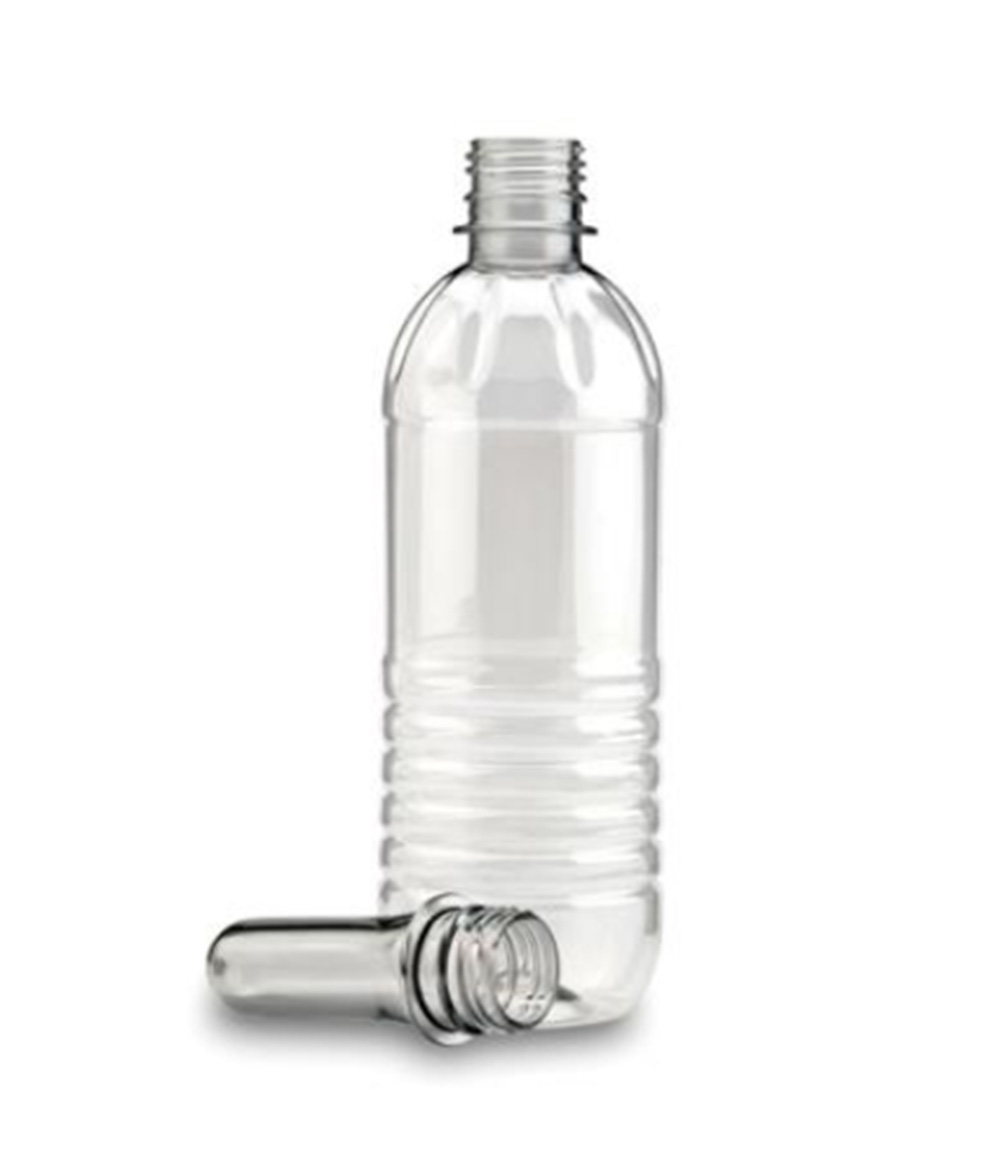

In PET preform injection molding, the gate mark at the base of the preform neck has traditionally been an unavoidable defect. Standard open gate hot runner systems leave a visible vestige — a small nub or bump — that can interfere with capping, create stress points, or simply look unprofessional on premium bottles. That is why Gutewei engineers hot runner preform molds featuring the valve gate system — delivering zero scrap neck finish tooling that produces perfectly clean preform bases, cycle after cycle.
The Problem with Open Gate Systems
Traditional open gate hot runners allow melt to flow freely into the cavity. When the injection phase ends, the material at the gate solidifies, leaving a vestige:
| Gate Type | Neck Finish Result | Problem |
|---|---|---|
| Open gate | Visible nub or bump | Interferes with capping, stress concentration |
| Open gate with break-off | Broken surface, irregular | Unprofessional appearance, potential leakage |
| Valve gate | Smooth, flat, clean | No vestige, perfect sealing surface |
For beverage, pharmaceutical, and premium cosmetic applications, open gate vestiges are unacceptable.
How Gutewei Valve Gate System Works
The valve gate system uses a mechanically actuated pin that opens to allow melt flow and closes to cut off material before the gate solidifies:
Valve Gate Sequence
| Phase | Action | Result |
|---|---|---|
| 1. Injection start | Valve pin retracts (opens) | Melt flows into cavity |
| 2. Injection/packing | Pin remains open | Cavity fills, packing applied |
| 3. Gate cut-off | Valve pin extends (closes) | Cleanly shears melt at gate |
| 4. Cooling | Pin closed, no melt flow | Gate solidifies with flat, smooth surface |
The result: Zero gate vestige — a perfectly flat neck base that requires no secondary trimming or finishing.
Gutewei Valve Gate System: Technical Specifications
| Feature | Gutewei Specification | Benefit |
|---|---|---|
| Valve pin actuation | Pneumatic or hydraulic | Fast response, precise timing |
| Pin material | Hardened H13 / tool steel (HRC 58–60) | Wear resistance, long life |
| Pin tip design | Conical or flat (application specific) | Clean cut, no stringing |
| Actuation timing control | ±0.01 second precision | Synchronized across all cavities |
| Nozzle type | Heated, with replaceable tip | Easy maintenance |
| Gate diameter | 2.0mm – 3.5mm (optimized for PET) | Minimal witness mark |
Zero Scrap Neck Finish Tooling: Key Benefits
1. Perfect Capping Surface
| Requirement | Open Gate Result | Valve Gate Result |
|---|---|---|
| Flat sealing surface | No (has vestige) | Yes |
| No interference with cap liner | Risk of damage | Safe |
| Consistent torque application | Variable | Consistent |
| Leak prevention | Compromised | Reliable |
2. Eliminates Secondary Operations
Open gate preforms often require:
Trimming (manual or automated)
Inspection for incomplete break-off
Rework or scrap of damaged parts
Gutewei valve gate system eliminates all of these — saving labor and reducing waste.
3. Improved Preform Strength
A vestige creates a stress concentration point. Under blow molding pressure, cracks can initiate at the gate mark. Valve gate preforms have:
No stress concentration at the base
Higher burst strength in finished bottles
Lower reject rate at blow molding
4. Better Visual Appearance
| Application | Appearance Requirement | Valve Gate Advantage |
|---|---|---|
| Premium water | Crystal clear, no visible defects | Perfect base finish |
| Cosmetic bottles | High-end presentation | Professional appearance |
| Pharmaceutical | Clean, no contamination risk | Smooth, non-porous surface |
| Export bottles | Customer specification compliance | Meets strict standards |
Gutewei Valve Gate vs. Open Gate: Comparison
| Parameter | Open Gate System | Gutewei Valve Gate System |
|---|---|---|
| Gate vestige | Visible (0.5–2.0mm) | None (flat surface) |
| Secondary trimming | Often required | Not required |
| Scrap rate (neck finish) | 0.5–2.0% | < 0.1% |
| Capping interference | Possible | None |
| Stress concentration | Present | Eliminated |
| Tool maintenance | Lower | Slightly higher (valve pins) |
| Initial mold cost | Lower | Higher (10–20%) |
| Long-term cost per preform | Higher (waste + labor) | Lower |
Valve Gate Configurations by Cavity Count
| Cavity Count | Valve Gate Type | Typical Application |
|---|---|---|
| 32 – 48 cavities | Pneumatic actuation | Medium volume, standard beverage |
| 48 – 72 cavities | Pneumatic or hydraulic | High volume, water/CSD |
| 72 – 96 cavities | Hydraulic actuation | Industrial scale, maximum output |
| 96 – 144 cavities | High-force hydraulic | Ultra-high cavitation, premium finish |
Hot Runner Preform Mold: Complete System Features
Beyond valve gates, Gutewei hot runner preform molds include:
1. Balanced Manifold Design
Symmetrical flow channels
CFD-optimized for equal pressure drop
Minimal residence time to prevent degradation
2. Individual Nozzle Temperature Control
Each nozzle independently controlled
Accuracy: ±1°C
Fast response to process changes
3. Low Acetaldehyde (AA) Design
Low-shear flow paths
No dead zones or stagnant melt
AA levels consistently ≤ 3 ppm (beverage grade)
4. Fast Color Change Capability
Removable nozzle tips for cleaning
Purge-friendly manifold geometry
Color change time: typically 20–30 minutes
Why Global Preform Manufacturers Choose Gutewei Valve Gate Molds
| Buyer Requirement | Gutewei Solution |
|---|---|
| No gate vestige on neck finish | Precision valve gate system |
| Eliminate secondary trimming | Zero scrap neck finish tooling |
| High quality for premium bottles | Perfect sealing surface, clean appearance |
| Low reject rate at blow molding | No stress concentration at gate |
| Consistent capping performance | Flat, uniform neck base |
| Long valve pin life | Hardened tool steel pins (HRC 58–60) |
Real-World Performance: 72-Cavity Valve Gate Mold
| Parameter | Open Gate Mold | Gutewei Valve Gate Mold |
|---|---|---|
| Cavity count | 72 | 72 |
| Preform: 0.5L water (16g) | Same | Same |
| Gate vestige | 0.8–1.2mm | None (flat) |
| Secondary trimming required | Yes (automated) | No |
| Trimming scrap rate | 0.8% | 0% |
| Capping line reject rate | 0.5% | 0.1% |
| Blow molding crack rate (gate area) | 0.3% | < 0.05% |
| Annual material savings (waste) | — | 12+ metric tons |
| Payback period | — | 8–12 months |
Applications Best Suited for Gutewei Valve Gate Preform Molds
| Application | Why Valve Gate? | Expected Benefit |
|---|---|---|
| Premium bottled water | Clean appearance, brand image | No visible gate mark |
| Carbonated soft drinks | Stress-free gate for pressure | Lower blow molding cracks |
| Edible oil | No contamination risk | Clean, safe sealing |
| Pharmaceutical | Regulatory compliance | Smooth, non-porous surface |
| Cosmetic and personal care | High-end presentation | Professional finish |
| Export bottles | Meeting international standards | Customer acceptance |
Valve Gate Maintenance: What to Expect
While valve gate systems require more maintenance than open gate systems, the benefits far outweigh the costs:
| Component | Maintenance Interval | Action |
|---|---|---|
| Valve pins | 5–8 million cycles | Inspect for wear, replace if needed |
| Pin bushings | 8–10 million cycles | Check clearance, replace |
| Actuator seals | 10–12 million cycles | Replace O-rings |
| Nozzle tips | 8–10 million cycles | Clean or replace |
| Gate area | Weekly | Clean residue |
Gutewei provides spare valve pin kits with every mold, ensuring minimal downtime when maintenance is required.
Zero Scrap Neck Finish Tooling: The Quality Standard
For manufacturers who demand the highest quality neck finish — whether for premium beverages, pharmaceuticals, or export markets — zero scrap neck finish tooling is not a luxury. It is a requirement.
Gutewei valve gate system delivers:
No gate vestige – perfectly flat neck base
No secondary trimming – lower labor and waste
No stress concentration – stronger preforms, better blow molding
No capping issues – consistent sealing surface
Ready for Perfect Neck Finishes?
If your current preform mold leaves vestiges that require trimming or cause capping problems, it is time to upgrade to a hot runner preform mold with the Gutewei valve gate system. Our zero scrap neck finish tooling delivers clean, professional preform bases — eliminating waste and improving your final bottle quality.
Contact Gutewei today with your preform specifications — target weight, neck finish, cavity count, and injection machine model. We will design a valve gate preform mold that produces perfect neck finishes, every cycle.
