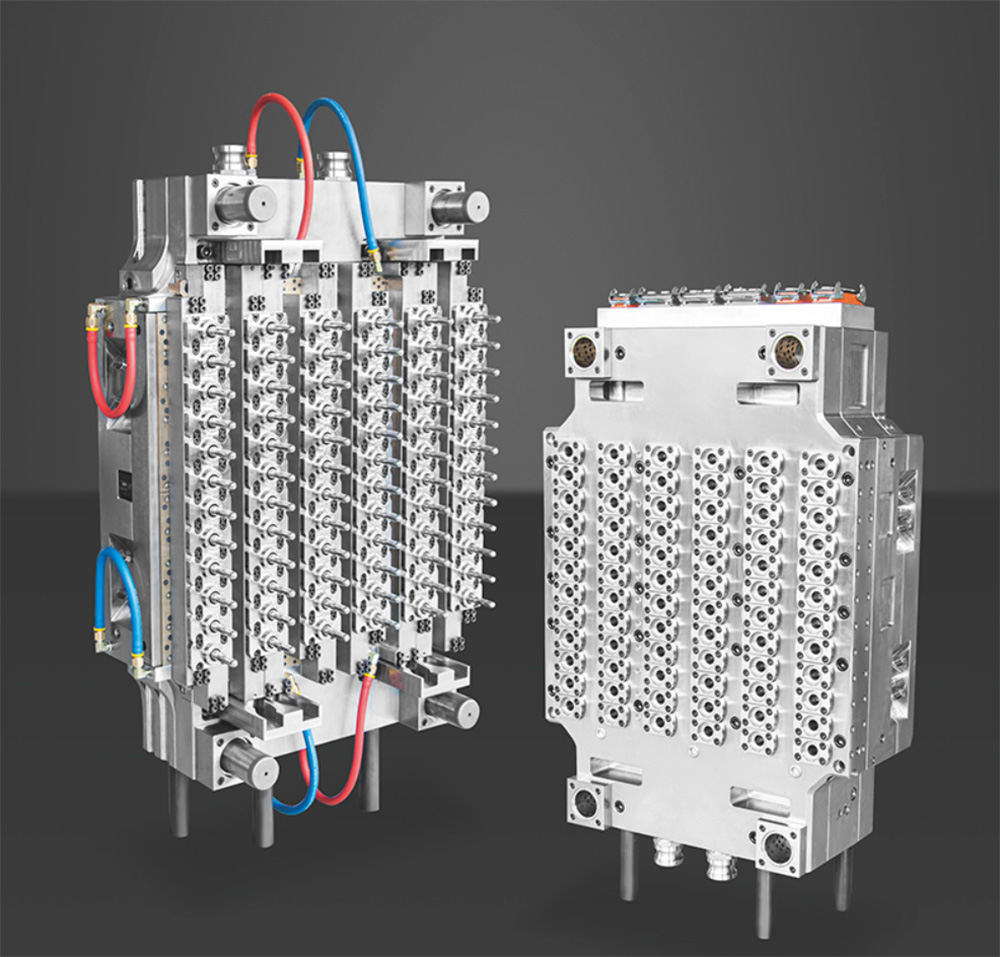

Durable PET Preform Mold, Gutewei Hardened Stainless Steel Core, Long Service Life Preform Tooling
In PET preform injection molding, mold durability directly impacts your bottom line. Every time a preform mold wears out prematurely, you face unplanned downtime, replacement cavity costs, and lost production. That is why Gutewei builds every mold as a durable PET preform mold using hardened stainless steel cores — delivering long service life preform tooling that keeps your production running for millions of cycles.
What Kills Ordinary Preform Molds?
Most preform molds fail prematurely for four reasons:
| Failure Cause | Result | Cost Impact |
|---|---|---|
| Soft core/cavity material | Surface scratching, dimensional drift | Poor preform quality, frequent replacement |
| Neck ring wear | Out-of-round neck finish, capping issues | Bottle leakage, customer complaints |
| Guide component fatigue | Misalignment, uneven wall thickness | Increased reject rate, mold damage |
| Corrosion (cooling water) | Pitting on cavity surfaces | Preform clarity loss, surface defects |
Gutewei engineers solutions for every one of these failure modes — before they happen.
Gutewei Hardened Stainless Steel Core: Material Matters
Not all stainless steel is the same. Gutewei selects only premium grades specifically chosen for PET preform molding demands:
| Material Grade | Hardness (HRC) | Key Property | Gutewei Application |
|---|---|---|---|
| S136 (ESR) | 48–52 | High polishability, corrosion resistant | Cores, cavities, neck rings |
| 2316 (DIN 1.2316) | 45–50 | Excellent wear resistance | Cavity plates, guide surfaces |
| H13 | 50–54 | High impact strength | Ejector pins, stripper plates |
| Nitrided steel | 60–65 (surface) | Extreme surface hardness | Gate inserts, wear pads |
Why Hardened Stainless Steel?
Standard preform molds often use pre-hardened steel (HRC 30–35) or unhardened stainless. Gutewei hardened stainless steel cores start at HRC 48 and reach HRC 54 after heat treatment. The difference:
| Property | Standard Steel (HRC 32) | Gutewei Hardened (HRC 50+) |
|---|---|---|
| Wear resistance | 1x baseline | 5–6x longer |
| Scratch resistance | Moderate | Excellent |
| Corrosion resistance | Good | Superior |
| Dimensional stability over time | Drifts after 5M cycles | Stable to 15–20M cycles |
| Surface polish retention | Degrades | Maintains RA ≤ 0.02μm |
Long Service Life Preform Tooling: Engineered for Millions of Cycles
A long service life preform tool is not just about hard steel. Gutewei integrates durability into every component:
1. Hardened Cores and Cavities
| Component | Material | Hardness | Expected Life |
|---|---|---|---|
| Core rod | S136 ESR | HRC 50–52 | 15–20 million cycles |
| Cavity block | S136 ESR | HRC 50–52 | 15–20 million cycles |
| Neck ring | S136 + nitriding | HRC 55–58 (surface) | 12–15 million cycles |
| Gate insert | H13 nitrided | HRC 60–65 | 10–12 million cycles |
2. Wear-Resistant Guide System
Misalignment accelerates wear. Gutewei uses:
Hardened guide posts (HRC 55–58)
Bronze-bushed with graphite plugs (self-lubricating)
Guide post spacing optimized for mold rigidity
Alignment dowels at all parting surfaces
Result: Perfect alignment maintained for 20+ million cycles
3. Durable Neck Ring Assembly
The neck ring experiences the highest stress during ejection and preform removal. Gutewei neck rings feature:
Nitrided surface hardness HRC 55–58
Precision ground concentricity (±0.01mm)
Reinforced mounting to prevent flexing
Interchangeable design for easy replacement
4. Corrosion-Protected Cooling Channels
Cooling water eventually attacks unprotected steel, causing pitting that ruins polished cavity surfaces. Gutewei applies:
Nickel-based anti-corrosion coating to all cooling channels
Sealed circuit design prevents water-contact with cavity surfaces
Regular testing of channel integrity
5. Robust Ejector System
Ejector pins push preforms out of cavities millions of times. Gutewei ejectors feature:
Hardened H13 pins (HRC 55–58)
Polished surface finish (RA ≤ 0.1μm)
Precision-guided retainers
Evenly distributed ejector layout to prevent preform bending
Expected Service Life: Gutewei vs. Standard Molds
| Operating Condition | Standard Mold Life | Gutewei Hardened Mold Life |
|---|---|---|
| Water bottle preform (24/7) | 8–12 million cycles | 18–22 million cycles |
| CSD preform (higher stress) | 6–10 million cycles | 15–18 million cycles |
| Edible oil (thick wall, heavy preform) | 5–8 million cycles | 14–16 million cycles |
| Hot fill preform (heat set) | 4–7 million cycles | 12–15 million cycles |
After 15 million cycles, a Gutewei durable PET preform mold typically requires only:
New gate inserts (low cost, easy replacement)
Fresh O-rings and seals
Optional repolish of cavity surfaces
The hardened cores, cavities, and neck rings remain in specification.
Cost Benefit Analysis: Investing in Durability
| Factor | Standard Mold | Gutewei Durable Mold |
|---|---|---|
| Initial mold cost | 1x baseline | 1.3–1.5x baseline |
| Expected life (cycles) | 8–10 million | 18–20 million |
| Mold replacements needed over 20M cycles | 2–3 molds | 1 mold |
| Total mold cost over 20M cycles | 2–3x baseline | 1.3–1.5x baseline |
| Downtime for mold changes | Multiple events | One event |
| Lost production cost | High | Low |
| Total cost of ownership | High | Lower by 30–40% |
Why Global Preform Manufacturers Choose Gutewei
| Buyer Concern | Gutewei Solution |
|---|---|
| Mold wears out too fast | Hardened stainless steel HRC 48–54 |
| Frequent neck ring replacement | Nitrided neck rings, 12–15M cycle life |
| Cavity surface scratches after cleaning | High hardness resists accidental damage |
| Corrosion from cooling water | Anti-corrosion coated channels |
| Remote location, hard to replace mold | 18–20M cycle design life |
| Spare parts availability | Standardized inserts, 24-hour spare parts service |
Real-World Performance: 72-Cavity Water Preform Mold
| Parameter | Standard Mold (HRC 32) | Gutewei Hardened Mold (HRC 52) |
|---|---|---|
| Initial cycles | Quality acceptable | Quality excellent |
| At 5 million cycles | Visible wear, quality drift | Like new |
| At 10 million cycles | Needs replacement | Still within spec |
| At 15 million cycles | (already replaced) | Minor wear, still running |
| At 20 million cycles | — | End of life approaching |
| Total production from 1 mold | 8–10 million | 18–20 million |
| Molds required for 20M production | 2–3 molds | 1 mold |
Applications Best Suited for Gutewei Durable Preform Molds
| Application | Why Durability Matters | Expected Mold Life |
|---|---|---|
| High volume water bottling | 24/7 operation, minimum downtime | 18–22 million cycles |
| CSD production | Higher injection pressures, more wear | 15–18 million cycles |
| Edible oil bottles | Thick wall, heavy preform weight | 14–16 million cycles |
| Export preform manufacturing | Remote customer, hard to replace molds | 18–20 million cycles |
| Contract preform producers | Multiple customers, high cumulative cycles | 15–18 million cycles |
| Captive preform plants | Own production, direct downtime cost | 18–22 million cycles |
Maintenance Tips for Maximum Mold Life
To achieve the full long service life of your Gutewei durable PET preform mold:
Use filtered cooling water – Prevents channel scaling and pitting
Lubricate guide components weekly – Reduces friction and wear
Inspect neck rings monthly – Check for cracks or dimensional change
Clean cavity surfaces with soft materials – Never use steel tools
Follow recommended ejection parameters – Avoid over-stroking
Store molds properly – Clean, dry, and coated when not in use
The Gutewei Durability Guarantee
Every Gutewei hardened stainless steel core mold is backed by:
Material certification for all hardened components
Hardness test reports (HRC values for each critical part)
Corrosion resistance verification
100% dimensional inspection before shipping
We do not guess about durability — we prove it with documentation.
Ready for a Preform Mold That Lasts?
If you are tired of replacing preform molds every 12–18 months, it is time to invest in a durable PET preform mold from Gutewei. Our hardened stainless steel cores deliver long service life preform tooling that lowers your total cost of ownership and keeps your production line running.
Contact Gutewei today with your preform specifications — target weight, cavity count, and injection machine model. We will design a durable preform mold engineered for millions of trouble-free cycles.
