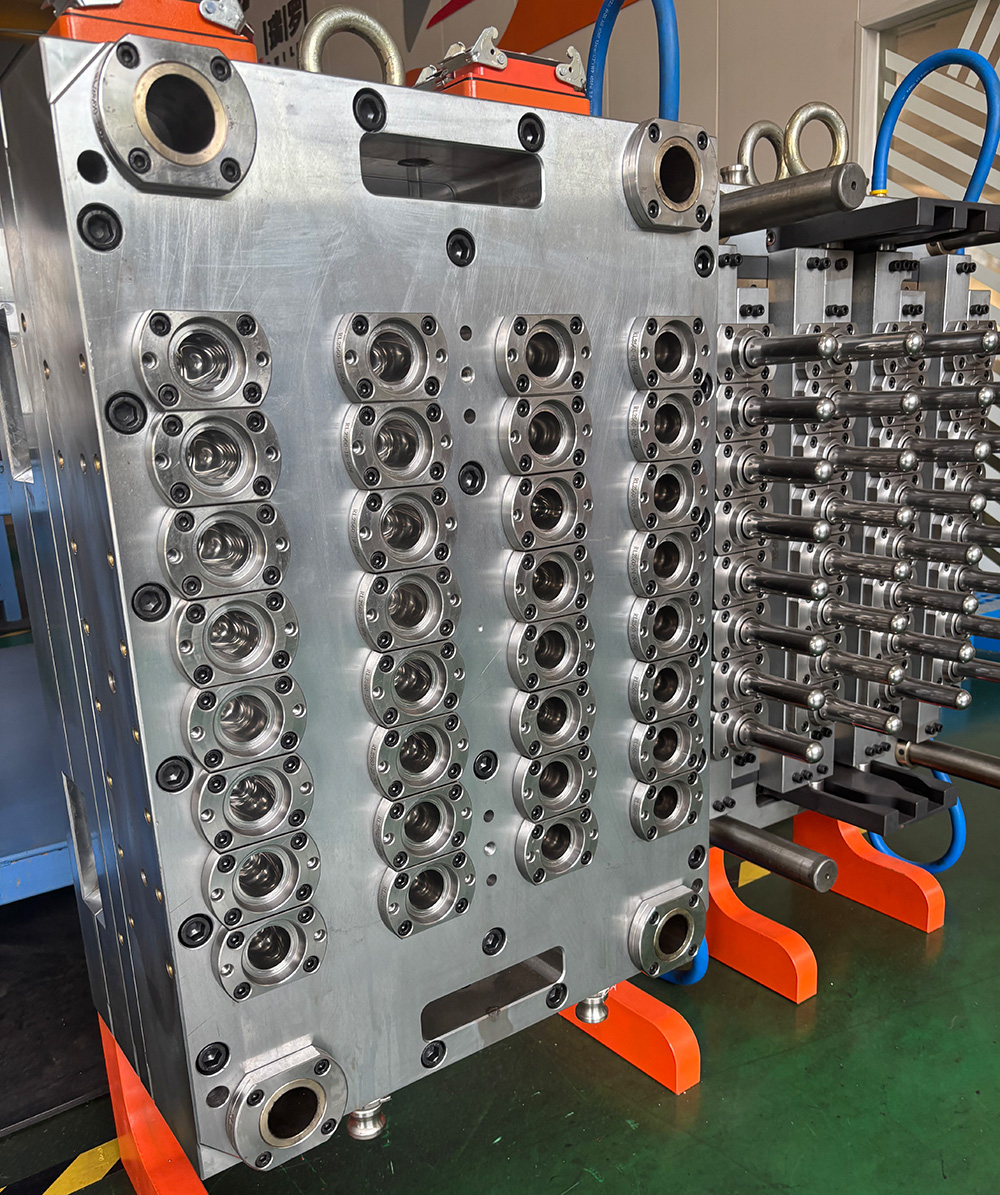

Advanced Preform Mold Technology, Gutewei Balanced Cavity Design, Consistent Preform Quality
In PET preform injection molding, consistency is everything. A mold that produces perfect preforms in cavity #1 but inconsistent preforms in cavity #48 is not a production tool — it is a quality control nightmare. Inconsistent preforms lead to blown bottles with uneven wall thickness, weak neck finishes, and higher reject rates downstream. That is why Gutewei invests in advanced preform mold technology centered on balanced cavity design — delivering consistent preform quality cavity after cavity, cycle after cycle.
What Is Cavity Balance and Why Does It Matter?
Cavity balance refers to the ability of a multi-cavity mold to produce identical preforms from every cavity. In a perfectly balanced mold:
| Parameter | Balanced Mold | Unbalanced Mold |
|---|---|---|
| Preform weight variation | ≤ 0.3% | 1–3% or higher |
| Wall thickness variation | ≤ 0.05mm | 0.15–0.30mm |
| Neck finish concentricity | ±0.02mm | ±0.08mm or worse |
| Reject rate at blow molding | < 0.5% | 2–5% |
| Material waste | Low | High |
Without balanced cavity design, your most expensive cavity sets the quality floor — and your reject rate determines your profitability.
What Causes Cavity Imbalance?
| Cause | Effect | Gutewei Solution |
|---|---|---|
| Uneven melt flow distribution | Some cavities fill faster/slower | Flow simulation optimized runner layout |
| Temperature variation across hot runner | Different melt viscosity per cavity | Individual nozzle temperature control ±1°C |
| Uneven cooling | Differential shrinkage, warpage | Conformal cooling with balanced circuits |
| Mechanical misalignment | Off-center cores, uneven wall thickness | CMM-verified assembly, dowel pin alignment |
| Pressure drop differences | Variable packing density | Symmetrical flow channel design |
Gutewei addresses each of these causes through advanced preform mold technology.
Gutewei Balanced Cavity Design: Technical Implementation
1. Flow Simulation and Runner Balancing
Every Gutewei multi-cavity preform mold begins with computational fluid dynamics (CFD) flow simulation. We model:
Melt flow front progression
Pressure drop from sprue to each gate
Shear rate and temperature profiles
Filling time variation across cavities
Target: Filling time variation ≤ 0.05 seconds across all cavities
2. Precision Machined Manifolds
The hot runner manifold is the distribution hub. Gutewei manifolds feature:
| Feature | Specification |
|---|---|
| Channel surface finish | RA ≤ 0.4μm |
| Channel symmetry | Mirror-image flow paths |
| Nozzle drop spacing | ±0.01mm positional accuracy |
| Material | Heat-treated stainless steel |
3. Individual Nozzle Temperature Control
Each hot runner nozzle has its own thermocouple and heater band. Gutewei systems maintain:
Setpoint accuracy: ±1°C
Nozzle-to-nozzle variation: ≤ 1.5°C
Response time: < 2 seconds to correct drift
4. Balanced Cooling Circuits
Uneven cooling creates differential shrinkage, which changes preform dimensions cavity by cavity. Gutewei cooling features:
Independent circuits for core and cavity plates
Flow-balanced channel design
Cavity-to-cavity temperature variation: ≤ 2°C
Thermal imaging verification before shipment
5. Cavity-to-Cavity Weight Validation
Every Gutewei mold comes with a cavity balance test report:
| Measurement | Gutewei Standard | Industry Average |
|---|---|---|
| Short-shot fill progression | Uniform across all cavities | Often uneven |
| Cavity weight variation | ≤ 0.3% | 0.8–1.5% |
| Sample size tested | 100 consecutive shots | 10–20 shots |
| Wall thickness check | 5 positions × all cavities | 1–2 positions, sampled cavities |
Consistent Preform Quality: What You Can Expect
When you run a Gutewei mold with balanced cavity design, you get:
Weight Consistency
| Cavity Count | Typical Weight Variation | Confidence Level |
|---|---|---|
| 32 cavities | ≤ 0.25% | 99% |
| 48 cavities | ≤ 0.30% | 99% |
| 72 cavities | ≤ 0.30% | 98% |
| 96 cavities | ≤ 0.35% | 98% |
| 144 cavities | ≤ 0.40% | 97% |
Wall Thickness Uniformity
| Preform Section | Gutewei Variation | Industry Typical |
|---|---|---|
| Neck finish | ±0.02mm | ±0.05–0.08mm |
| Body wall | ±0.03mm | ±0.08–0.12mm |
| Base (gate area) | ±0.04mm | ±0.10–0.15mm |
Visual Quality
No flow lines or blush marks
Crystal clear appearance (water-grade PET)
Consistent length and outside diameter
Advanced Preform Mold Technology: Beyond Cavity Balance
While cavity balance is central, Gutewei integrates additional advanced features:
1. Low Acetaldehyde (AA) Design
For sensitive beverages (water, CSD, tea), high AA levels cause taste issues. Gutewei hot runners feature:
Low-shear flow channels
Minimal residence time
No dead zones or stagnant melt areas
Result: AA levels consistently below 3 ppm (typical for beverage-grade PET).
2. Fast Color Change Capability
Color changes waste material and production time. Gutewei molds feature:
Purge-friendly manifold geometry
Removable nozzle tips for cleaning
Smooth flow paths with no ledges
Typical color change time: under 30 minutes for same-family colors.
3. Quick Neck Change System
Different bottle types require different neck finishes. Gutewei offers:
Interchangeable neck ring inserts
Changeover time: under 2 hours
No mold base modification required
Why Global Preform Manufacturers Choose Gutewei
| Buyer Need | Gutewei Solution |
|---|---|
| All cavities produce same preform | Balanced cavity design, ≤ 0.3% weight variation |
| Low reject rate at blow molding | Consistent preform geometry, ±0.02mm neck accuracy |
| High output with quality | Advanced cooling + balance = fast cycles + quality |
| Sensitive beverage compliance | Low AA hot runner design |
| Fast neck changeovers | Modular neck ring system |
| Long mold life | Hardened stainless steel, 15–20M cycles |
Real-World Performance: 96-Cavity Preform Mold
| Parameter | Before (Generic Mold) | After (Gutewei Balanced Mold) |
|---|---|---|
| Cavity count | 96 | 96 |
| Preform weight variation | 0.9% | 0.28% |
| Blow molding reject rate | 2.4% | 0.6% |
| AA level (ppm) | 5.2 ppm | 2.8 ppm |
| Annual material savings (waste reduction) | — | 28 metric tons |
| Payback period | — | 6 months |
Applications Best Suited for Gutewei Balanced Preform Molds
| Application | Why Balance Matters | Expected Weight Variation |
|---|---|---|
| High volume water bottling | Millions of preforms, small savings add up | ≤ 0.30% |
| Carbonated soft drinks | CSD requires precise neck and wall uniformity | ≤ 0.25% |
| Edible oil bottles | Thick wall, heavy preform, material cost high | ≤ 0.25% |
| Hot fill beverages | Heat set necks require consistency | ≤ 0.30% |
| Premium/cosmetic bottles | Visual perfection required | ≤ 0.20% |
| Export preform production | Customer specifications often demand balance | ≤ 0.30% |
Testing and Validation: Every Mold Certified
Before any Gutewei mold ships, it undergoes:
Cavity balance test – Weigh all cavities, document variation
Short-shot analysis – Verify fill progression
Wall thickness measurement – Check 5 positions on each cavity
Neck finish CMM inspection – Verify concentricity and dimensions
Thermal imaging – Confirm cooling uniformity
24-hour production run – Validate stability over time
You receive a Balance Certificate with every mold.
Ready for Consistent Preform Quality?
If your current multi-cavity preform mold produces preforms that vary from cavity to cavity — causing downstream rejects and material waste — it is time to upgrade to advanced preform mold technology from Gutewei. Our balanced cavity design delivers consistent preform quality that protects your blow molding line and your bottom line.
Contact Gutewei today with your preform specifications — target weight, neck finish, cavity count, and injection machine model. We will design a balanced cavity mold that produces uniform preforms, cavity after cavity.
