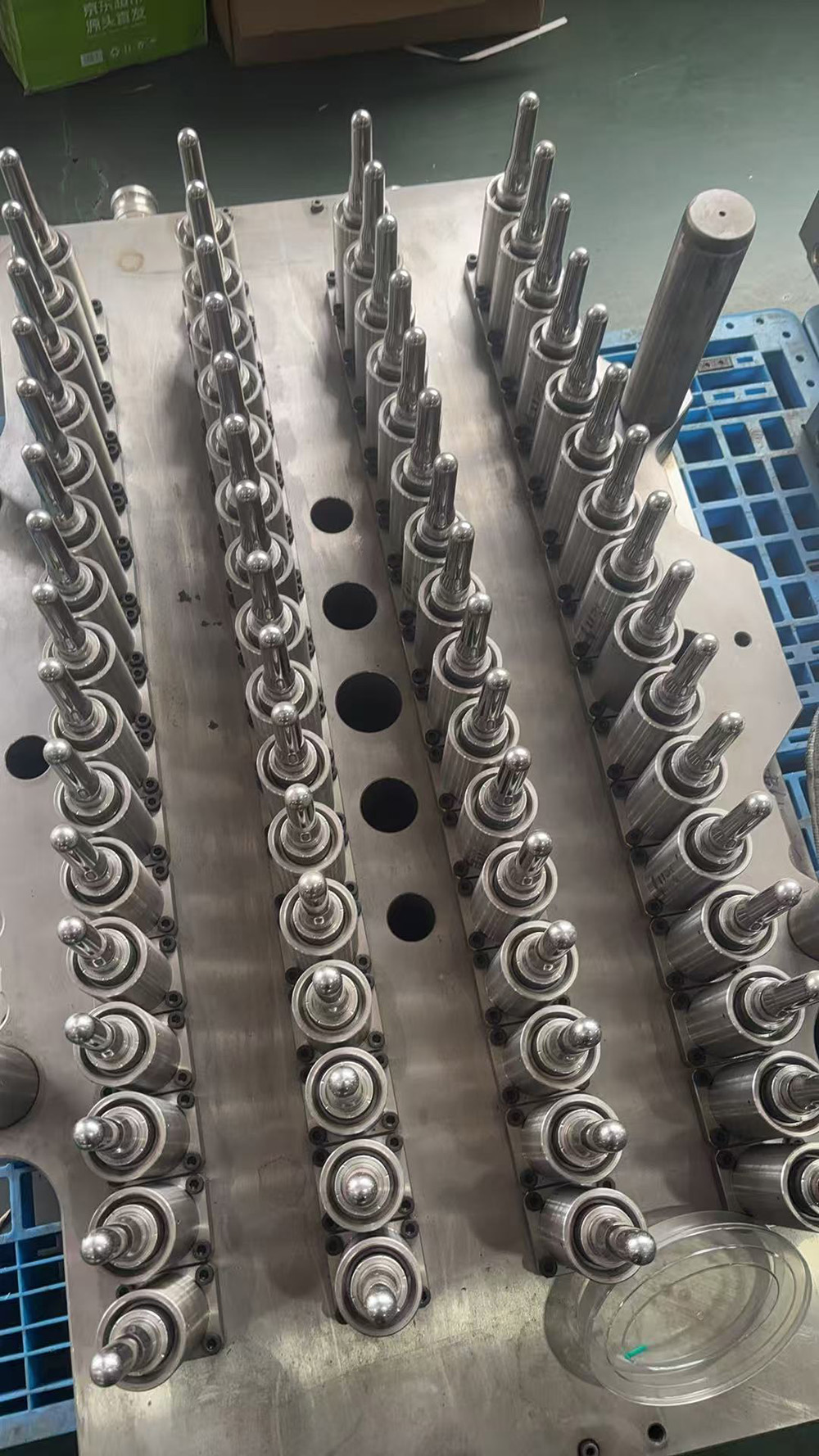

High Precision PET Preform Mold, Gutewei Multi Cavity Hot Runner, Reliable Bottle Preform Tooling
In PET bottle manufacturing, the preform determines everything. A preform with inconsistent wall thickness, uneven weight distribution, or a distorted neck finish will inevitably produce defective bottles — no matter how advanced your blow molding line is. That is why leading bottlers and preform manufacturers around the world choose Gutewei for high precision PET preform molds featuring advanced multi cavity hot runner systems — delivering reliable bottle preform tooling that performs cycle after cycle, year after year.
What Makes a Preform Mold “High Precision”?
Precision in preform molding is not a single feature. It is the result of multiple critical factors working together:
| Precision Factor | Gutewei Implementation | Benefit |
|---|---|---|
| Cavity dimensional accuracy | CNC machining with ±0.005mm tolerance | Identical preforms across all cavities |
| Surface finish | RA ≤ 0.02μm (mirror polish) | Clear, defect-free preform surface |
| Neck ring concentricity | ±0.02mm alignment | Perfect capping, no leakage |
| Core-cavity alignment | Micron-level positioning | Uniform wall thickness |
| Hot runner balance | Drop-to-drop variation ≤ 0.3% | Consistent weight across cavities |
When these factors are controlled, the result is a high precision PET preform mold that produces perfect preforms every cycle.
Gutewei Multi Cavity Hot Runner: Engineered for Consistency
The hot runner system is the heart of any multi-cavity preform mold. It delivers molten PET from the injection machine nozzle to each cavity gate. A poorly designed hot runner creates:
Weight variation between cavities
Short shots (incomplete preforms)
Flash (excess material at parting lines)
High acetaldehyde (AA) levels in sensitive applications
Key Features of Gutewei Hot Runner Systems
| Feature | Specification | Why It Matters |
|---|---|---|
| Balanced flow channels | Equal melt travel distance to all drops | Identical fill conditions per cavity |
| Low-shear geometry | Optimized flow path with no sharp corners | Prevents PET degradation, reduces AA |
| Individual nozzle temperature control | ±1°C per nozzle | Fine-tunes each cavity independently |
| Valve gate option | Precision needle valve | Cosmetically perfect neck finish, zero gate vestige |
| Fast color change design | Minimal dead zones | Reduced material waste during product changeover |
Hot Runner Configurations
| Cavity Count | Hot Runner Type | Typical Application |
|---|---|---|
| 32 – 48 cavities | Open gate or valve gate | Medium volume, standard water bottles |
| 72 – 96 cavities | Valve gate preferred | High volume, cosmetic neck requirement |
| 128 – 144 cavities | Advanced valve gate with flow simulation | Industrial scale, maximum output |
Reliable Bottle Preform Tooling: Built for Production
Reliability means your mold arrives on time, installs without issues, and produces saleable preforms from the first hour of operation. Gutewei reliable bottle preform tooling delivers through:
1. Robust Construction
Hardened stainless steel cores and cavities (S136, HRC 48–52)
Wear-resistant guide posts and bushings
Heavy-duty ejector plate with precision alignment
2. Proven Multi-Cavity Performance
Gutewei has delivered hundreds of multi-cavity preform molds globally, from 32 to 144 cavities, all validated with:
Cavity balance testing (weight variation ≤ 0.3%)
Short-shot analysis for fill uniformity
Thermal imaging for cooling consistency
3. Long Service Life
| Component | Gutewei Standard | Expected Life |
|---|---|---|
| Core and cavity | Hardened S136 stainless steel | 15–20 million cycles |
| Hot runner nozzles | Wear-resistant alloy | 10–15 million cycles |
| Guide components | Bronze bushed with hardened pins | 20+ million cycles |
| Ejector system | Precision ground, polished pins | 15–20 million cycles |
Quality Assurance: Every Mold Tested Before Shipping
Gutewei does not assume quality — we prove it. Every high precision PET preform mold undergoes rigorous testing before leaving our factory:
Pre-Delivery Inspection Checklist
| Test | Acceptance Standard |
|---|---|
| Cavity weight uniformity | Max variation ≤ 0.3% across all cavities |
| Wall thickness measurement | Checked at 3–5 positions per preform |
| Neck finish dimension | ±0.02mm of drawing specification |
| Hot runner temperature uniformity | ±1°C across all nozzles |
| Cooling circuit flow test | Each circuit within 5% of design flow |
| 24-hour continuous run test | No unexpected stops, stable quality |
Only molds that pass all tests receive a Gutewei certificate of conformance.
Why Global Preform Manufacturers Choose Gutewei
| Buyer Requirement | Gutewei Solution |
|---|---|
| Consistent preform weight across cavities | Cavity balance ≤ 0.3% variation |
| Low acetaldehyde (AA) for sensitive beverages | Low-shear hot runner design |
| Fast color change capability | Minimal dead zone hot runner |
| Long mold life in 24/7 operation | Hardened stainless steel, 15–20M cycles |
| Compatibility with existing injection machine | Custom interface for Husky, Netstal, Engel, Sumitomo, Haitian |
| Export-ready documentation | Complete drawings, spare parts list, test reports |
Applications for Gutewei High Precision Preform Molds
| Bottle Type | Preform Weight | Neck Finish | Gutewei Mold Feature |
|---|---|---|---|
| 0.33L – 0.5L water | 12g – 16g | PCO 1881 | High cavitation (96–144), fast cycle |
| 1L – 1.5L water | 20g – 28g | PCO 1881 | Balanced cooling, 72–96 cavities |
| 0.5L – 2L CSD | 22g – 48g | PCO 1881 / ALCO | Valve gate, reinforced neck |
| 1L – 5L edible oil | 38g – 80g | 38mm / 48mm | Thick wall, heavy duty cores |
| Hot fill (juice/tea) | 24g – 36g | Heat set neck | Crystallization-capable design |
Case Example: 72-Cavity Water Preform Mold
| Parameter | Conventional Mold | Gutewei High Precision Mold |
|---|---|---|
| Cavity count | 72 | 72 |
| Preform weight variation | ±0.8% | ±0.25% |
| Cycle time | 9.5 seconds | 8.2 seconds |
| Reject rate | 1.5% | 0.5% |
| Annual output (24/7) | 265M preforms | 307M preforms |
| Additional preforms/year | — | 42 million |
Installation and Support
Every Gutewei reliable bottle preform tooling shipment includes:
2D and 3D mold drawings
Installation manual and startup guide
Recommended process parameters (temperatures, pressures, cooling settings)
Spare parts list with part numbers
24/7 technical support via email, video call, or on-site visit
Ready for a Preform Mold That Delivers?
If you are looking for a high precision PET preform mold with advanced multi cavity hot runner technology from a reliable bottle preform tooling supplier, Gutewei is your partner.
Contact Gutewei today with your preform specifications — target weight, neck finish, cavity count, and injection machine model. We will provide a custom mold solution engineered for your production goals.
