In high-volume PET bottle production, cooling is the bottleneck. The faster your blow mold can remove heat from the stretched PET, the faster your machine cycles — and the more bottles you produce per hour. That is why Gutewei invests in advanced blow mold technology with proprietary cooling system design to deliver high speed bottle mold export solutions to bottlers worldwide.

Why Cooling Defines Blow Mold Speed

During the stretch blow molding process, hot PET (around 100°C) contacts the mold cavity wall, which is typically chilled to 8–12°C. Heat transfers from the bottle to the mold, and then to the cooling water. Until the bottle cools enough to hold its shape without deformation, the mold cannot open.

Every second saved in cooling is one more bottle per cavity per minute.

Conventional blow molds use straight-drilled cooling channels. Gutewei uses advanced blow mold technology to go far beyond this limitation.

Gutewei Cooling System Design: The Technical Advantage

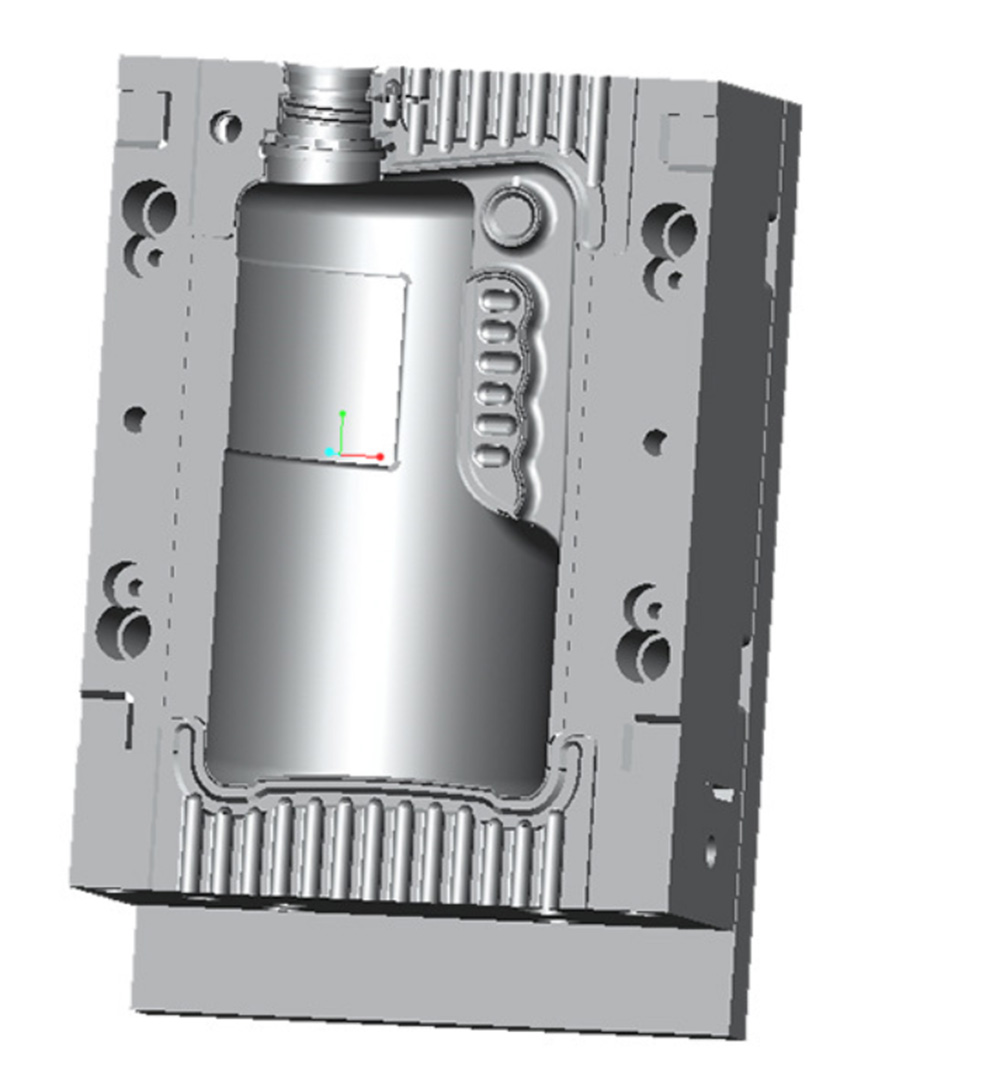

1. Conformal Cooling Channels

Unlike straight drilled lines that stay a fixed distance from the cavity surface, Gutewei conformal cooling channels follow the actual contour of the bottle. This means:

• Consistent distance from cavity wall (typically 8–12mm)

• No hot spots around complex areas (base, neck, handle)

• Uniform temperature across the entire cavity surface

2. High Turbulence Water Flow

Smooth water flow creates a boundary layer that insulates the mold from cooling. Gutewei designs cooling circuits with:

• Turbulence-inducing geometries at every turn

• Flow rate optimized for Reynolds number > 10,000

• Result: heat transfer coefficient increased by 30–40%

3. Independent Cavity Cooling

On multi-cavity molds, each cavity has its own balanced cooling circuit. Cavity-to-cavity temperature variation is held to ±1.5°C, eliminating differential cooling that causes warpage or cycle time extension.

4. Fast Connector Systems

Gutewei molds feature quick-disconnect water manifolds. Mold changes take under 10 minutes, including cooling line connections.

Performance Results: High Speed Bottle Mold Export in Action

A 1-second reduction in cycle time on a 4-cavity mold running 24/7 equals over 1.1 million additional bottles per year.

Advanced Blow Mold Technology Beyond Cooling

While cooling is critical, Gutewei integrates multiple advanced features into every high speed bottle mold:

Precision Venting

High speed molding requires rapid air evacuation during stretch. Gutewei molds incorporate vent channels at the base and shoulder areas, preventing trapped air that causes burn marks or incomplete filling.

Wear-Resistant Materials

High cycle counts accelerate wear. Gutewei uses hardened stainless steel (HRC 48–52) for cavity surfaces, with replaceable wear plates at all friction points.

Optimized Neck Ring Design

The neck ring is the most stressed area during mold opening. Gutewei’s neck ring geometry balances clamping force and release smoothness, preventing neck deformation even at high speeds.

Why Global Buyers Choose Gutewei for High Speed Bottle Mold Export

Applications Best Suited for Gutewei High Speed Molds

• High-volume water bottlers – 0.33L to 2L, 4 to 48 cavities

• Carbonated soft drink producers – CSD-grade neck reinforcement + fast cooling

• Beverage contract packers – quick changeover between bottle types

• Export-oriented bottle manufacturers – reliable molds for remote locations

Ready to Accelerate Your Bottle Production?

If your current blow molds are limiting your line speed, it is time to upgrade to advanced blow mold technology from Gutewei. Our cooling system design is proven to cut cycle times by 15–25% while maintaining bottle quality.

Contact Gutewei today to discuss your high speed bottle mold export requirements. Send us your bottle drawing and machine model — we will provide a cooling-optimized mold solution.
