In PET bottle manufacturing, the blow molding process is only as good as the preform that feeds it. Inconsistent preform wall thickness, poor neck finish accuracy, or hidden stress points can lead to blown bottles with pinholes, uneven expansion, or even complete blow-out failures. The result? Lower output, higher material waste, and increased production costs.

That is why Gutewei engineers its PET preform molds with two clear goals: maximize cavity output while minimizing per-unit waste — ensuring your blow molding line runs smoothly, bottle after bottle.

How Gutewei Preform Molds Deliver High Output

1. High Cavitation, Stable Cycle Times

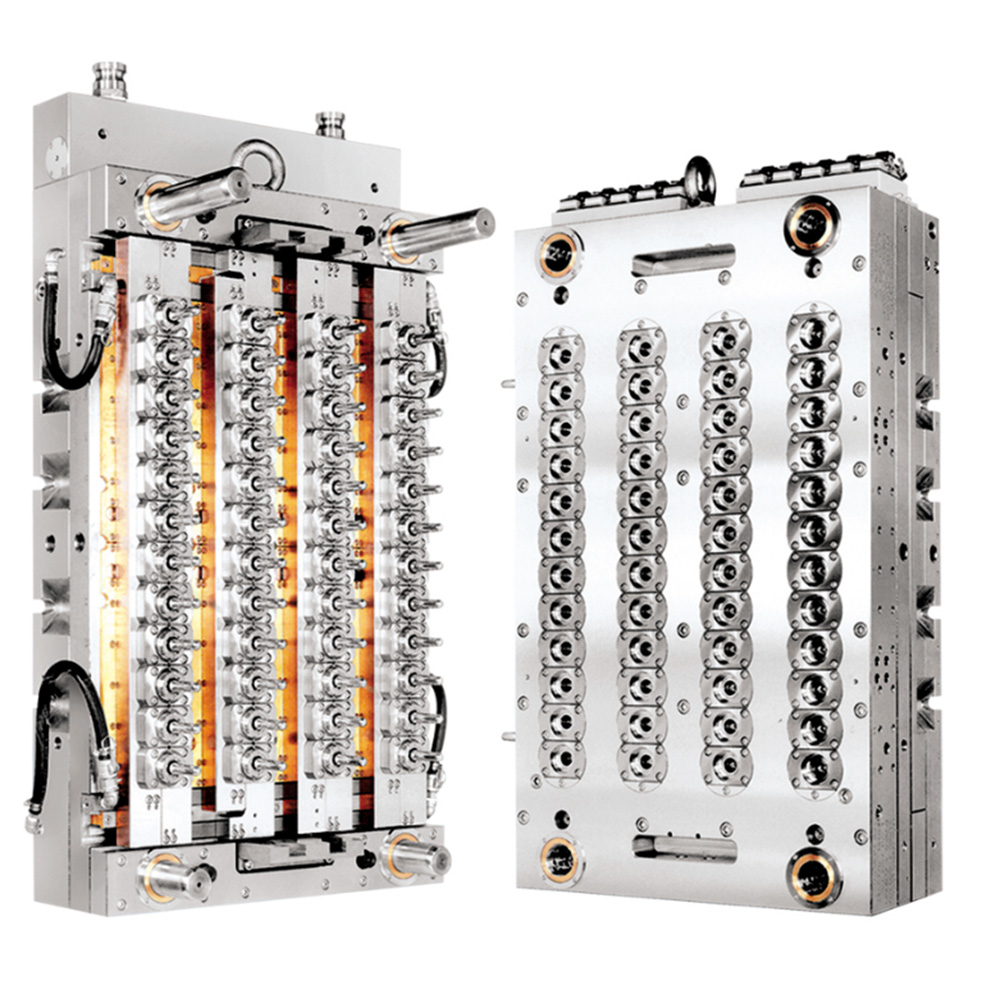

Gutewei offers high cavitation PET preform molds ranging from 48 to 144 cavities. With balanced hot runner systems and optimized cooling channels, each cavity fills and cools uniformly, allowing you to run shorter injection cycles without sacrificing preform quality — directly boosting your hourly output.

2. Precision Machining for Consistent Preform Geometry

Every preform cavity in a Gutewei mold is CNC-machined and polished to micron-level tolerances. This ensures:

• Identical wall thickness distribution across all cavities

• Concentric neck finishes for perfect blow pin sealing

• Smooth inner and outer surfaces for even stretch-blow distribution

Consistent preforms mean fewer rejected bottles during blow molding — and higher effective output.

How Gutewei Preform Molds Reduce Waste

1. Minimized Short Shots and Flash

Poorly balanced hot runners or worn venting can cause short shots (incomplete preforms) or flash (excess PET at parting lines). Gutewei molds feature precision-gapped venting and individually adjustable hot runner nozzles, dramatically reducing both defect types.

2. Lower Startup Scrap

Mold temperature inconsistencies during startup generate scrap preforms. Gutewei’s conformal cooling design brings the mold to thermal equilibrium faster, reducing startup waste by up to 40% compared to conventional mold designs.

3. Extended Mold Life for Less Downtime

Gutewei uses hardened stainless steel (e.g., S136, 2316) for core and cavity plates, plus wear-resistant guide components. A longer-lasting mold means fewer unplanned stops, less scrap from worn cavities, and lower total cost per thousand preforms.

Safeguarding Your Entire Blow Molding Production

When your blow molding line runs with Gutewei PET preform molds, you gain:

• Predictable preform quality – batch after batch, month after month

• Lower material cost per bottle – less waste, more saleable bottles

• Higher line uptime – fewer blow molding rejects and machine stops

• Energy savings – consistent preforms allow blow molders to optimize heating profiles

Real-World Performance

One Gutewei customer producing 500ml water bottles switched from a generic 72-cavity mold to a Gutewei 96-cavity high-output mold. Results:

• Output increased by 28% (same injection press)

• Blow molding reject rate dropped from 2.1% to 0.7%

• Annual material savings – over 18 metric tons of PET resin

Ready to Boost Your Blow Molding Efficiency?

If your current preform molds are holding back your production line — through inconsistent quality, high scrap rates, or slow cycles — it is time to talk to Gutewei.

We design and build high output, low waste PET preform molds that safeguard your blow molding operation from preform to finished bottle.

Contact Gutewei today for a custom mold proposal tailored to your bottle type, machine specification, and output targets.
