In the competitive world of PET packaging, production capacity and product quality are not opposing forces—they are twin pillars of manufacturing success. Yet achieving both simultaneously becomes exponentially more challenging as cavity counts increase.

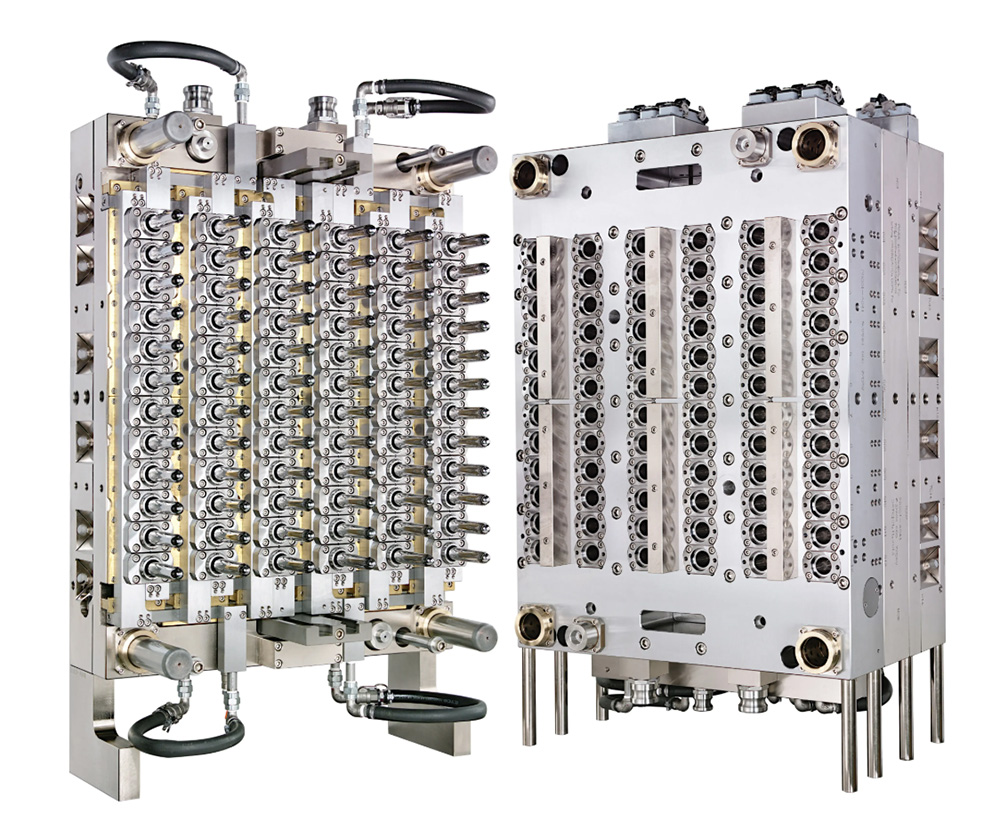

A 72-cavity preform mold represents a significant leap forward in productivity. With the potential to produce tens of thousands of preforms per hour, it offers manufacturers a powerful tool for meeting growing market demand. However, with 72 cavities comes 72 opportunities for variation—and 72 potential sources of defects.

At Gutewei, we have mastered this challenge. Our 72-cavity PET preform molds are engineered to deliver exceptional production capacity without compromising cavity-to-cavity consistency or preform quality. This article explores the technology and engineering principles that make this possible.

The 72-Cavity Advantage: Why Go High?

Before diving into the technology, it is worth understanding why 72-cavity molds are increasingly the choice of leading preform manufacturers.

However, these benefits are only realized if the mold delivers consistent quality across all 72 cavities. A mold that produces 50% more preforms but with higher rejection rates delivers no net benefit.

The 72-Cavity Challenge: Complexity Multiplied

Moving from 48 to 72 cavities introduces several critical challenges:

Gutewei's 72-cavity mold technology addresses each of these challenges through integrated design, precision manufacturing, and advanced engineering.

Technology 1: Balanced Hot Runner Systems

The foundation of any high-cavity mold is the hot runner system. In a 72-cavity mold, even minor flow imbalances can result in:

• Preform weight variations across cavities

• Inconsistent wall thickness affecting blow molding

• Residual stress leading to preform deformation

• Increased rejection rates and material waste

Gutewei's Balanced Flow Technology

Geometrically Balanced Flow Channels:
Our hot runner systems feature flow channels designed to ensure equal melt travel distance to every cavity. This eliminates preferential filling and ensures that each preform receives the same material volume and pressure.

Individual Nozzle Temperature Control:
Each of the 72 nozzles has independent temperature control, allowing fine-tuning of melt viscosity to compensate for any minor variations in thermal conditions.

Valve Gate Technology:
Gutewei's 72-cavity molds utilize precision valve gate systems that provide:

• Clean, consistent gate marks that stretch uniformly during blow molding

• Precise control of packing pressure to each cavity

• Reduced shear stress compared to thermal gates

Melt Flow Simulation:
Before manufacturing, we use advanced CAE (computer-aided engineering) software to simulate the filling process across all 72 cavities, identifying and eliminating potential imbalances before steel is cut.

Technology 2: Advanced Conformal Cooling

Cooling accounts for 70–80% of the injection molding cycle time. In a 72-cavity mold, cooling must be exceptionally uniform to prevent:

• Warpage that causes preform eccentricity

• Crystallization in the gate area (gate blush)

• Residual stress leading to inconsistent blow molding

• Extended cycle times reducing productivity

Gutewei's Cooling Technology

Conformal Cooling Channels:
Unlike traditional straight-drilled cooling lines, Gutewei's 72-cavity molds feature conformal cooling channels that follow the exact contour of the preform cavity. This allows heat to be extracted uniformly from the preform's neck, body, and gate area simultaneously.

Zone-Specific Cooling Circuits:
The 72 cavities are divided into independent cooling zones, allowing precise temperature control tailored to each region:

CFD-Optimized Design:
We use computational fluid dynamics (CFD) to model coolant flow, temperature distribution, and heat transfer across all 72 cavities, ensuring optimal channel placement and flow rates.

Cooling Performance:

Technology 3: Precision Manufacturing for Cavity Consistency

In a 72-cavity mold, all cavities must be identical—and "almost identical" is not good enough. Gutewei achieves cavity-to-cavity precision through:

Advanced Manufacturing Capabilities

High-Speed 5-Axis CNC Machining:

• Positioning accuracy: ±0.005mm (5 microns)

• Surface finish: Ra 0.2–0.4μm on cavity surfaces

• Cavity-to-cavity variation: ≤0.005mm

Single-Setup Machining:
Where possible, all 72 cavities are machined in the same setup to eliminate variation that can occur between different machining operations.

CMM Verification:
Every cavity is verified using coordinate measuring machines (CMM) with:

• Full dimensional inspection against CAD model

• Statistical analysis of cavity-to-cavity variation

• Documentation of all measurements for traceability

Cavity Interchangeability

Gutewei's 72-cavity molds feature interchangeable cavity inserts, allowing:

• Easy replacement of individual cavities if damaged

• Quick changeovers for different preform designs

• Reduced spare parts inventory with standardized components

Technology 4: Robust Mold Construction

A 72-cavity mold must withstand the demands of continuous high-speed production. Gutewei's molds are built for durability:

Heavy-Duty Mold Base

• High-strength steel base (P20, 50C, or stainless)

• Stress-relieved construction to prevent distortion

• Flatness within 0.02mm per meter

Precision Alignment Systems

• Guide pins and bushings for accurate mold closure

• Locking mechanisms to prevent movement during injection

• Wear-resistant components for long-term alignment accuracy

Modular Design

• Easy access for maintenance and cleaning

• Quick-change components to minimize downtime

• Standardized interfaces for compatibility with major injection molding machines

Technology 5: Comprehensive Quality Assurance

Every Gutewei 72-cavity mold undergoes rigorous testing before delivery:

Phase 1: Design Validation

• Mold flow analysis for 72 cavities

• Cooling simulation for uniform temperature

• Structural analysis for durability

Phase 2: Manufacturing Validation

• CMM inspection of every cavity

• Surface finish verification

• Cavity-to-cavity comparison

Phase 3: Assembly and Testing

• Flow testing of all cooling circuits

• Leak testing of hot runner system

• Mold closure verification

Phase 4: Trial Runs

• On-site or in-house testing with actual production conditions

• Preform weight verification across all 72 cavities

• Dimensional inspection of sample preforms

• Process parameter documentation

Real-World Performance: What Gutewei Customers Experience

Manufacturers using Gutewei 72-cavity preform molds consistently report:

Case Study: High-Volume Water Bottle Production

Challenge: A major bottled water producer needed to increase production capacity by 50% while maintaining strict quality standards and reducing per-unit costs.

Gutewei Solution:

• 72-cavity preform mold with conformal cooling

• Valve gate hot runner system with individual temperature control

• Beryllium copper gate inserts for rapid gate cooling

• Comprehensive process support during installation

Results:

• Output increased by 65% with same machine footprint

• Cycle time reduced from 14 seconds to 10.5 seconds

• Rejection rate decreased from 3.5% to 0.8%

• Material savings of 8% through optimized gate design

• ROI achieved within 11 months

Process Optimization for 72-Cavity Molds

Even the best mold requires proper processing to achieve optimal results. Gutewei provides comprehensive process support:

Recommended Parameters

Process Monitoring

Gutewei recommends monitoring key parameters to maintain consistency:

• Cavity pressure for each zone

• Melt temperature at injection

• Coolant temperature and flow rate

• Preform weight from representative cavities

Maintenance Guidelines for Long Life

To maximize the life of a 72-cavity mold, Gutewei recommends:

Spare Parts Recommendation:

• Gate tips and seals for each cavity

• Ejector pins (10–20% of total)

• Heaters and thermocouples (10% of total)

• Guide pins and bushings (complete set)

Conclusion: High Output, Consistent Quality

The 72-cavity preform mold represents the pinnacle of PET packaging productivity. But productivity without quality is meaningless. At Gutewei, we have dedicated ourselves to mastering the balance between ultra-high output and cavity-to-cavity consistency.

Through balanced hot runner systems, advanced conformal cooling, precision manufacturing, robust construction, and comprehensive quality assurance, our 72-cavity molds deliver the performance that leading preform manufacturers demand.

Whether you are expanding capacity, replacing aging equipment, or entering new markets, Gutewei's 72-cavity PET preform molds provide the productivity, quality, and reliability you need to succeed.

Choose Gutewei. Choose high output without compromise.
