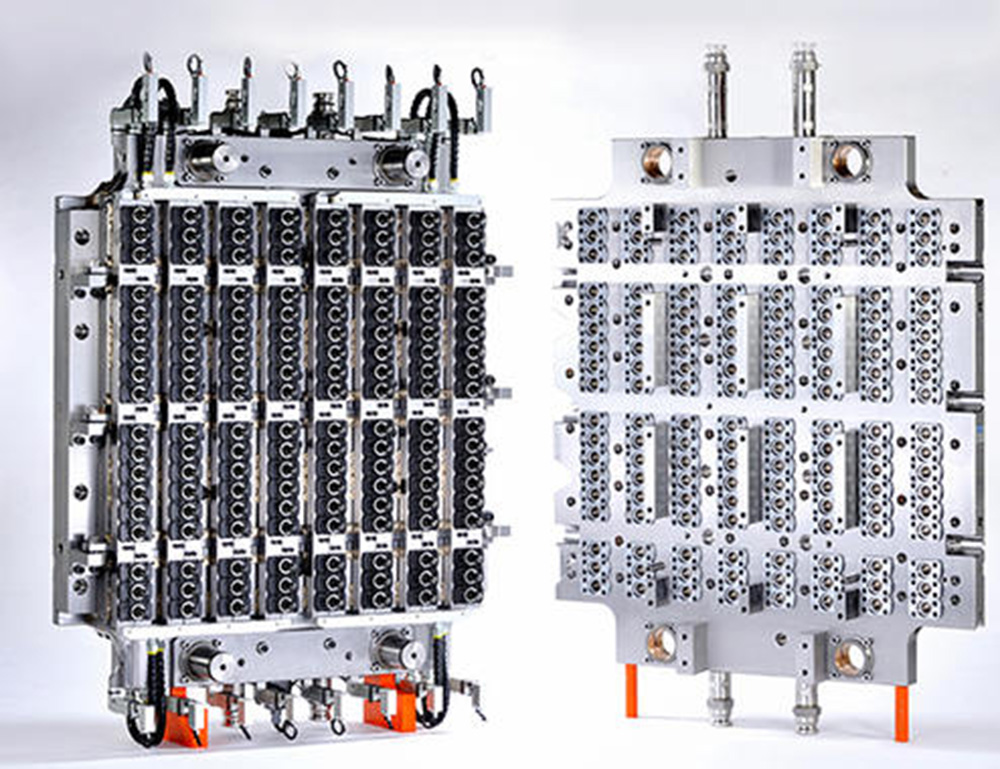

In the world of injection mold manufacturing, consistency is everything. When a mold has 48, 72, or even 96 cavities, each cavity must produce parts that are identical in dimension, weight, and quality. Even a slight variation between cavities can lead to:

• Inconsistent part quality across production runs

• Increased rejection rates and material waste

• Customer complaints and damaged reputation

• Production inefficiencies and higher costs

At Gutewei, we understand that precision is not a matter of chance—it is the result of a systematic, disciplined approach to quality control. This article explores how Gutewei's comprehensive quality management system ensures that every cavity in every mold delivers consistent precision, from design through delivery and beyond.

The Challenge: Achieving Cavity-to-Cavity Consistency

Multi-cavity molds present unique quality challenges:

• Geometric variations between cavities due to manufacturing tolerances

• Dimensional discrepancies that compound during injection molding

• Surface finish differences affecting part appearance and release

• Cooling channel variations leading to uneven thermal performance

• Flow imbalance causing inconsistent filling and packing

To overcome these challenges, Gutewei has developed a comprehensive quality control system that addresses every stage of the mold manufacturing process.

The Gutewei Quality Control System: A Stage-by-Stage Approach

Our quality control system is built on four pillars: Design Validation, Precision Manufacturing, Metrology Verification, and Process Validation. Each stage incorporates rigorous checks and balances to ensure cavity-to-cavity consistency.

Stage 1: Design Validation

Quality begins long before any steel is cut. In the design phase, Gutewei engineers employ advanced tools to validate that the mold design will deliver consistent performance across all cavities.

CAE Flow Analysis

Using computer-aided engineering (CAE) software, we simulate the injection molding process to:

• Verify balanced melt flow across all cavities

• Identify and eliminate flow imbalances

• Optimize gate placement and runner geometry

• Predict filling patterns and pressure distribution

Thermal Analysis

We perform computational fluid dynamics (CFD) analysis to:

• Design conformal cooling channels for uniform heat extraction

• Ensure consistent cooling across all cavities

• Prevent hotspots and thermal gradients that cause warpage

DFM Review

Our Design for Manufacturability (DFM) process ensures:

• Manufacturing tolerances are achievable

• Inspection points are accessible

• Assembly requirements are clearly defined

Deliverable: A validated mold design with documented quality targets for every cavity.

Stage 2: Precision Manufacturing

During manufacturing, Gutewei employs state-of-the-art equipment and processes to achieve the precision required for consistent cavities.

High-Speed CNC Machining

Our 5-axis CNC machining centers achieve:

• Positioning accuracy within ±0.005mm

• Surface finishes as fine as Ra 0.2μm

• Complex geometries with micron-level precision

EDM (Electrical Discharge Machining)

For intricate cavity details, we utilize:

• CNC EDM machines with automatic electrode changers

• Precision electrode manufacturing with dedicated quality checks

• Consistent spark erosion across all cavities

In-Process Inspection

Throughout manufacturing, we conduct:

• First-piece inspection to verify initial accuracy

• In-process checks at critical machining stages

• Operator self-inspection with documented results

Stage 3: Metrology Verification

Metrology is the heart of our quality control system. Gutewei employs advanced measurement technologies to verify that every cavity meets specifications.

CMM (Coordinate Measuring Machine) Inspection

Our high-precision CMM with temperature-controlled environment provides:

• Full dimensional inspection of every cavity

• Comparison to CAD models with color-coded deviation maps

• Statistical analysis of cavity-to-cavity variation

Optical Measurement

For complex geometries and surface features:

• Non-contact optical scanners capture detailed contours

• Surface finish measurement verifies texture and polish

• Gate and ejector pin positions are precisely verified

Cavity-to-Cavity Comparison

We perform systematic comparison of all cavities:

• Dimensional analysis to identify outliers

• Geometric tolerancing (GD&T) verification

• Statistical process control (SPC) to track consistency

Stage 4: Process Validation

A mold may measure perfectly but still perform inconsistently. That is why Gutewei validates each mold under actual production conditions.

Trial Runs

We conduct comprehensive mold trials to verify:

• Cycle time consistency across cavities

• Part weight variation (target: ±0.5% or less)

• Dimensional stability over continuous runs

• Ejection reliability for all cavities

Part Inspection

During trials, we inspect:

• First-shot parts from every cavity

• Stability samples at regular intervals

• Capability studies (Cpk) to verify process capability

Process Optimization

Our technicians work to:

• Optimize injection parameters for balanced filling

• Fine-tune cooling for uniform heat extraction

• Document optimal settings for customer reference

Deliverable: A validated mold with documented process parameters and quality data.

Advanced Quality Tools at Gutewei

Beyond our stage-by-stage approach, Gutewei employs specialized tools to ensure cavity-to-cavity consistency:

Statistical Process Control (SPC)

We track key quality metrics across production:

• Control charts to monitor cavity dimensions

• Trend analysis to detect process shifts

• Capability indices (Cpk ≥ 1.33 as standard)

Traceability System

Every Gutewei mold component is tracked:

• Unique serial numbers for cavities and cores

• Manufacturing history documented

• Inspection records maintained for traceability

Calibration Program

All measurement equipment undergoes:

• Regular calibration to certified standards

• Traceable to international standards (ISO/IEC 17025)

• Documented calibration history

Environmental Control

Our inspection laboratory features:

• Temperature-controlled environment (20°C ± 1°C)

• Vibration-isolated measurement tables

• Controlled humidity for stable conditions

Quality Certifications and Standards

Gutewei operates under rigorous quality management systems:

The Gutewei Quality Culture

At Gutewei, quality is not just a department—it is a company-wide commitment. Our quality culture is built on:

Employee Training

• Continuous training in quality principles

• Certified measurement technicians

• Cross-functional quality awareness

Continuous Improvement

• Regular quality audits (internal and external)

• Root cause analysis for any non-conformance

• Corrective and preventive action (CAPA) system

Customer Focus

• Customer-specific quality requirements documented

• Collaborative quality planning

• Transparent quality reporting

Real-World Results: What Gutewei Customers Experience

Manufacturers who partner with Gutewei consistently report:

Conclusion: Consistency Through Systematic Quality

In the demanding world of injection molding, cavity-to-cavity consistency is not optional—it is essential. At Gutewei, we achieve this consistency through a comprehensive, stage-by-stage quality control system that encompasses design validation, precision manufacturing, advanced metrology, and thorough process validation.

From ISO-certified processes to state-of-the-art measurement technology and a company-wide commitment to quality, Gutewei delivers molds that perform consistently—cavity after cavity, shot after shot, year after year.

Whether you need multi-cavity molds for packaging, automotive, medical, or consumer products, Gutewei has the quality systems and expertise to ensure every cavity meets the same exacting standards.

Choose Gutewei. Choose precision. Choose consistency.
