GTW Machinery: Professional Manufacturer of Preform Molds

GTW Machinery is a leading manufacturer and supplier of high-precision preform molds for the global packaging industry. Specializing exclusively in the design and production of advanced PET preform tooling, we provide comprehensive, customized solutions for manufacturers worldwide. With years of technical expertise and a strong commitment to research and development, we offer state-of-the-art molds that enable customers to produce high-quality preforms for a diverse range of bottle shapes and applications.

PET Preform Molds for Various Shapes: Versatile Tooling for Diverse Container Designs

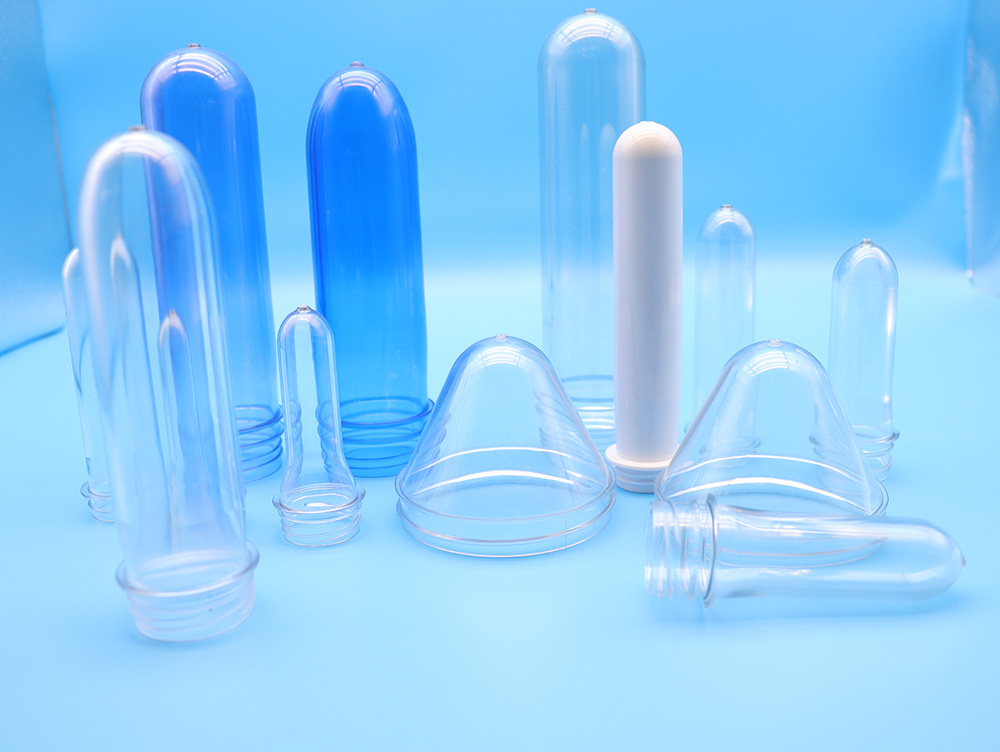

GTW Machinery proudly presents our comprehensive range of PET Preform Molds for Various Shapes—precision-engineered tooling solutions designed to accommodate the growing demand for distinctive container designs. While standard cylindrical preforms serve the majority of packaging applications, shaped preforms are essential for producing bottles with oval, square, rectangular, flat, or other non-round cross-sections . Our advanced molds enable manufacturers to create distinctive packaging that stands out on retail shelves while maintaining the performance benefits of PET.

Key Features

1. Versatile Shape Capabilities

Our preform molds are engineered to produce preforms for a wide variety of container shapes:

2. Advanced Mold Design for Complex Geometries

The mold design is the key factor in determining the final shape of the preform . GTW utilizes modern computer-aided design (CAD) and computer-aided manufacturing (CAM) technologies to create highly complex and customized mold designs . Key features include:

• Precision cavity machining achieving micron-level accuracy for consistent preform dimensions

• Optimized material flow analysis ensuring uniform filling of complex cavity geometries

• Controlled wall thickness distribution critical for successful blow molding of non-round containers

• Advanced dipole taper localization technique ensuring each cavity self-clamps independently for perfect concentricity

3. Premium Material Construction

GTW molds are constructed from the highest quality materials for extended mold life:

• Mold life: Engineered for 2-3+ million injection cycles with proper maintenance

4. Advanced Hot Runner Systems

Our shaped preform molds feature state-of-the-art valve gate hot runner technology:

• Individual temperature control for each nozzle with independent thermocouples

• Balanced filling across all cavities ensuring consistent preform weight and dimensions

• Valve gate design with automatic drop eliminates tail trimming, saving labor costs

• Weight difference between cavities: Maintained below 0.3 grams

5. Precision Engineering for Complex Shapes

• Wall thickness variation: Maintained below 0.10mm between maximum and minimum sections

• Concentricity control: Advanced alignment ensures uniform material distribution for successful blow molding

• Weight consistency: Less than 0.3g variation across cavities

Technical Specifications

Shape-Specific Engineering Considerations

Oval Preforms
For producing oval bottles with consistent wall thickness, our molds incorporate specialized design features that optimize material distribution during the stretch blow molding process .

Square and Rectangular Preforms
These molds require careful attention to corner radii and material distribution to ensure uniform wall thickness in the final container.

Flat Preforms
Designed for slim, portable bottle configurations with controlled material flow to maintain structural integrity.

Custom Brand-Specific Shapes
GTW offers full customization of preform shape to match your brand identity and product requirements . We can design molds that produce preforms with unique curves, ridges, or even brand-specific logos embossed on the surface .

Applications Across Industries

Beverage Industry

• Distinctive water bottles with ergonomic grip features

• Carbonated soft drinks with unique brand-identified shapes

• Juice and sports drink containers requiring visual differentiation

Food Packaging

• Edible oil bottles with easy-pour designs

• Sauce and condiment containers with distinctive profiles

• Premium food packaging for brand enhancement

Personal Care and Cosmetics

• Shampoo and conditioner bottles with ergonomic curves

• Lotion containers with premium aesthetic appeal

• Cosmetic packaging requiring distinctive brand identity

Household Products

• Detergent bottles with functional grip designs

• Cleaning solution containers optimized for handling

Quality Assurance

Every GTW shaped preform mold undergoes rigorous quality testing before shipment:

• CMM inspection verifying all critical dimensions to micron accuracy

• Sample production for customer approval

• Mold flow analysis verification

• Detailed documentation including maintenance guides and spare parts lists

Why Choose GTW for Shaped Preform Molds?

• Shape versatility: Expertise in producing molds for round, oval, square, and custom container designs

• Precision engineering: Wall thickness control within 0.10mm ensuring successful blow molding

• Premium materials: S136 steel construction for extended mold life

• Advanced hot runner technology: Valve gate systems with individual temperature control

• Customization capabilities: Tailored solutions for specific shape requirements

• Proven reliability: Molds engineered for millions of injection cycles

• Comprehensive support: Design consultation, installation guidance, and after-sales service

Partner with GTW for Versatile Preform Mold Solutions

GTW Machinery's PET Preform Molds for Various Shapes represent the ideal solution for manufacturers seeking to differentiate their products through distinctive container designs. By combining precision engineering, advanced hot runner technology, premium materials, and shape-specific expertise, we help our customers achieve superior brand presence and market competitiveness.

Contact GTW Machinery today to discuss your shaped preform mold requirements and discover how our versatile solutions can enhance your manufacturing operations.
