Executive Summary & Industry Overview

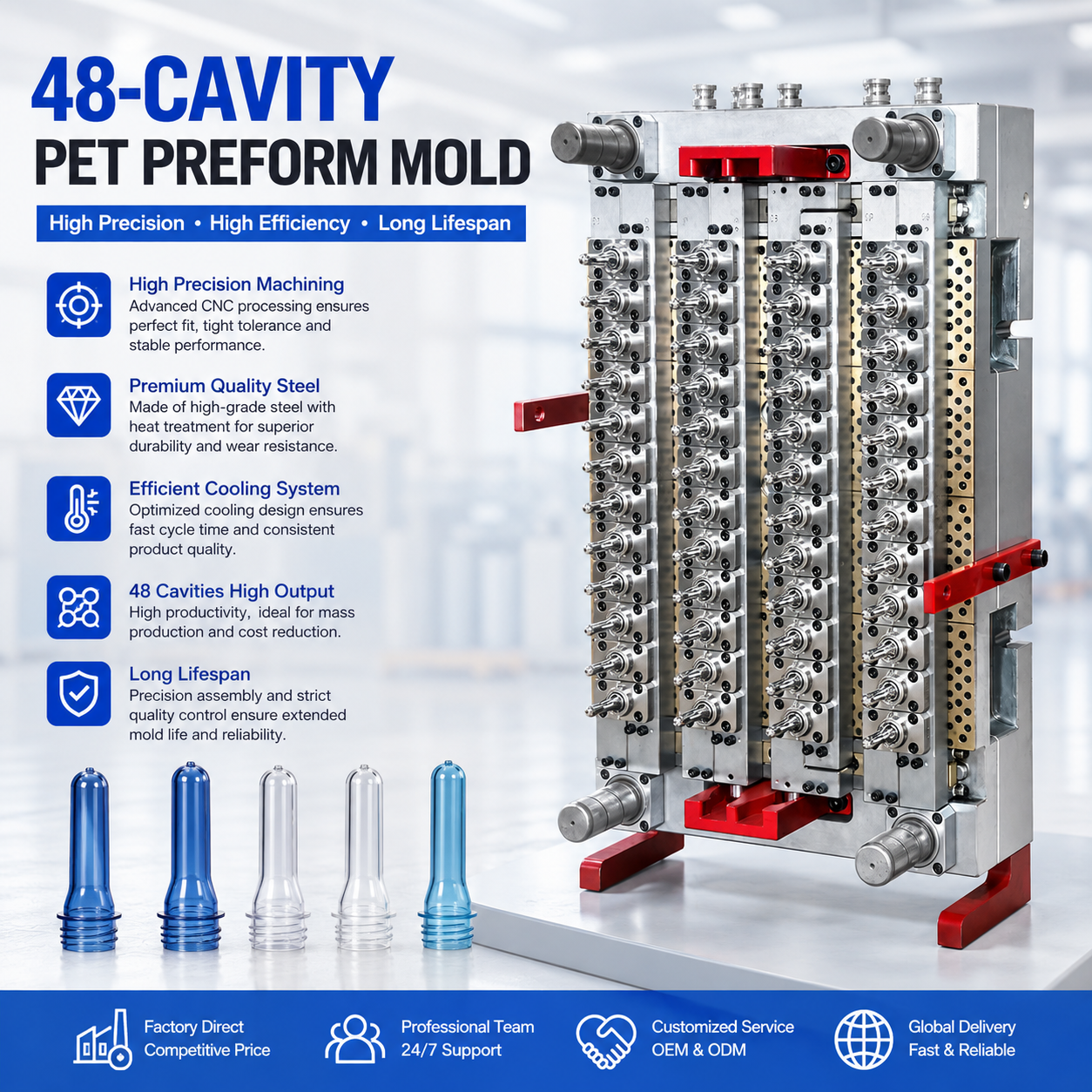

In high-speed PET bottle packaging operations, overall equipment effectiveness (OEE) and unit cost reductions are governed by two key metrics: cycle time efficiency and dimensional repeatability. The 48 Cavity PET Preform Mould engineered by GUTEWEI Mould is designed specifically for high-speed automated injection molding systems (producing over 12,000 to 18,000 preforms per hour). By integrating patented labyrinth rapid cooling channels, sub-micron double-cone alignment, and a zero-leakage valve-gated hot runner system, GUTEWEI solves the critical engineering bottlenecks of thermal buildup, wall-thickness eccentricity, and Acetaldehyde (AA) degradation.
1. Key Challenges in High-Speed 48-Cavity PET Preform Production
Scaling up to a 48-cavity configuration on a high-speed injection line introduces intense thermal and mechanical stress. Standard molds often fail to maintain uniform quality across all 48 cavities due to three primary engineering hurdles:
- Thermal Asymmetry: In unevenly cooled molds, outer cavities cool slower than inner cavities, resulting in preform warpage, inconsistent wall thickness, and extended cycle times.
- Acetaldehyde (AA) Generation: Excessive thermal history or shear rate during resin conveyance increases AA content, impacting taste profiles in mineral water and carbonated soft drink (CSD) applications.
- Clamping Alignment & Wear: Continuous operation at high speeds (under 10-14 seconds cycle time) causes mechanical fatigue on neck rings and cores if alignment relies solely on basic guide pins.
2. Metallurgical Selection & Structural Precision Engineering
To withstand continuous multi-million shot lifecycles under extreme pressure, GUTEWEI Mould enforces strict material selection and heat-treatment standards across every component of the 48-cavity mold:
Swedish S136 Stainless Steel Cores & Cavities
All core and cavity inserts are forged from imported Swedish S136 ESR ultra-pure stainless steel. Through vacuum heat treatment, parts achieve a core hardness of HRC 52–54, delivering superior corrosion resistance against resin volatiles and exceptional wear resistance during fast mold opening and closing cycles.
Double-Cone Taper Lock Alignment System
GUTEWEI replaces conventional single-taper alignment with a proprietary double-cone taper lock mechanism at the neck ring interface. This ensures sub-micron alignment precision within ±0.01 mm across all 48 cavities. Wall thickness eccentricity is restricted to ≤0.05 mm, eliminating thin-wall blowout defects during subsequent stretch blow molding.
Advanced Wear-Resistant Neck Ring Coating
The neck ring splits undergo specialized surface nitriding and wear-resistant titanium-based coating, elevating surface hardness up to HRC 70. This extends the operational lifespan of the neck ring to over 30 million cycles without flash formation or dimensional drift.
3. Thermal Dynamics: Patented Labyrinth Cooling Technology
Cooling accounts for nearly 60% to 70% of the total PET injection cycle time. Accelerating heat dissipation while ensuring thermal uniformity is the core of GUTEWEI's engineering approach.
Traditional spiral cooling channels often suffer from pressure drops and stagnant fluid boundary layers. GUTEWEI incorporates a patented Labyrinth Water Channel System within the cavity and core inserts:
- 30% Higher Heat Transfer Efficiency: Labyrinth turbulence breaks the thermal boundary layer, transferring thermal energy out of the molten PET instantly.
- Conformal Neck Ring Cooling: Dedicated cooling loops pass directly through the neck finish block, protecting thread geometry and preventing neck shrinkage or deformation upon ejection.
- Cycle Time Reduction: Enables reliable production cycles as fast as 8.5 to 11.5 seconds (depending on preform weight and neck design, such as PCO 1881 or 29/25).
4. High-Precision Valve-Gated Hot Runner System
A high-speed 48-cavity mould requires absolute balance in melt delivery. GUTEWEI's hot runner manifold is milled on high-precision 5-axis CNC machining centers and engineered with key performance characteristics:
- Symmetric Natural Balance Flow Channels: Ensures equal flow path length, melt shear rate, and pressure drop from the main sprue to each of the 48 nozzle tips.
- Precise Thermal Control (±0.5°C): Integrated dual-pin thermocouple sensors and German/Canadian heating elements maintain tight temperature uniformity, preventing localized overheating and keeping AA levels below industry standards.
- Elastic Flow Channel Sealing Technology: Eliminates leakage between the nozzle holder and hot runner manifold under thermal expansion, dramatically reducing maintenance downtime.
- Clean Pin Gate Cut-off: Pneumatically operated valve pins ensure a clean, smooth gate stub with no stringing or tailing, crucial for high-speed optical inspection systems.
5. Technical Specifications & Compatibility Matrix
The following table outlines the standardized engineering parameters for GUTEWEI's 48 Cavity PET Preform Mould:
| Parameter Specification | Technical Detail / Engineering Value |
|---|---|
| Cavity Layout | 48 Cavities (4 × 12 Matrix Layout) |
| Supported Neck Finish Standards | PCO 1881, PCO 1810, 29/25, 30/25, 38mm 3-Start, 45mm, Custom Sizes |
| Preform Weight Compatibility | 14g – 55g (Standard); up to 88g (Customized) |
| Core & Cavity Steel | Swedish S136 ESR Stainless Steel (HRC 52–54) |
| Mold Plate Material | 4Cr13 Pre-hardened Stainless Steel (HRC > 32) |
| Machining Precision | Cavity Tolerance ±0.005 mm; Concentricity ≤0.03 mm |
| Cooling Design | Patented Labyrinth Rapid Circulation System |
| Hot Runner System | Independent Valve Gate Hot Runner (Temp control ±0.05°C to ±0.5°C) |
| Target Production Cycle Time | 9.0 – 12.5 seconds (Application dependent) |
| Tool Life Guarantee | 30 Million Shots (with recommended PM schedule) |
| Machine Compatibility | 1:1 drop-in adaptation for Husky, Netstal, KraussMaffei, Huayan, Demag, etc. |
6. Total Cost of Ownership (TCO) & ROI Advantage
Investing in GUTEWEI's 48 Cavity PET Preform Tooling provides measurable financial returns for high-volume bottling plants and OEM converters:
- Production Output Enhancement: Reducing cycle time by just 1.5 seconds on a 48-cavity line yields over 1.5 to 2.2 million additional preforms per month.
- Energy & Resin Savings: Optimized runner diameters and uniform thermal distribution reduce injection pressure requirements by 10–15%, lowering hydraulic/electric power usage. Lightweight preform engineering reduces resin consumption by 5-8% without sacrificing top-load strength.
- 60% Lower Maintenance Overhead: Self-lubricating guide bushings, HRC 70 neck rings, and durable cylinder seals extend preventative maintenance intervals from 6 months to 24 months.
7. Why Partner with GUTEWEI Mould?
As a specialized PET preform mould solution provider based in Taizhou, Zhejiang, GUTEWEI Mould provides a full lifecycle partnership:
- Turnkey Mold Engineering: From 3D bottle prototyping and lightweighting analysis to mold flow simulation and CNC fabrication.
- Rigorous CMM & Trial Verification: Every 48-cavity mould undergoes full CMM dimensional checks, water pressure testing, and factory injection trial runs before shipment. Complete trial reports and sample preforms are provided for client sign-off.
- Global System Interoperability: Seamless integration with existing customer hot runner temperature controllers and robot take-out systems.
