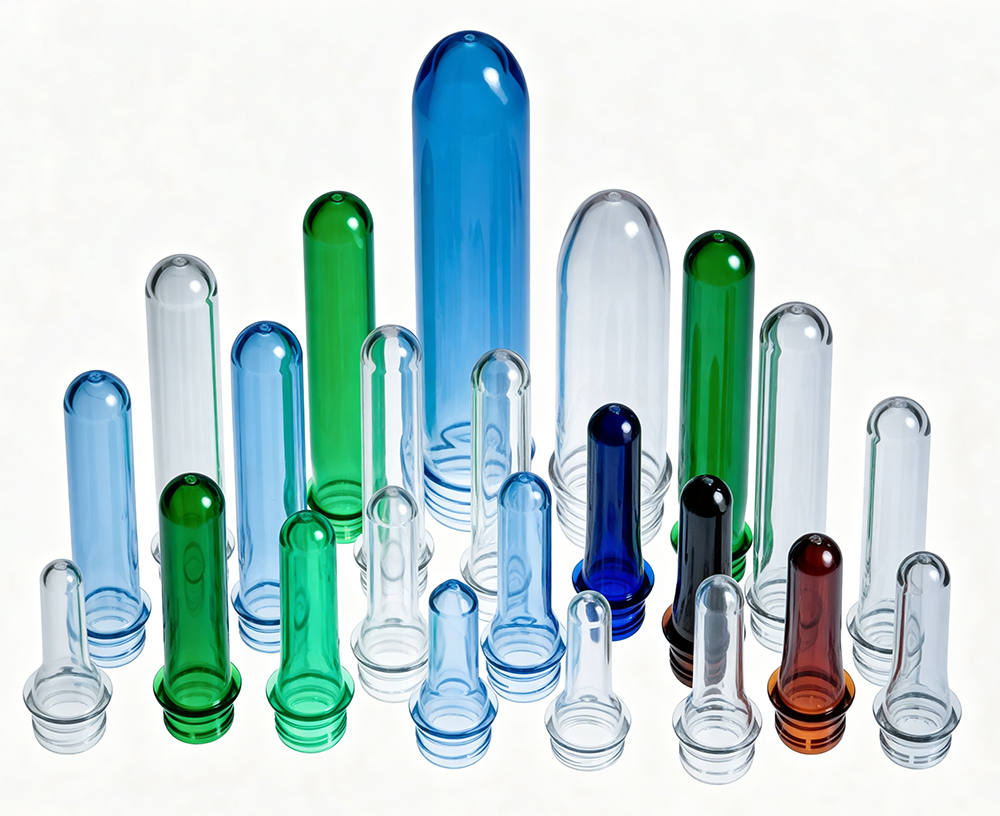

48 Cavity PET Preform Mould for High-Speed Production Lines: A Deep Technical Analysis by GTWMOULD

In the high-volume beverage, food, and personal care packaging industries, production efficiency and unit-cost optimization are the ultimate benchmarks of success. At the heart of this manufacturing ecosystem is the PET preform injection molding process.

As a leading global specialist in PET preform mold engineering, GTWMOULD delivers state-of-the-art tooling solutions engineered to meet the rigorous demands of modern, automated manufacturing. This technical analysis explores the engineering breakthroughs, thermal dynamics, and material science integrated into our 48 Cavity PET Preform Mould for High-Speed Production Lines, demonstrating why it stands as the industry benchmark for high-throughput, low-scrap operations.

1. Advanced Hot Runner System: Achieving Thermal and Rheological Balance

For a 48-cavity system operating at high cycle speeds, maintaining absolute thermal and rheological balance across all cavities is critical. Minor temperature or pressure variations can lead to weight deviations, high Acetaldehyde (AA) levels, or gate defects.

Valve Gate Technology

GTWMOULD utilizes a pneumatically actuated valve gate hot runner system. Unlike thermal gates, valve gates offer:

  • Clean Gate Cut-Off: Eliminates preform tailing, stringing, and drooling, ensuring a seamless bottom profile essential for downstream blow molding.

  • Reduced Stress: Lower injection pressure drops across the manifold prevent shear-induced degradation of the PET material.

Balanced Flow Manifold Design

Our manifolds are designed using advanced finite element analysis (FEA) to ensure that the melt path length, diameter, and heating zones are perfectly symmetrical. The heating elements are strategically zoned with closed-loop PID controllers to maintain a uniform temperature profile, keeping AA generation to an absolute minimum.

2. Dynamic Thermal Management: The Key to Fast Cycle Times

In high-speed production, the cooling phase typically accounts for over 60% of the total cycle time. Optimizing heat transfer is therefore the primary mechanism for increasing hourly output.

+-------------------------------------------------------------------+
|                     GTWMOULD Cooling Parameters                   |
+--------------------------+----------------------------------------+
| Cooling Channel Geometry | Spiral-wound, high-velocity channels   |
+--------------------------+----------------------------------------+
| Core & Cavity Material   | High-conductivity Beryllium-Copper     |
+--------------------------+----------------------------------------+
| Target Cycle Time        | Sub-10 seconds (depending on weight)   |
+--------------------------+----------------------------------------+

Innovative Cooling Geometry

  • Spiral Cooling Channels: Rather than standard straight-drilled lines, GTWMOULD incorporates spiral-wound cooling channels that wrap closely around the cavity insert and neck ring. This maximizes the heat transfer surface area.

  • Beryllium-Copper (BeCu) Inserts: Highly conductive copper alloy inserts are strategically pressed into the neck splits and core tips. BeCu dissipates heat up to ten times faster than tool steel, rapidly solidifying the thread and gate areas—the two thickest parts of a preform.

3. Precision Engineering: Concentricity and Wear Resistance

High-cavitation moulds running continuously on high-speed injection molding machines (such as Husky, Netstal, or premium Chinese platforms) require extreme dimensional stability.

Dual-Taper Positioning System

To prevent wall thickness eccentricity—which causes uneven stretch blow molding downstream—our 48-cavity mould features a dual-taper self-locking positioning system. The core and cavity inserts are independently aligned and locked during mould closure.

This keeps the preform wall-thickness tolerance strictly within:

$$\Delta t \le 0.05 \text{ mm}$$

Material Selection and Surface Treatments

Long-term reliability is guaranteed through premium alloy selection:

  • Mould Base: Plate plates are made of pre-hardened stainless steel (typically 4CR13 or AISI 420) to prevent corrosion from condensation in chilled-water environments.

  • Cores, Cavities, and Neck Rings: Manufactured from high-grade Swedish S136 stainless steel, heat-treated to a hardness of $48\text{--}52 \text{ HRC}$ to resist wear from the highly abrasive PET resin.

  • Sliding Components: Friction surfaces are coated with titanium nitride (TiN) or Diamond-Like Carbon (DLC) to run smoothly without lubrication, preventing preform contamination.

4. Maintenance-Centric Design for Maximum Uptime

High-speed production lines cannot afford prolonged downtime. GTWMOULD designs with the maintenance technician in mind:

  • Interchangeable Parts: Every core, cavity, and neck split is machined to sub-micron tolerances on ultra-precision CNC centers, making them 100% interchangeable without requiring manual fitting or grinding.

  • Quick-Change Components: Wear components, such as nozzle tips and gate inserts, can be easily replaced while the mould remains clamped in the machine, reducing maintenance windows from days to hours.

Conclusion: Partnering with GTWMOULD

Operating a 48 Cavity PET Preform Mould on a high-speed line is a delicate balance of speed, precision, and durability. By integrating advanced hot runner balance, accelerated cooling dynamics, and robust material finishes, GTWMOULD delivers a tooling solution that lowers the Total Cost of Ownership (TCO) and guarantees maximum yield.

As China’s premier PET preform mould specialist, GTWMOULD doesn't just sell tooling; we engineer complete production efficiency.
